Honeywell FC‑TIDI‑1624 |Digital Input Module Price Advantage Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell FC-TIDI-1624

Product origin：USA

Dimensions:265  × 70  × 48 mm

Weight:0.6 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

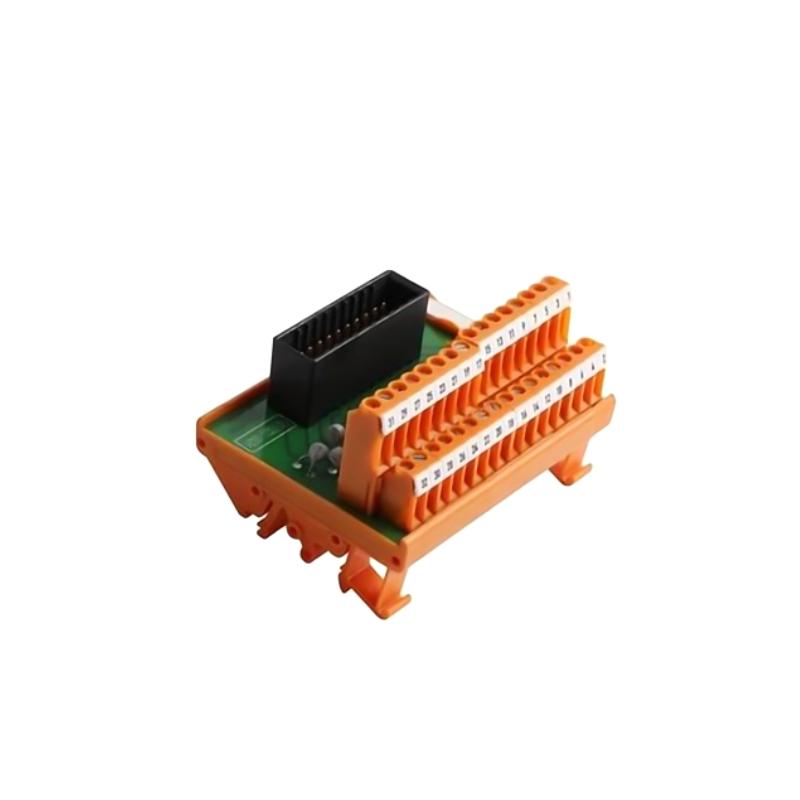

The FC‑TIDI‑1624 is a 16‑channel isolated passive digital input field termination assembly designed for 24 V DC input systems in industrial automation. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC‑TIDI‑1624
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Digital Input Module (Field Termination Assembly)
Channels: 16 isolated input channels
Function: Accepts multiple 24 V DC discrete inputs and provides secure field wiring termination with isolation for a control system

Power Specifications
Input Voltage: 24 V DC nominal
Input Pick‑up Voltage: ~17.5 V DC
Input Drop‑out Voltage: ~2.8 V DC minimum
Maximum Allowable Field Voltage: ~47.5 V DC
Typical Input Current: ~9 mA at 24 V DC
Withstanding Voltage: 1000 V AC isolation between input and output domains

Communication & Interface
Signal Type: Discrete digital inputs (24 V DC)
Interface Role: Provides field termination and input channel isolation for control system backplane modules
Channel Isolation: Between inputs, and between input to system reference
Terminal Type: Screw terminals for field wiring
Mounting: DIN rail / cabinet field termination assembly

Environmental
Operating Temperature: ‑20 °C to +70 °C
Storage Temperature: ‑40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack

Dimensions & Weight
Dimensions (L × W × H): Approx. 265  × 70  × 48 mm
Weight: ~0.6 kg

We provide authentic original products, with large stock and active support all day.

This product has flexible delivery arrangements, suitable for rapid deployment needs, and supports tiered quotations for large purchases.
