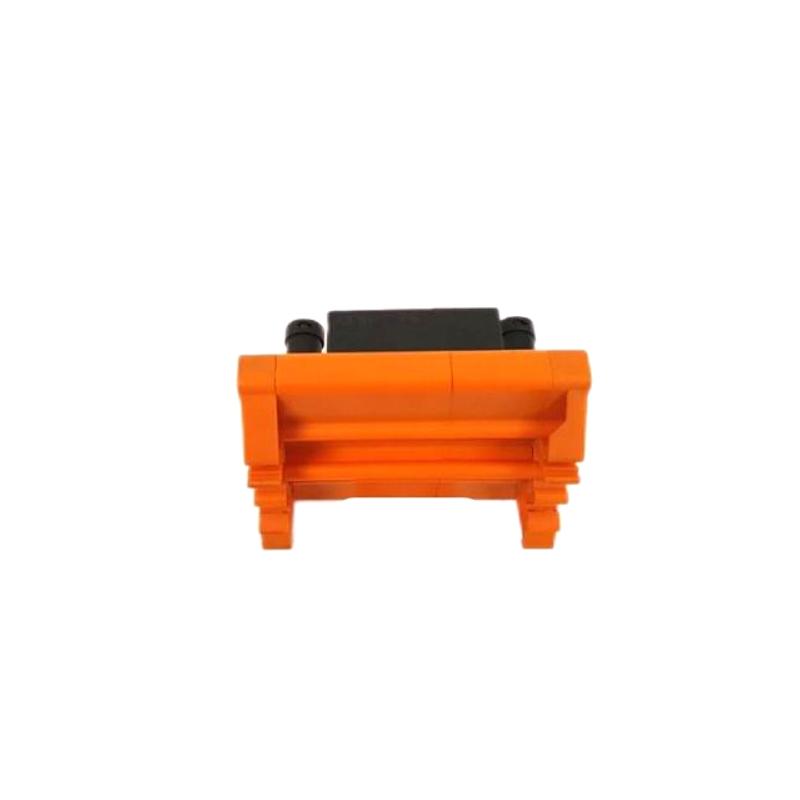

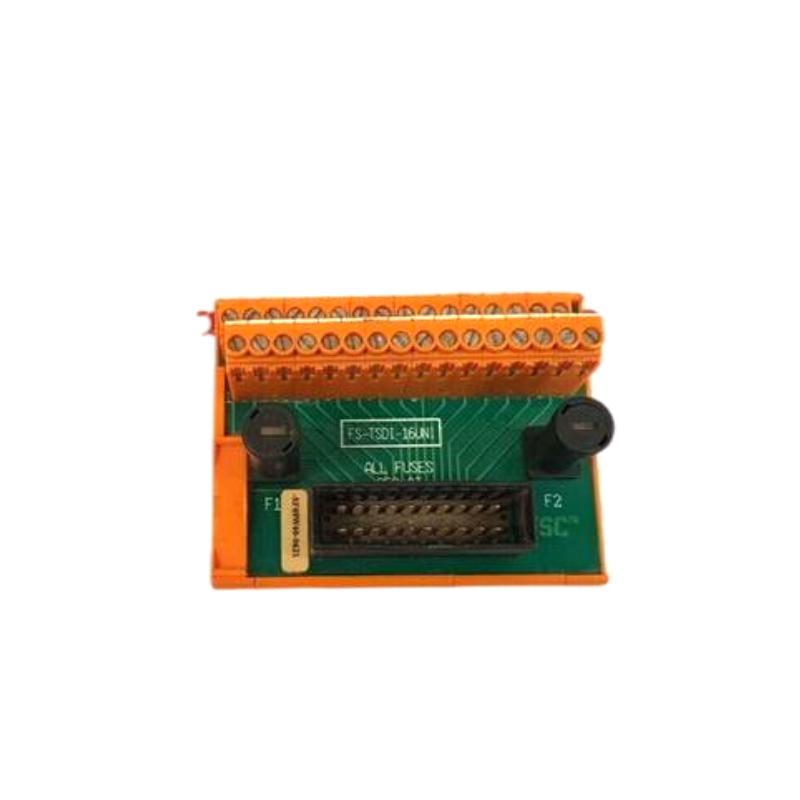

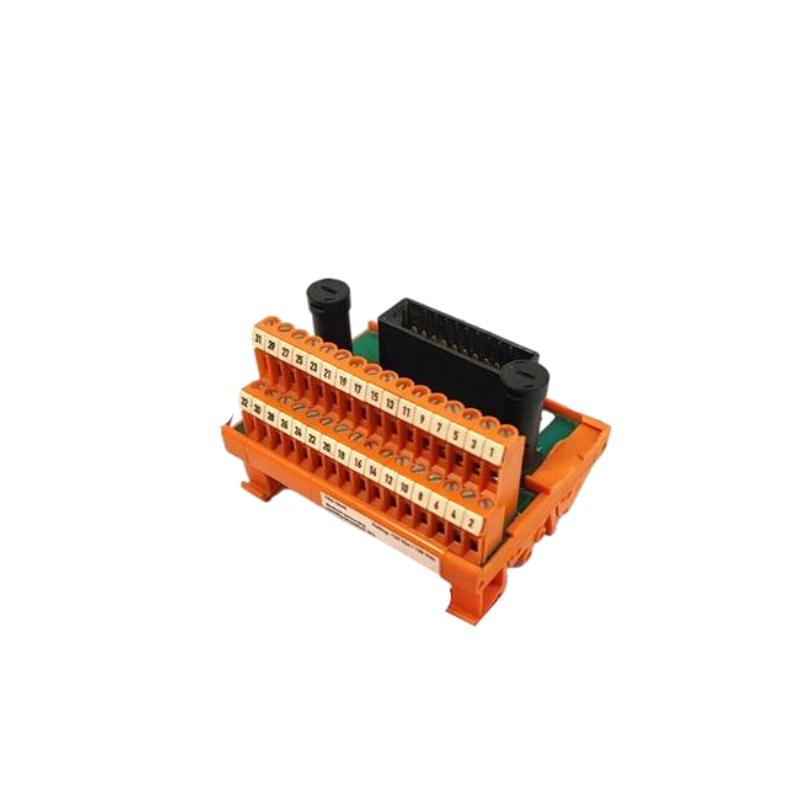

Honeywell FC‑TSDI‑16115 | Digital Input Module Price Advantage Unbelievable Prices!

Brand：Honeywell DCS

Item No.：Honeywell FC-TSDI-16115

Product origin：USA

Dimensions:300 × 109 × 68 mm

Weight:0.65 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The FC‑TSDI‑16115 is a 16‑channel safe digital input field‑termination assembly for Honeywell Safety Manager systems. It handles 115 V AC/DC inputs with galvanic isolation. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC‑TSDI‑16115
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Safe Digital Input Module
Channels: 16
Function: Converts field 115 V AC/DC signals into isolated safe logic inputs

Power Specifications
Input Voltage: 115 V AC/DC (–15% to +30%)
Input Current: ~7.5 mA at 115 V nominal
Input Impedance: > 9 kΩ
Isolation: ≥ 2000 V between input and system

Communication & Interface
Signal Type: Digital AC/DC input
Connections: Screw terminals, 2 groups of 8 channels; DIN‑rail mountable
Diagnostics: Galvanic isolation ensures safe connection to controller

Environmental
Operating Temperature: Up to +50 °C (115 V nominal)
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing

Dimensions & Weight
Dimensions: 300 × 109 × 68 mm
Weight: ~0.65 kg

Get genuine brand-new products today, available in stock with fast and accurate pricing.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
