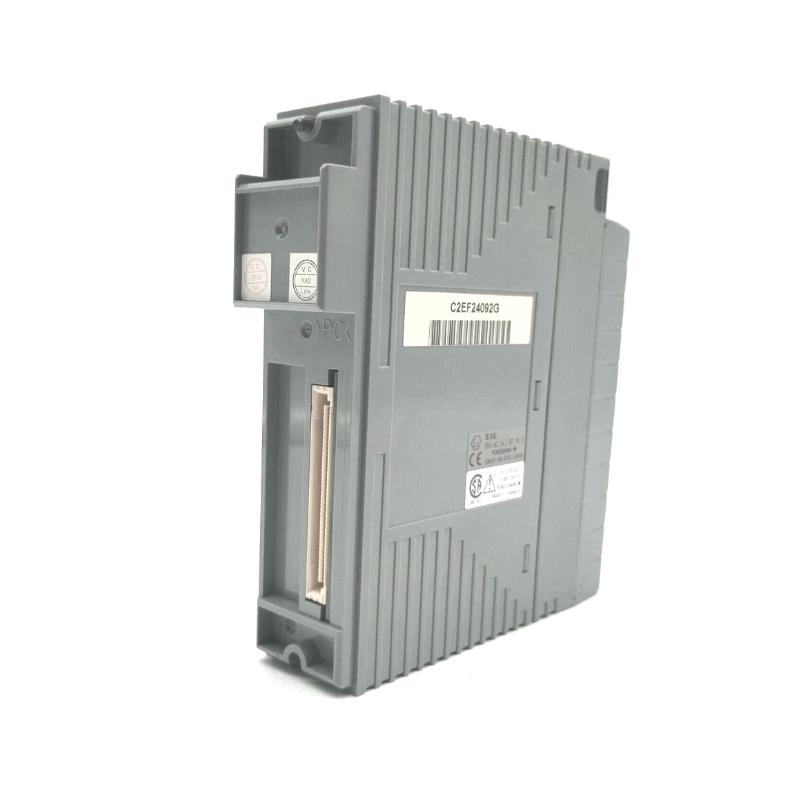

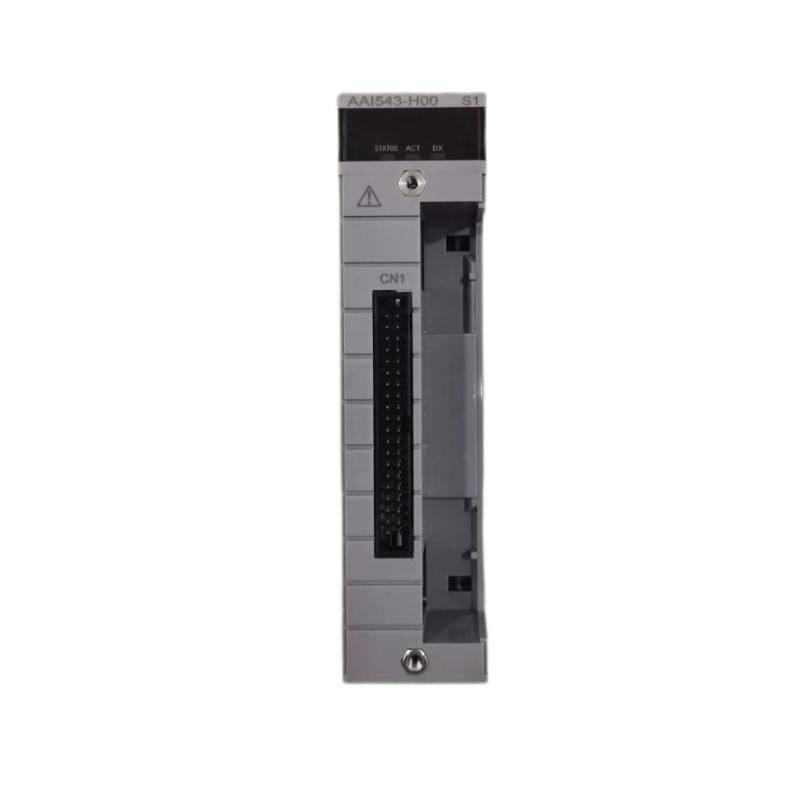

Yokogawa AAI543-H00/K4A00 | Analog Output Module Hot Items Fast Shipping!

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-H00/K4A00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview
The Yokogawa AAI543-H00/K4A00 is a 16-channel isolated analog output module that delivers 4–20 mA current outputs for field control devices. It supports dual-redundant operation and KS cable interface adapter connection. Brand: Yokogawa. Country of Origin: Japan.

General Information
Part Number: AAI543-H00/K4A00
Manufacturer: Yokogawa Electric Corporation
Brand: Yokogawa
Country of Origin: Japan
Type: Analog Output Module (16 isolated channels)
Function: Converts digital control signals into analog 4–20 mA outputs for actuators and instrumentation

Power Specifications
Output Channels: 16 isolated
Output Signal Range: 4 to 20 mA per channel
Allowable Load Resistance: 0 to 750 Ω
Accuracy: ±48 µA typical
Data Update Period: 10 ms
Drift Due to Ambient Temperature Change: ±16 µA per 10 °C
Withstanding Voltage: 1,500 V AC for 1 minute between output and system
Maximum Current Consumption: ~230 mA at 5 V DC or ~540 mA at 24 V DC

Communication & Interface
Signal Type: Analog current (4–20 mA) outputs
Supported Configuration: Dual-redundant module setup for high availability
Diagnostics: Circuit-open detection (less than 0.65 mA) and comprehensive channel supervision
Connection Options: Includes KS cable interface adapter (K4A00 option) for terminal board connection

Environmental
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Suitable for industrial cabinets or control rack mounting

Dimensions & Weight
Weight: 0.4 kg
Dimensions: 107.5 × 32.8 × 130 mm
