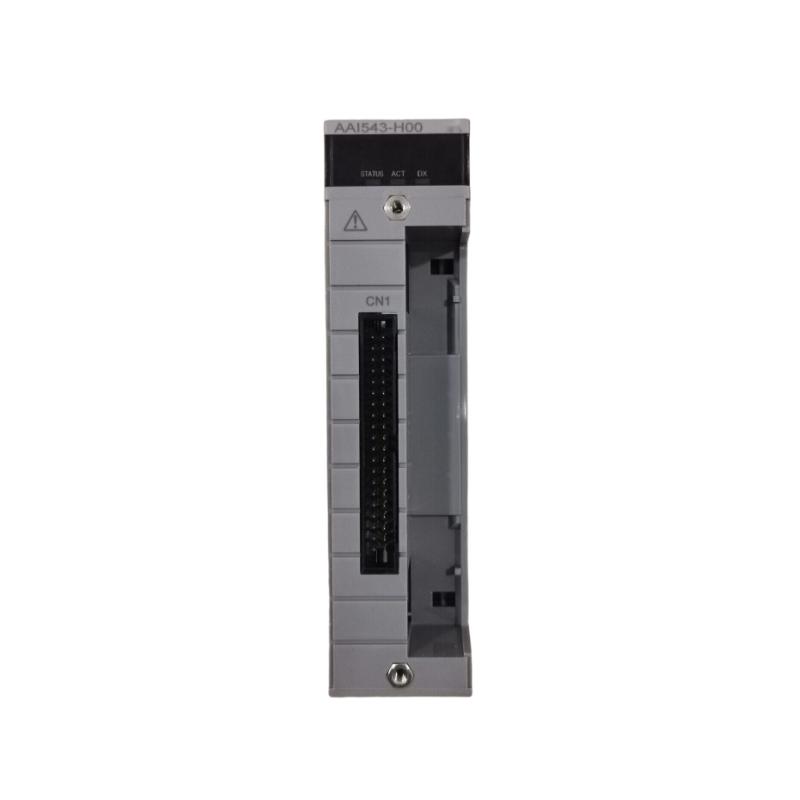

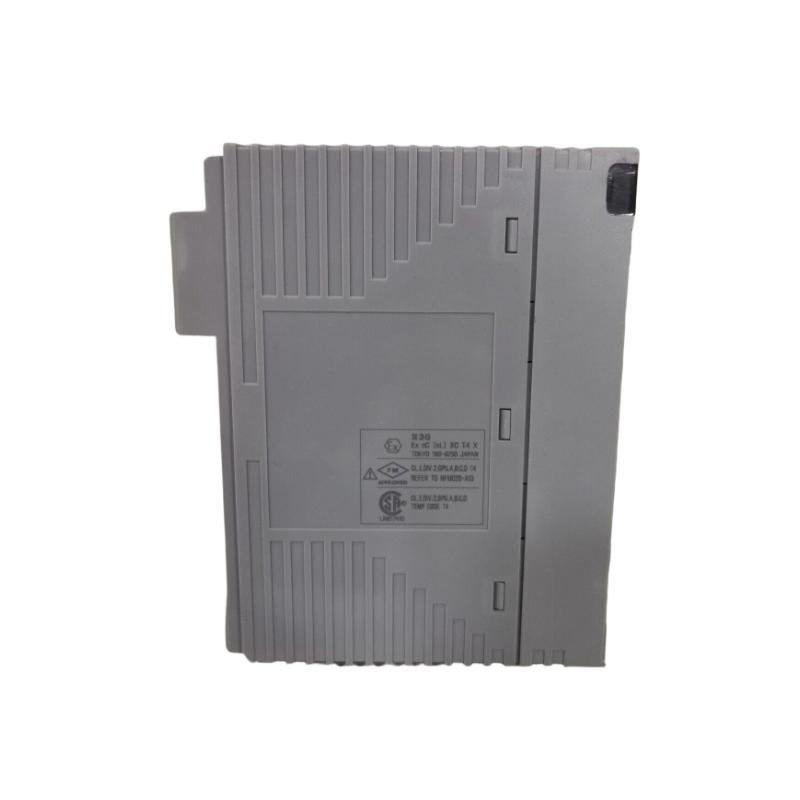

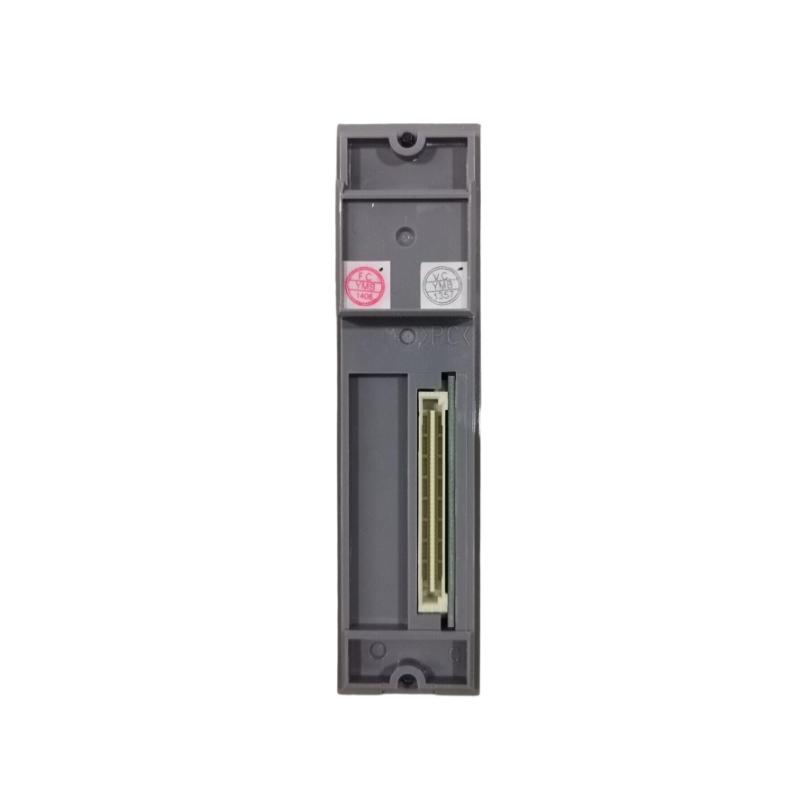

Yokogawa AAI543-H00 S1 | Analog Output Module Unbelievable Prices 30-Day Returns！

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-H00 S1

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The Yokogawa AAI543-H00 S1 is a high-density analog output module for industrial DCS systems. It delivers 4-20 mA signals across 16 isolated channels, supporting redundant configurations and high reliability. Brand: Yokogawa. Country of Origin: Japan.

General Information
Part Number: AAI543-H00 S1
Manufacturer: Yokogawa Electric Corporation
Brand: Yokogawa
Country of Origin: Japan
Type: Analog Output Module (16 isolated channels)
Function: Converts digital signals to analog current outputs for field devices

Power Specifications
Output Signal Range: 4 to 20 mA per channel
Allowable Load Resistance: 0 to 750 Ω
Withstanding Voltage: 1,500 V AC (output to system) for 1 minute
Accuracy: ±48 µA typical
Data Update Period: 10 ms
Drift (Ambient Temp Change): ±16 µA per 10 °C
Max Current Consumption: ~230 mA at 5 V DC, ~540 mA at 24 V DC

Communication & Interface
Signal Type: Analog current outputs (4-20 mA)
Channel Isolation: Each channel isolated from system and other channels
Supported Configuration: Dual-redundant module setup for high availability
Diagnostics: Circuit-open detection (<0.65 mA) and HART communications supported on compatible devices
Connection Options: Pressure clamp terminal, KS/ MIL connector adapter

Environmental
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial cabinet or control rack

Dimensions & Weight
Weight: 0.4 kg
Dimensions: 107.5 × 32.8 × 130 mm
