Product Introduction：

Overview

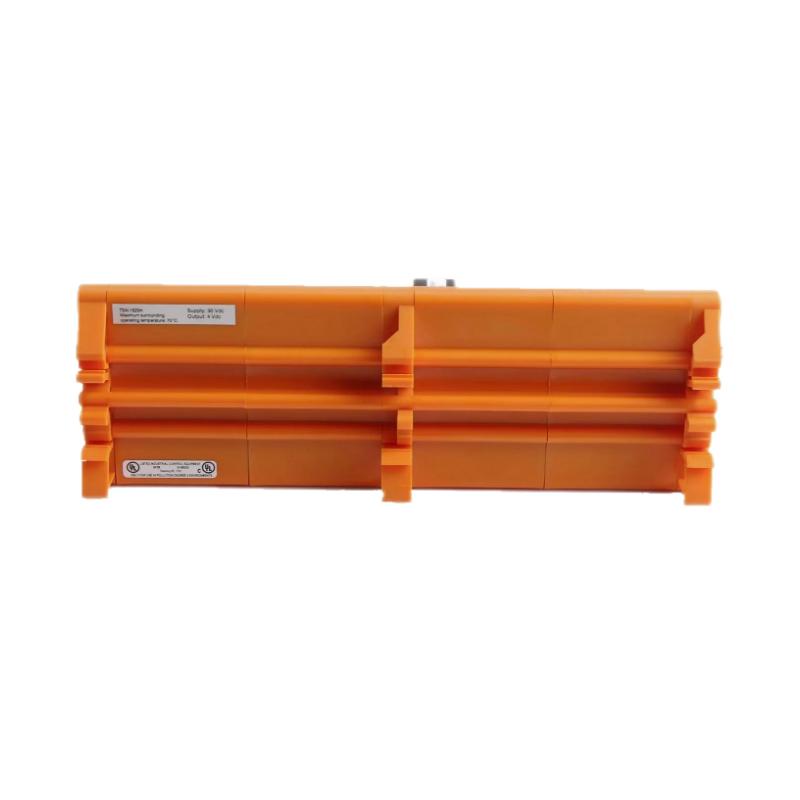

The FC‑TSAI‑0410 is a field termination assembly module designed for safe analog input signals, supporting four channels of either 0(4)‑20 mA or 0(2)‑10 V input. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC‑TSAI‑0410
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Field Termination Assembly (FTA) – Safe Analog Input
Channels: 4 input channels
Function: Provides secure field wiring termination for safe analog input modules in a safety instrumented system

Power Specifications
Input Signal Range: 0(4)‑20 mA or 0(2)‑10 V per channel
Maximum Continuous Input: 50 mA (in 0(4)‑20 mA mode) or 10 V (in 0(2)‑10 V mode)
Maximum Voltage Rating: 50 V DC
Over‑voltage Category: Category 3 per IEC 1010

Communication & Interface
Signal Types: Analog current or voltage inputs to SAI/SAI‑type modules via system interconnect cable
Wiring: Screw terminals for field wiring; compatible with DIN EN TS32/TS35 rails
Range Selection: Each channel supports configuration of input range (current or voltage) via range selection board

Environmental
Operating Temperature: ‑20 °C to +70 °C
Storage Temperature: ‑40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Approvals: CE, TUV, UL, CSA, FM certified for safe‑system use

Dimensions & Weight
Dimensions (H × W × D): 60 × 70 × 58 mm
Weight: Approx. 0.14 kg
