Product Introduction：

Overview

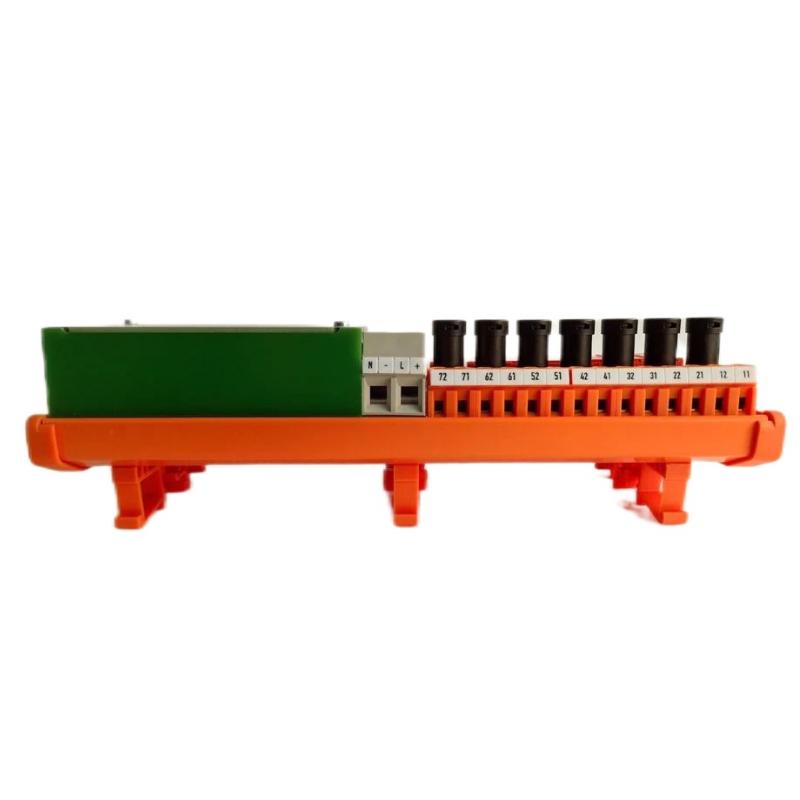

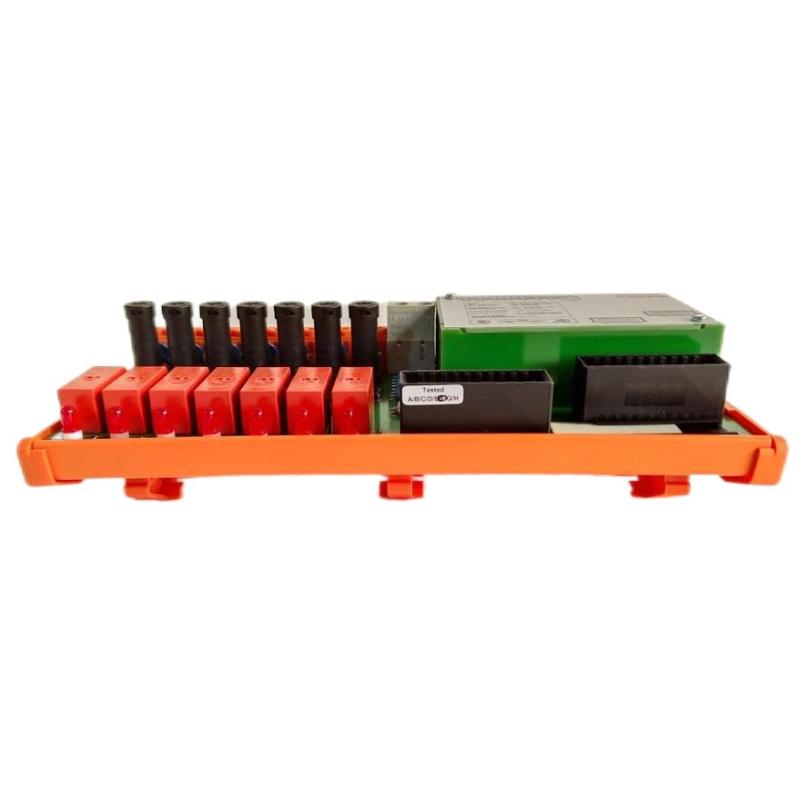

The Honeywell FC‑TDOL‑07120 is a 7‑channel digital output module designed for line‑monitored loads at 120 V AC or 120 V DC. It provides fused relay contacts with built‑in load monitoring for field devices. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC‑TDOL‑07120
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Digital Output Module – Field Termination Assembly (FTA)
Channels: 7 fused relay contact outputs
Function: Provides monitored digital interface to 120 V AC/DC field loads, with short‑circuit and lead‑break detection

Power Specifications

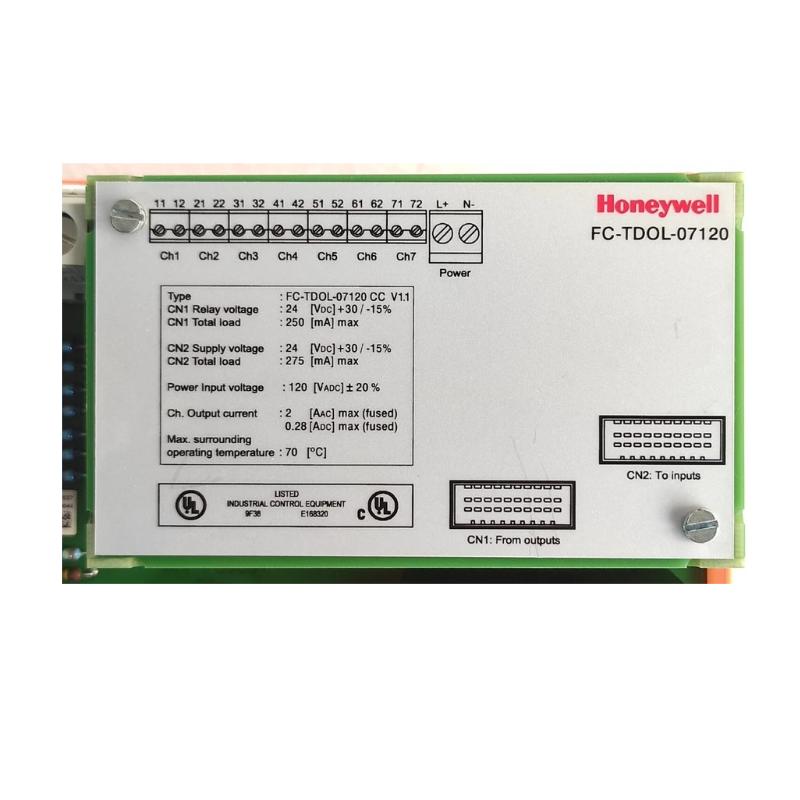

Output Supply Voltage: 120 V AC or 120 V DC ±20%
Max Output Load per Channel: 240 VA (resistive or inductive) or 150 W
Max Output Current: 2 A at 120 V AC; max ~0.28 A at 120 V DC (relay limit)
Fuse Rating per Channel: 2 A (slow‑acting)
Minimum Field Load: 1 W
Leakage Current to Load: Max 1 mA at 120 V
Power Consumption (Module Idle): < 8 mA at 120 V AC/DC

Communication & Interface
Channels: Outputs controlled via redundant SDO‑0824 module pairs; line‑monitoring inputs wired to SDI‑1624 module channels
Diagnostics: Dedicated line‑monitoring circuits per channel detect both lead‑break and short‑circuit conditions
Mounting: Installed on DIN EN TS32 / TS35 rail; front‑panel status indicators for relay state and diagnostics

Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Approvals: CE, UL, CSA (TÜV pending)

Dimensions & Weight
Dimensions (L × W × H): 240 × 109 × 71 mm
Weight: ~1 kg
