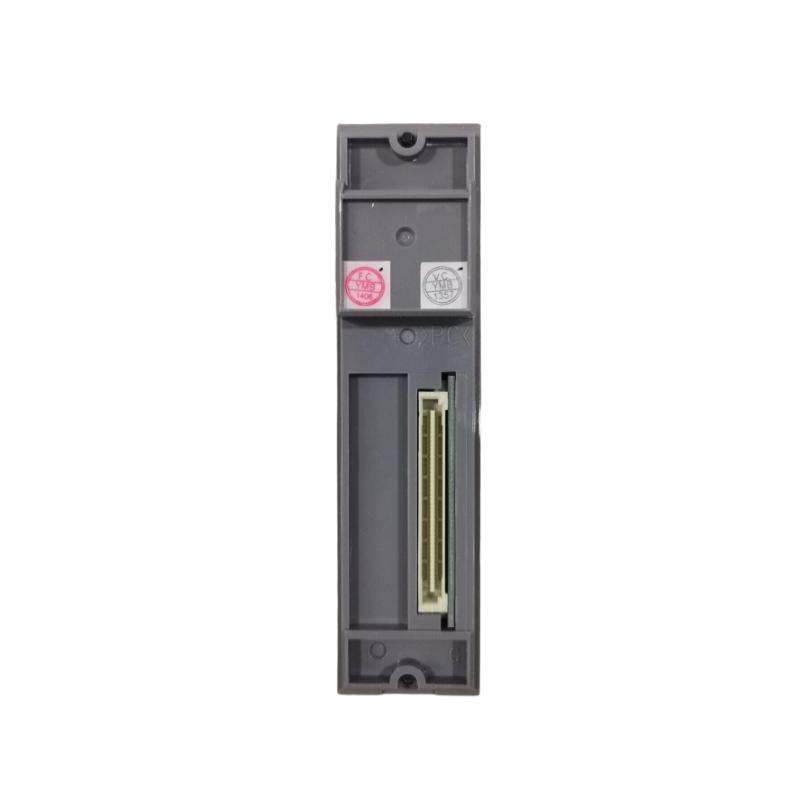

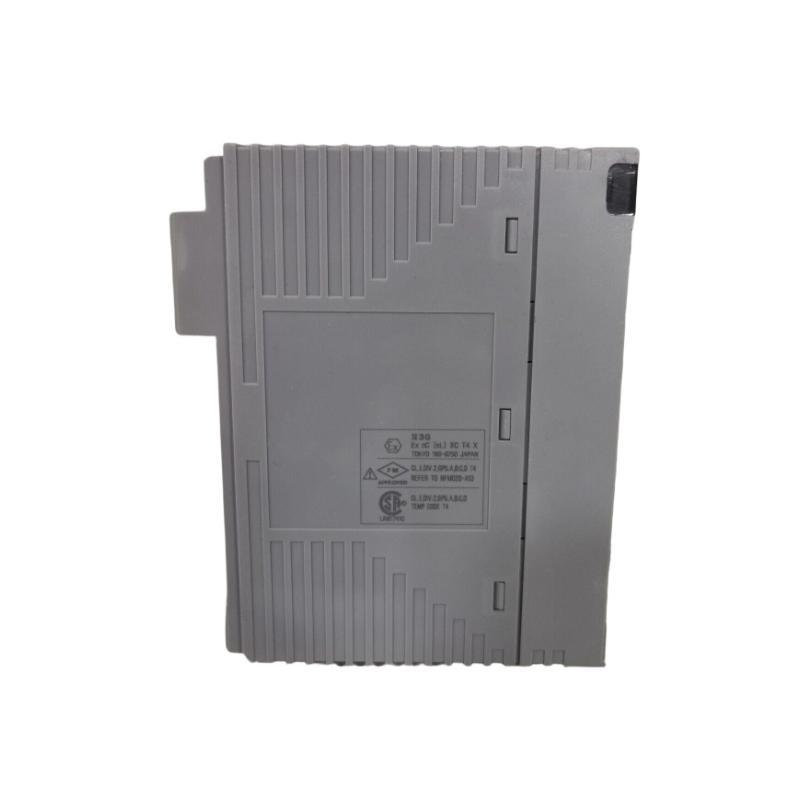

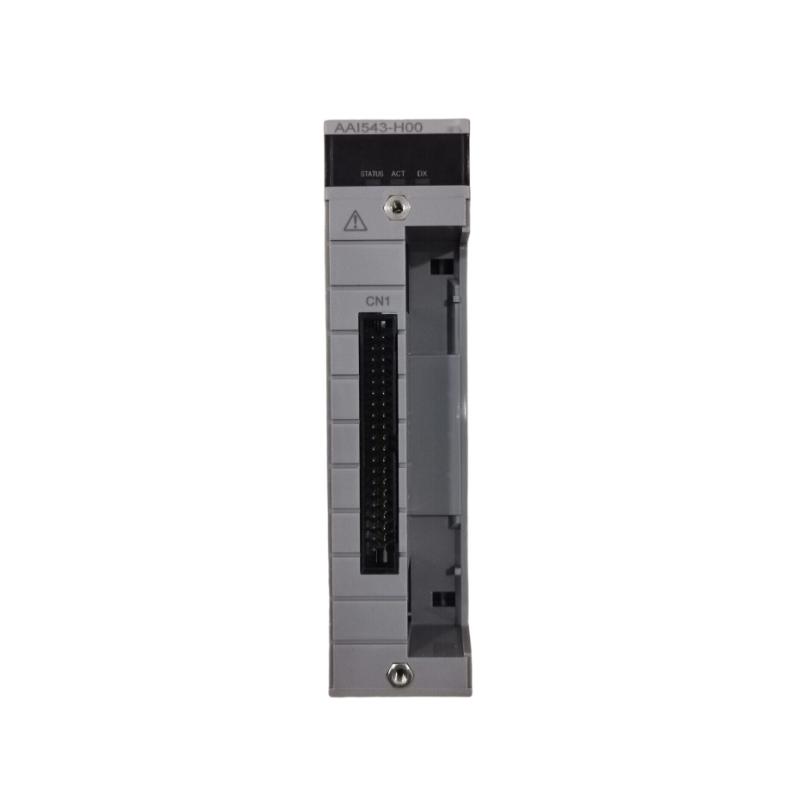

Yokogawa AAI543-H00 | Analog Output Module Price Advantage 30-Day Returns！

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-h00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product Introduction：

Overview
The Yokogawa AAI543-H00 is a 16-channel isolated analog output module that converts digital signals into 4-20 mA current outputs for field devices. Brand: Yokogawa. Country of Origin: Japan.

General Information
Part Number: AAI543-H00
Manufacturer: Yokogawa Electric Corporation
Brand: Yokogawa
Country of Origin: Japan
Type: Analog Output Module (16 isolated channels)
Function: Provides isolated current outputs for actuators and field instrumentation

Power Specifications
Number of Output Channels: 16 isolated
Output Signal Range: 4 to 20 mA per channel
Allowable Load Resistance: 0 to 750 Ω
Accuracy: ±48 µA typical
Data Update Period: 10 ms
Drift Due to Ambient Temperature Change: ±16 µA / 10 °C
Withstanding Voltage: 1500 V AC for 1 minute between output and system
Max Current Consumption: ~230 mA at 5 V DC, ~540 mA at 24 V DC

Communication & Interface
Signal Type: Analog current outputs (4-20 mA)
Supported Configuration: Standard switch-over response in redundant configuration
Diagnostics: Circuit-open detection (<0.65 mA)
Connection: Pressure clamp terminals or KS cable interface adapter depending on version

Environmental
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Mountable in industrial cabinet or rack environment

Dimensions & Weight
Weight: 0.4 kg
Dimensions: 107.5 × 32.8 × 130 mm

100% original and unused products, with verified stock and instant customer communication.

The product is sourced from a compliant import channel, with fast delivery and support for bulk negotiation of discount prices.
