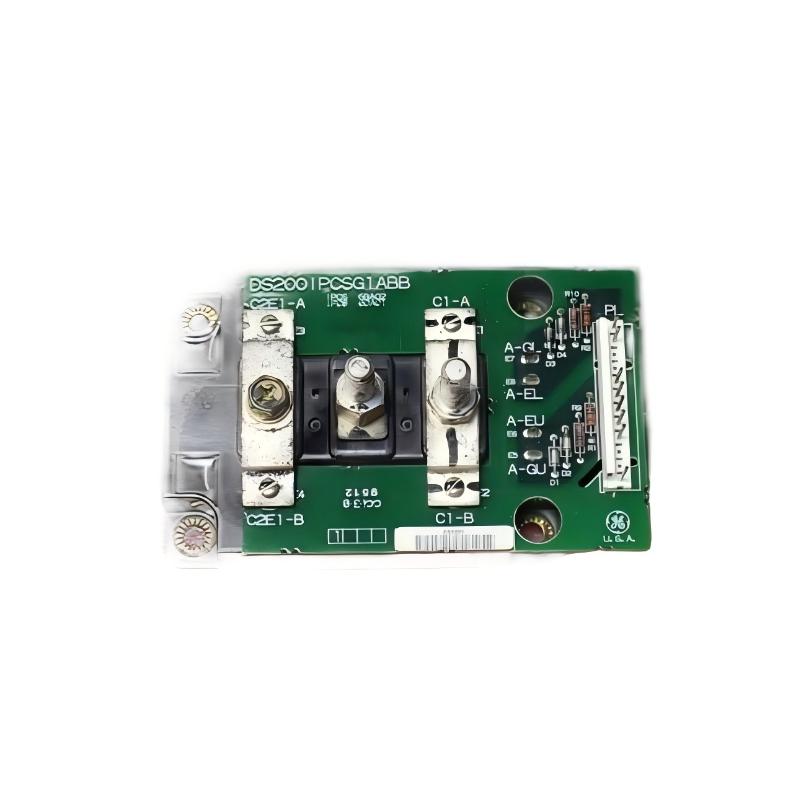

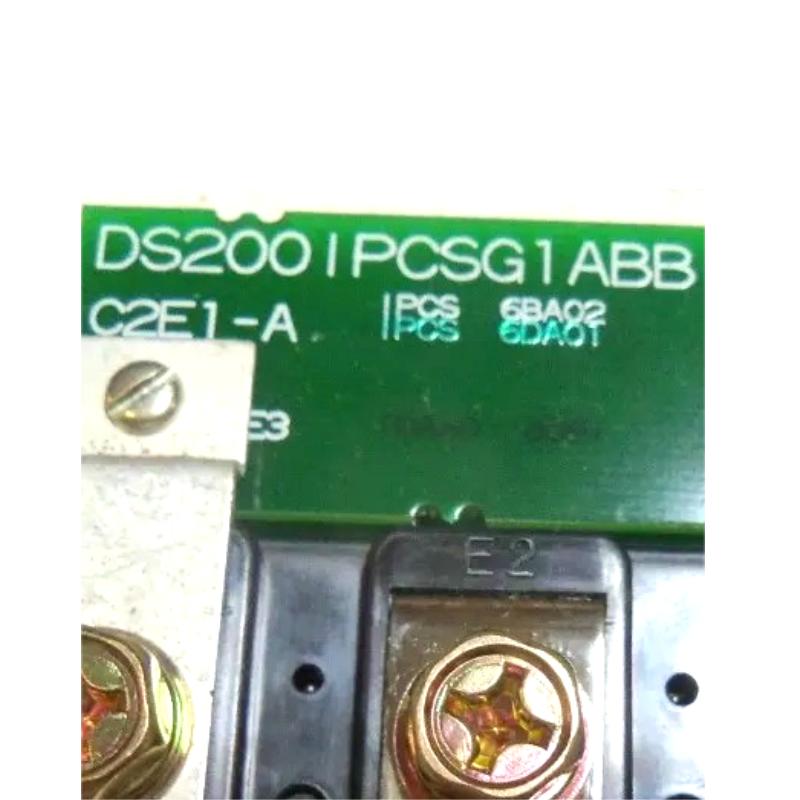

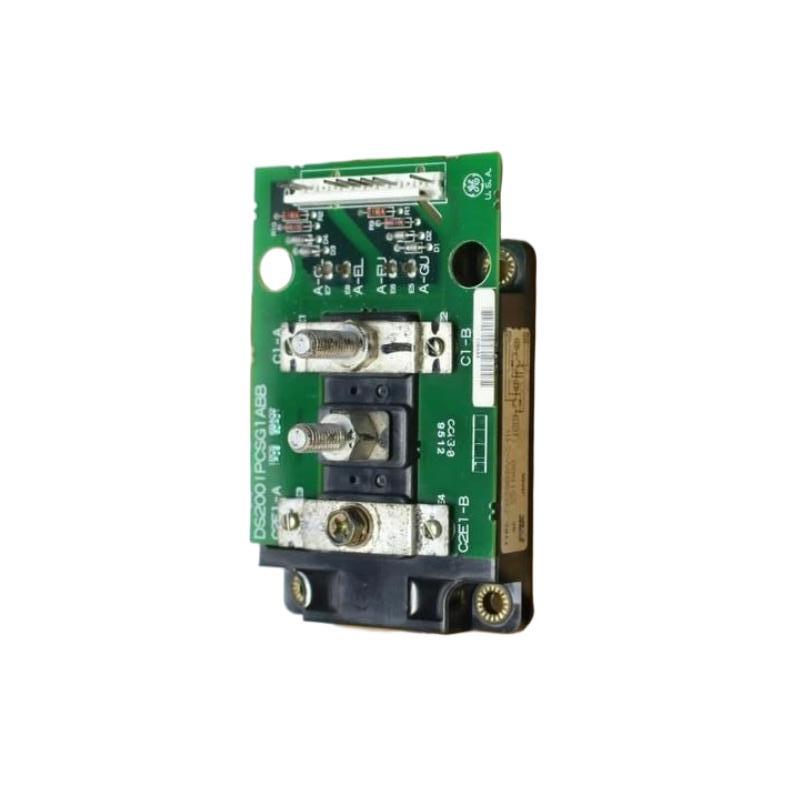

GE DS200IPCSG1ABB | IGBT P3 Snubber Board New In Stock New In Stock

Brand：GE Fanuc PLC

Item No.：GE DS200IPCSG1ABB

Product origin：USA

Dimensions:180 × 130 × 35 mm

Weight:0.5 kg

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The GE DS200IPCSG1ABB is an industrial IGBT P3 snubber board designed for GE drive systems. It provides suppression of voltage spikes generated during IGBT switching, improves inverter reliability, and protects high-power semiconductor components during dynamic load conditions.

General Information

Part Number: DS200IPCSG1ABB
Manufacturer: GE (General Electric)
Series: GE Drive / Mark V
Type: IGBT Snubber Board
Mounting: Internal installation in the power conversion assembly
Technology: High-voltage snubber network, transient energy absorption
Country of Origin: United States

Power Specifications

Input: High-voltage DC from IGBT power section
Primary Function: Limits switching transients, protects IGBT modules
Protection: Surge suppression, high-frequency damping
Indicators: None

Communication & Interface

Interface Role: Direct electrical interface with the IGBT power module
Connectivity: Heavy-duty terminals and board-to-module connectors
Diagnostics: Electrical test points only
Operator Interface: None
Reset Features: Not required; passive circuitry

I/O & Channels

Inputs: High-energy transient pulses from switching events
Outputs: Stabilized voltage waveform across IGBT devices
External Load Support: Not applicable
Function: Power protection, energy absorption, and snubber stabilization

Environmental

Operating Temperature: −30 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Enclosed drive cabinet or inverter module

Dimensions & Weight

Dimensions (L × W × H): 180 × 130 × 35 mm
Weight: ~ 0.5 kg

Our inventory features only brand-new items, available with quick quotation service.

The product information is complete, the delivery cycle is short, and special price services can be supported for bulk orders.
