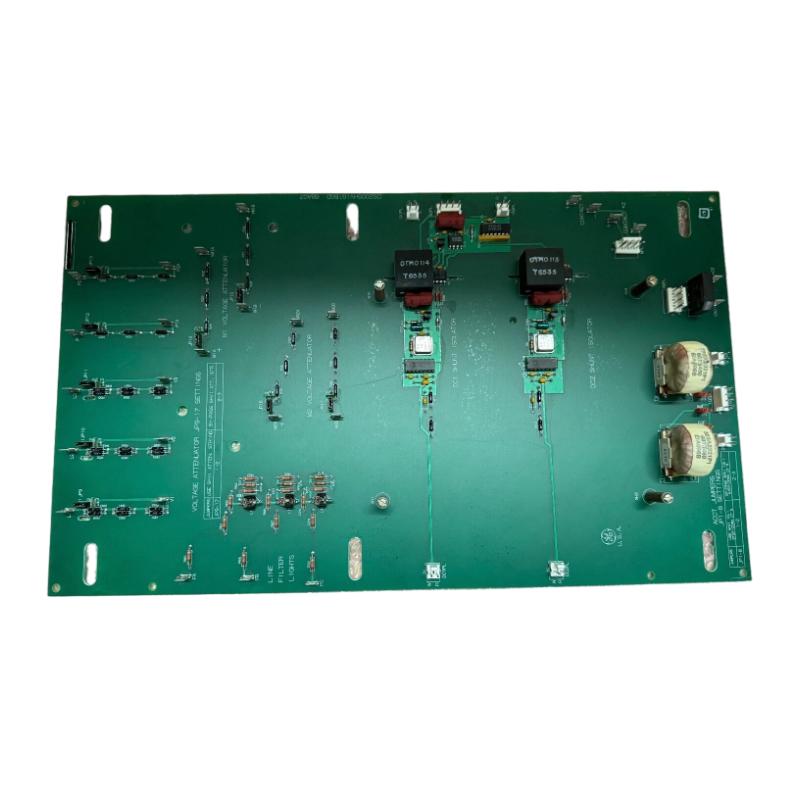

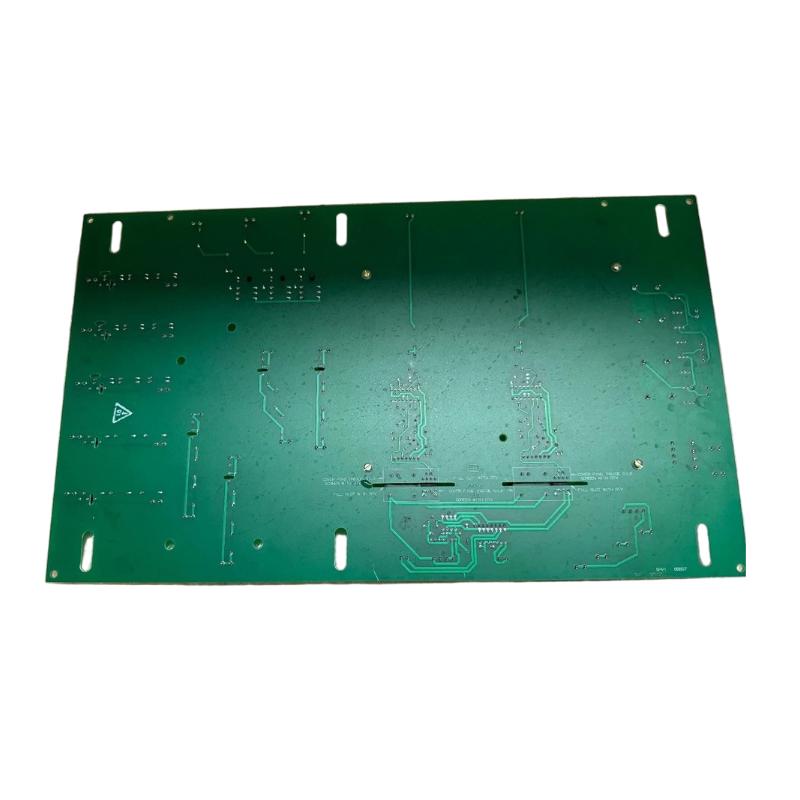

GE DS200SHVIG1BGD | High Voltage Interface Board Rave reviews New In Stock

Brand：GE Fanuc PLC

Item No.：GE DS200SHVIG1BGD

Product origin：USA

Dimensions:330 × 200 × 40 mm

Weight:1.1 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The GE DS200SHVIG1BGD is a high-voltage interface board designed for GE industrial drive systems, particularly within the Mark V series. It provides isolation, conditioning, and transmission of high-voltage signals, ensuring stable control and coordination between the power section and drive control electronics.

General Information

Part Number: DS200SHVIG1BGD
Manufacturer: GE (General Electric)
Series: Mark V / Industrial Drive Platforms
Type: High-Voltage Interface Board
Mounting: Rack or chassis installation
Technology: High-voltage isolation, signal conditioning, noise filtering
Country of Origin: United States

Power Specifications

Supply Voltage: Provided through the system backplane
Power Consumption: Low-power PCB electronics
Protection: High-voltage insulation, surge suppression, transient filtering
Indicators: May include test points for diagnostics

Communication & Interface

Interface Type: High-voltage signal interface
Functional Role: Transfers, conditions, and isolates high-voltage signals
Diagnostics: Supports signal verification and drive health monitoring
Operator Interface: Diagnostic test points
Reset Features: System-level reset via controller

I/O & Channels

Inputs: High-voltage sense and monitoring signals
Outputs: Conditioned signals to control boards
External Loads: None
Functional Purpose: High-voltage interface between drive control and power circuits

Environmental

Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 330 × 200 × 40 mm
Weight: ~ 1.1 kg

Authentic brand-new products with immediate stock access — quotes available anytime.

This product has flexible delivery arrangements, suitable for rapid deployment needs, and supports tiered quotations for large purchases.
