Product Introduction：

Overview

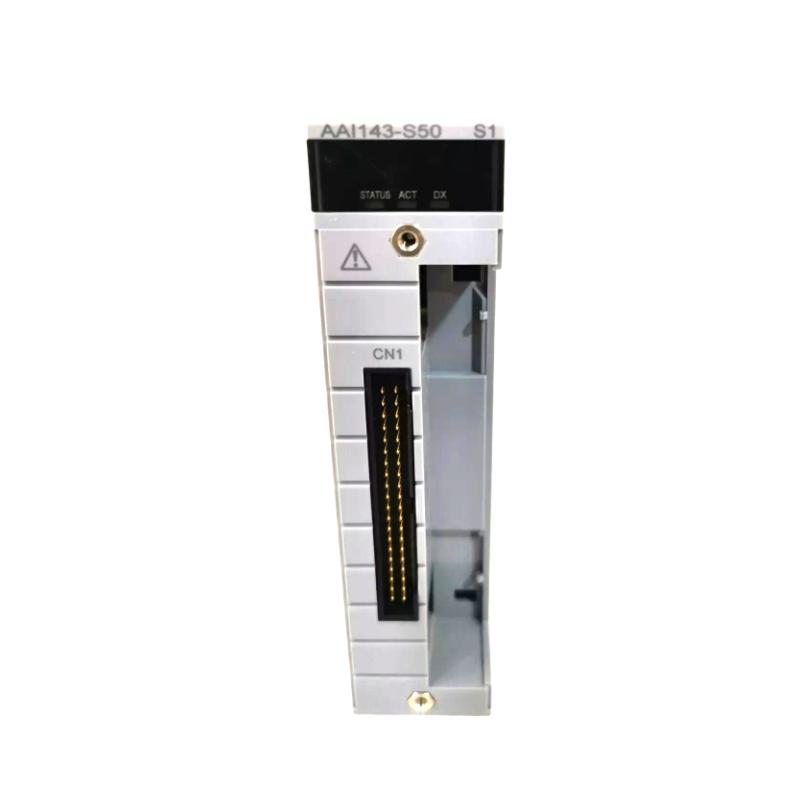

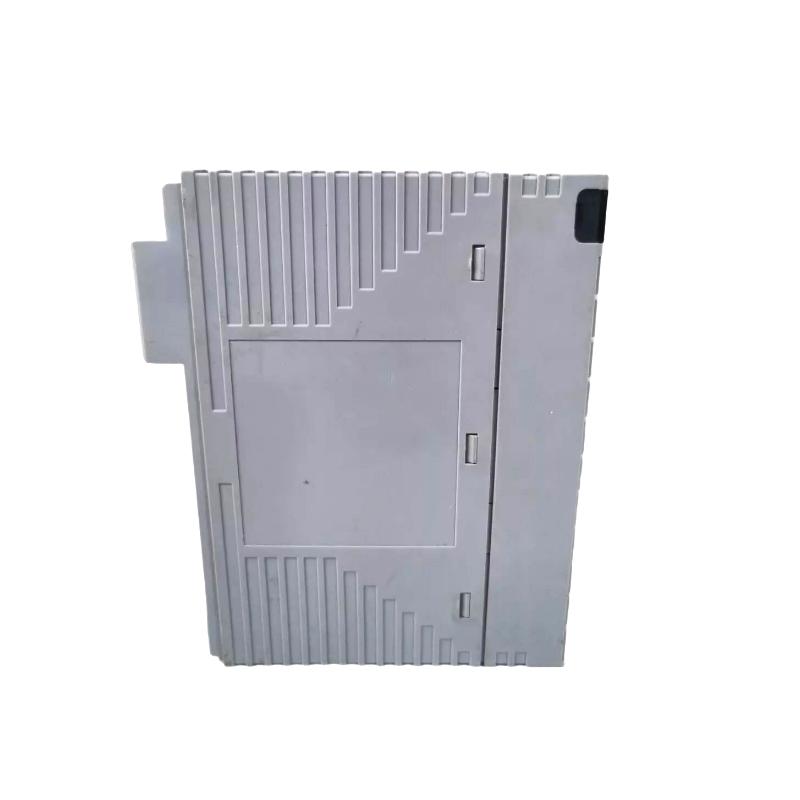

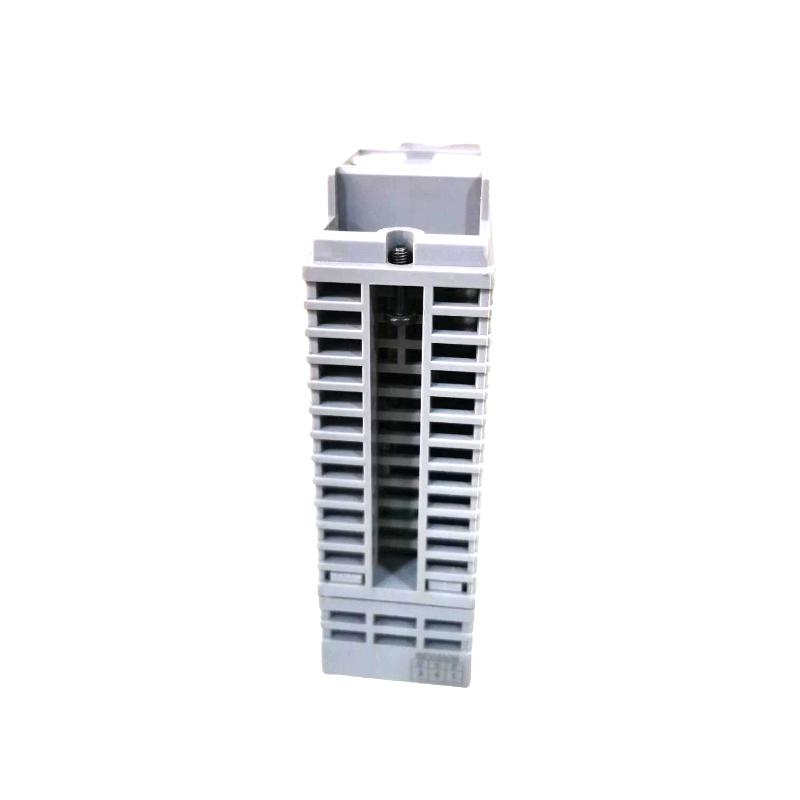

The Yokogawa AAI143-S50/A4800 is a 16-channel isolated analog input module designed for high-performance distributed control systems. It accepts 4-20 mA signals from 2-wire or 4-wire transmitters and supports dual-redundant architectures for increased reliability.

General Information

Part Number: AAI143-S50/A4800
Manufacturer: Yokogawa
Brand / Country of Origin: Yokogawa / Japan
Series: AAI143
Type: Analog Input Module
Mounting: Rack-mounted in Yokogawa DCS control chassis
Channels: 16 isolated analog inputs

Power Specifications

Supply Voltage: +5 V DC and +24 V DC from system backplane
Maximum Current Consumption: ~230 mA at +5 V, ~540 mA at +24 V
Transmitter Power Supply: Minimum ~19.0 V at 20 mA; Maximum ~25.5 V at 0 mA
Isolation: 1500 V AC between inputs and system for 1 minute

Communication & Interface

Input Signal: 4–20 mA DC
Input Resistance (Power ON): ~270 Ω at 20 mA to ~350 Ω at 4 mA
Accuracy: ±16 µA typical
Data Update Period: 10 ms
Channel Wiring: Configurable per channel for 2-wire or 4-wire transmitters

Environmental

Operating Temperature: –20 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
