Product Introduction：

Overview

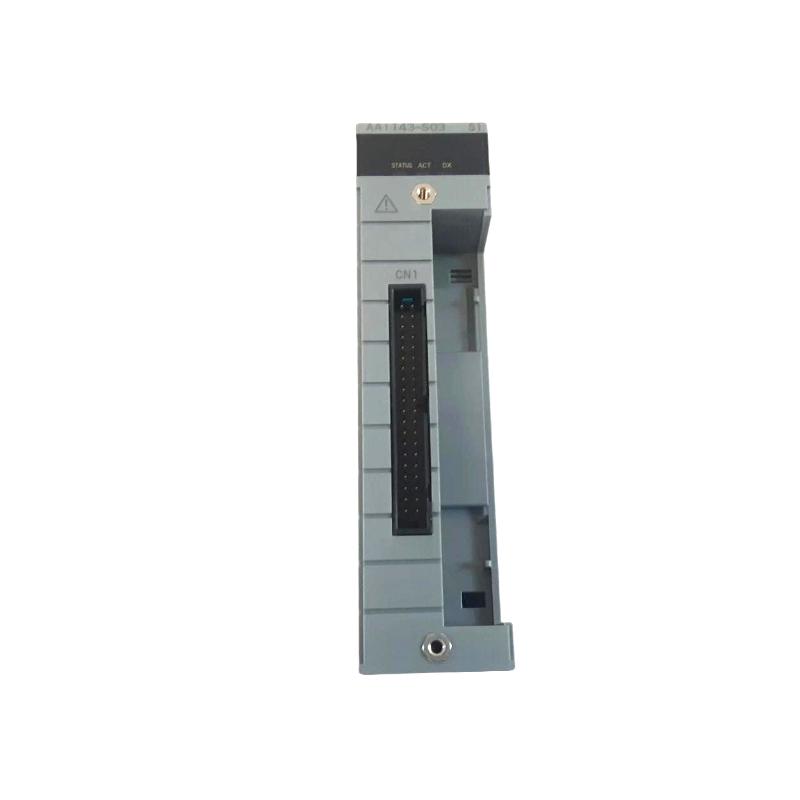

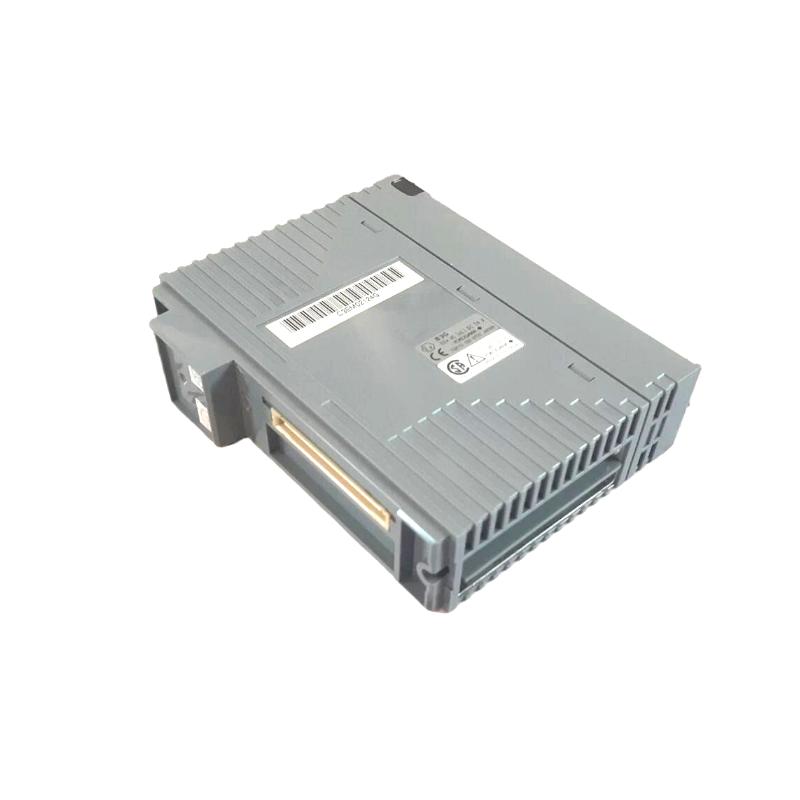

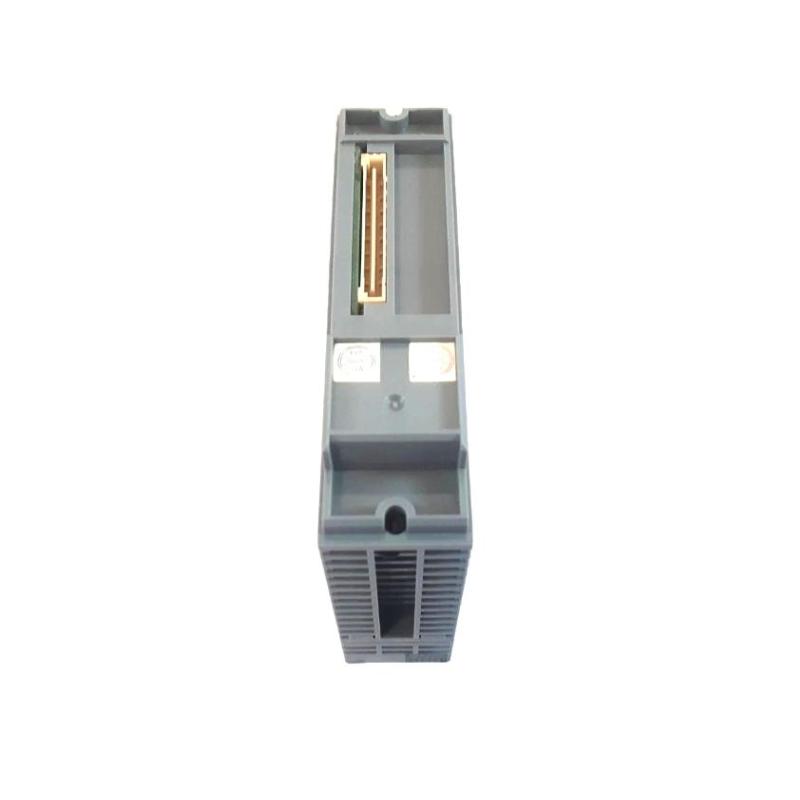

The Yokogawa AAI143-S03/ATA4S-00 is a 16-channel analog input module designed for the CENTUM VP family. It supports 4–20 mA or 1–5 V signals from 2- or 4-wire transmitters, and includes the ATA4S-00 pressure-clamp terminal block option for secure wiring.

General Information
Part Number: AAI143-S03/ATA4S-00
Manufacturer: Yokogawa
Brand / Country of Origin: Yokogawa / Japan
Series: AAI143
Type: Analog Input Module with enhanced terminal block
Mounting: Rack-mounted in CENTUM VP control system
Channels: 16 analog input channels

Power Specifications
Supply Voltage: +5 V DC and +24 V DC from system backplane
Typical Current: ~230 mA at +5 V, ~540 mA at +24 V
Transmitter Supply: Minimum 19.0 V at 20 mA, Maximum 25.5 V at 0 mA
Protection: Standard surge and reverse-polarity protection

Communication & Interface
Input Signal: 4–20 mA DC or 1–5 V DC
Input Resistance: ~250 Ω + current drop (typical ~270 Ω at 20 mA)
Accuracy: ±0.1% of full scale
Data Update Period: 10 ms
Wiring Terminal: ATA4S-00 pressure clamp terminal block included

Environmental
Operating Temperature: –20 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20

Dimensions & Weight
Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
