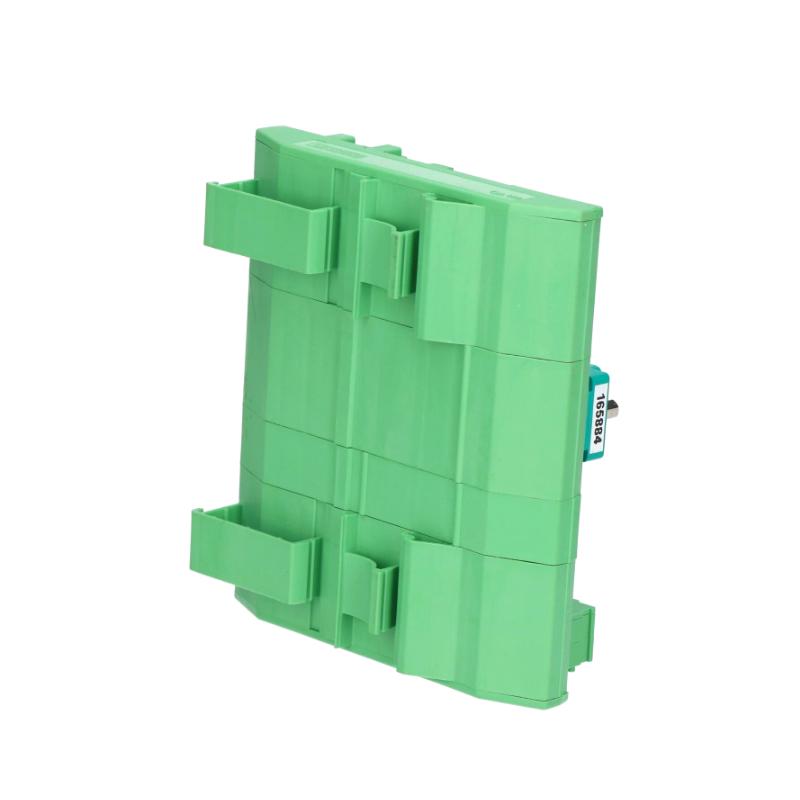

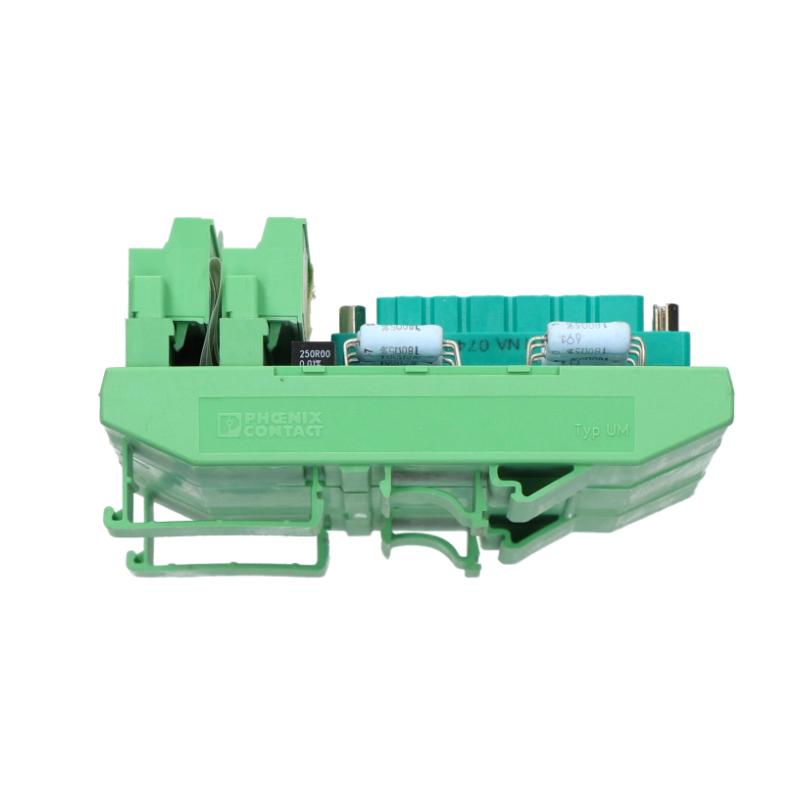

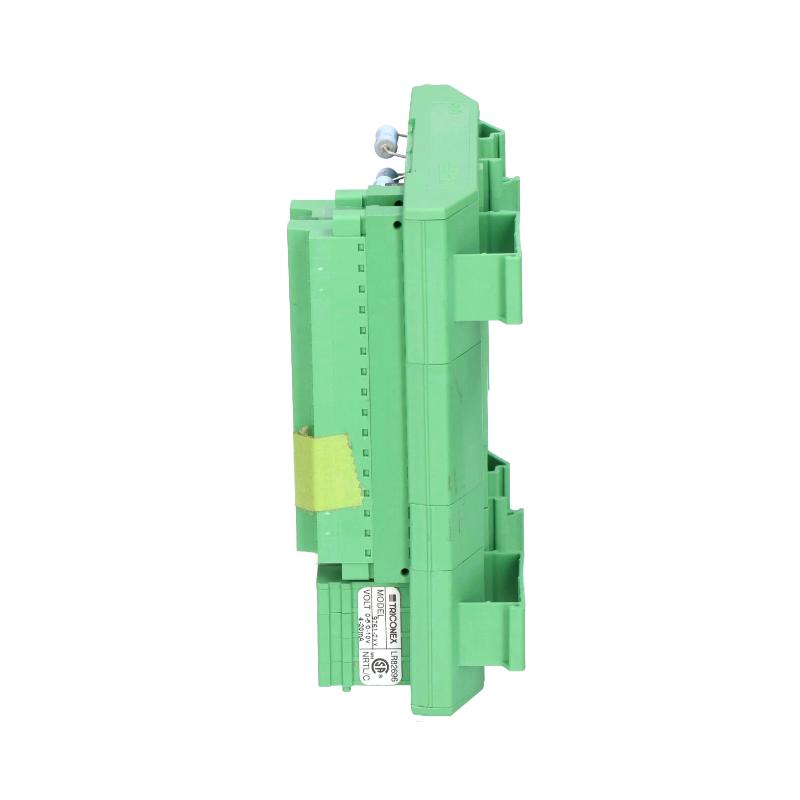

Triconex 9761-210F | 16-Point Current Input Termination Panel 100% New Trusted supplier

Brand：Invensys Triconex

Item No.：Triconex 9761-210F

Product origin：USA

Dimensions:124 × 126 × 22 mm

Weight:0.3 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Triconex 9761-210F is a 16-point current input termination panel designed for use with Tricon v9–v10 systems. It is configured for 0–5 VDC and –5 to +5 VDC analog input modules, providing a reliable interface for connecting field current input signals to Triconex controllers in industrial automation environments.

General Information

Part Number: 9761-210F

Manufacturer: Triconex

Brand / Country of Origin: Triconex / USA

Type: Current Input Termination Panel

Compatibility: Triconex 0–5 VDC and –5 to +5 VDC analog input modules

Number of Points: 16

Mounting: Panel-mounted

Power Specifications

Input Voltage: 24 V DC

Current Rating: Up to 20 mA per channel

Power Supply Connections: Supports redundant 24 VDC sources with diode ORing

Communication & Interface

Interface: Direct connection to Triconex analog input modules

Signal Type: Current input

Resistor Configuration:

Each positive terminal includes a 180-ohm series resistor

Each input has a precision 250-ohm resistor for current-to-voltage conversion

Environmental

Operating Temperature: 0 °C to 60 °C

Storage Temperature: –40 °C to 85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): Approximately 124 × 126 × 22 mm

Weight: Approximately 0.3 kg
