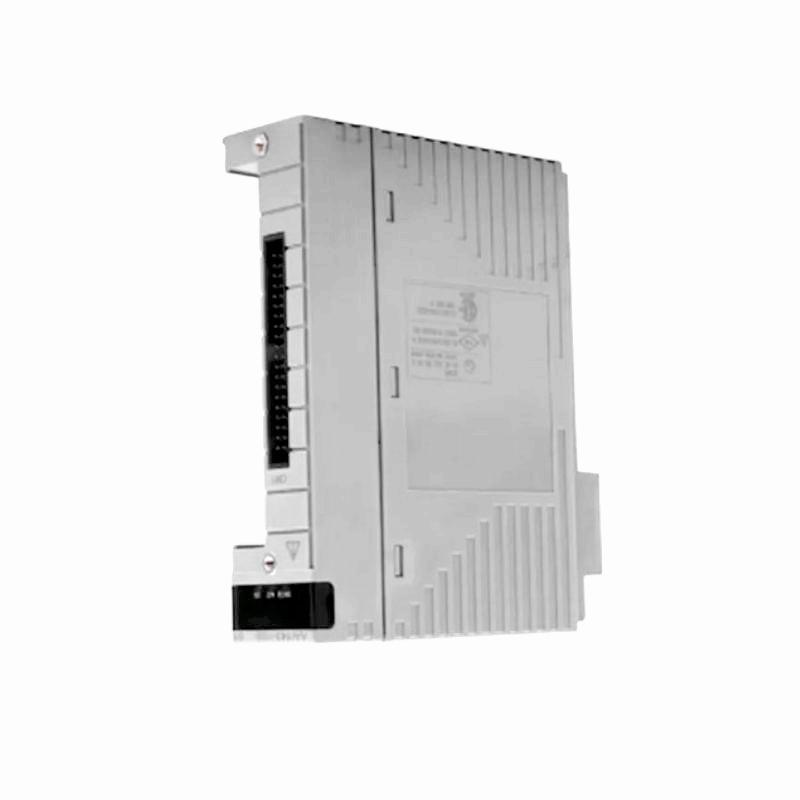

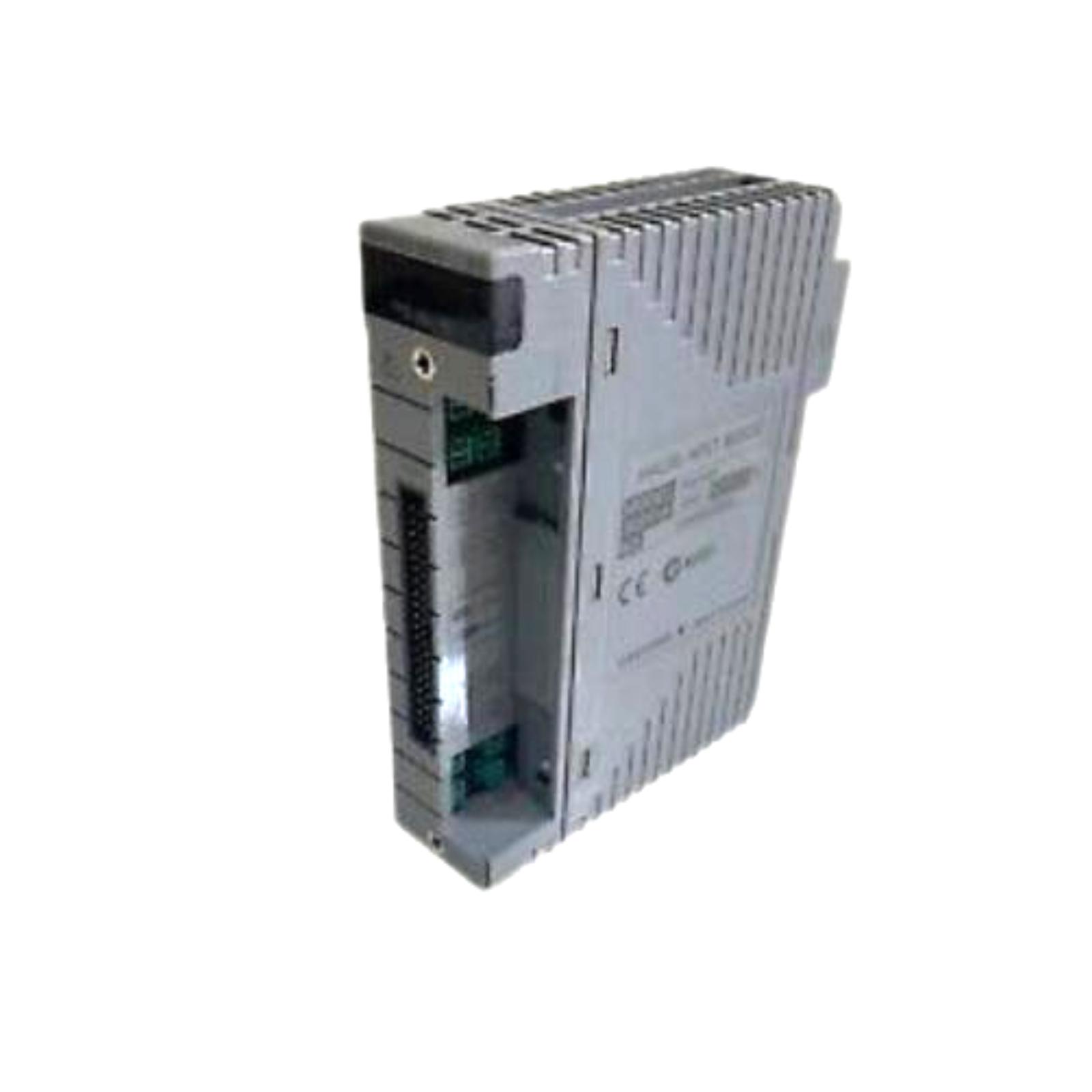

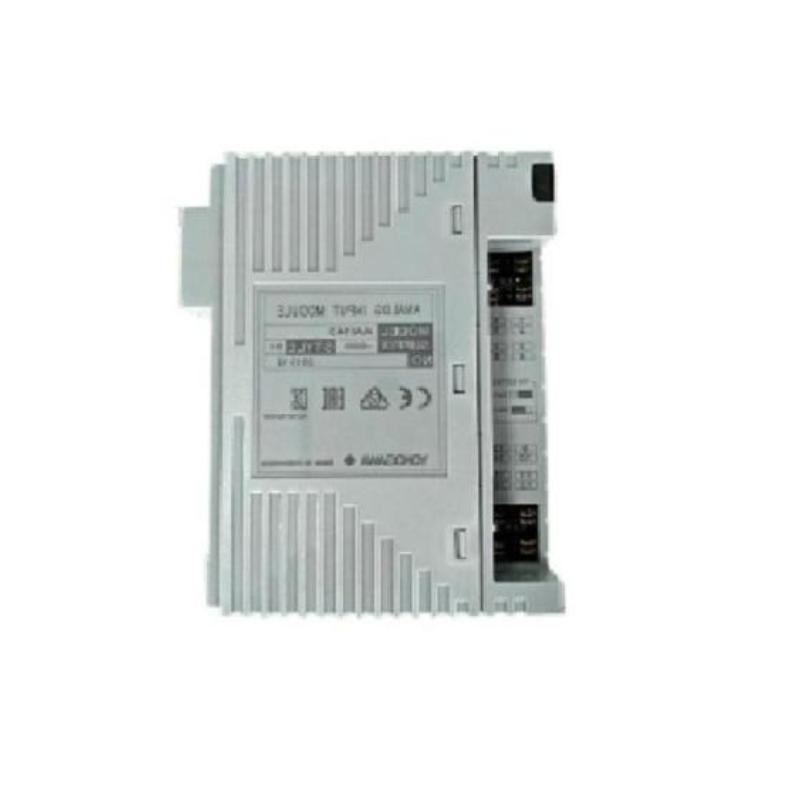

Yokogawa AAI143-S00 | Analog Input Module Recommended products Trusted supplier

Brand：Yokogawa Electric

Item No.：Yokogawa AAI143-s00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Yokogawa AAI143-S00 is a 16-channel isolated analog input module designed for distributed control systems. It supports both 2-wire and 4-wire transmitters and provides high accuracy, stable signal conversion, and electrical isolation to ensure reliable process measurement.

General Information

Part Number: AAI143-S00
Manufacturer: Yokogawa
Brand / Country of Origin: Yokogawa / Japan
Series: AAI (Analog Input) Series
Type: Analog Input Module
Mounting: Rack-mounted within Yokogawa DCS or FCS system
Technology: 16 isolated analog input channels, 4–20 mA signal, redundancy support

Power Specifications

Supply Voltage: +5 V DC and +24 V DC (from backplane)
Power Consumption: Approx. 230 mA at 5 V, 540 mA at 24 V
Transmitter Power: 19.0 V to 25.5 V (depending on load current)
Protection: 1500 V AC isolation between input and system (1 minute)

Communication & Interface

Input Signal: 4–20 mA
Input Resistance: 270 Ω at 20 mA, 350 Ω at 4 mA (Power ON)
Allowable Input Current: Up to 24 mA
Accuracy: ±16 µA
Data Update Period: 10 ms
Configuration: Selectable 2-wire or 4-wire transmitter per channel
Function: Converts analog current signals to digital data for system control

Environmental

Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for cabinet installation)
Temperature Drift: ±16 µA per 10 °C change

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
