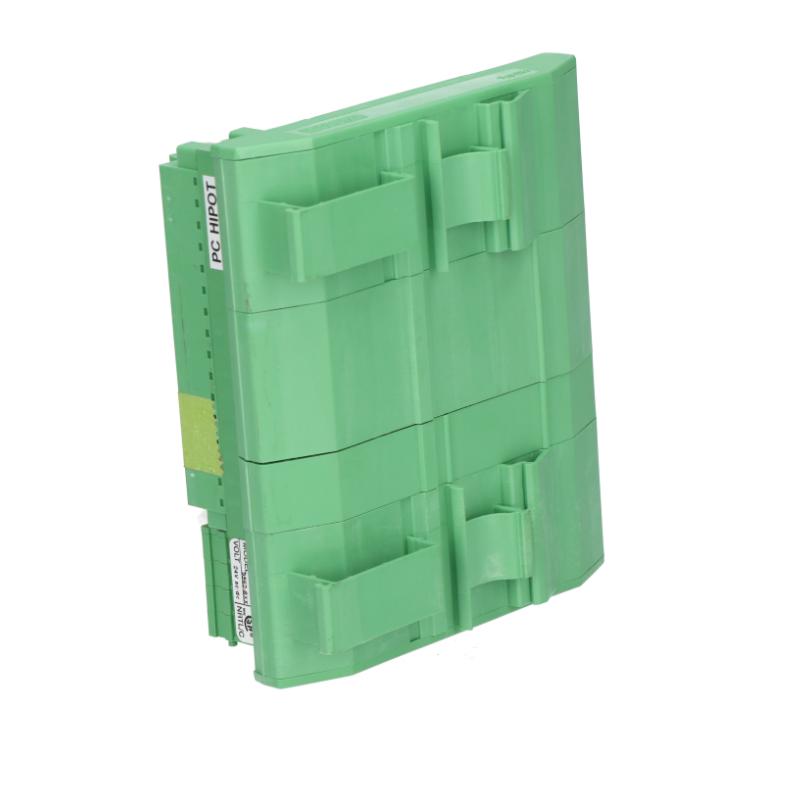

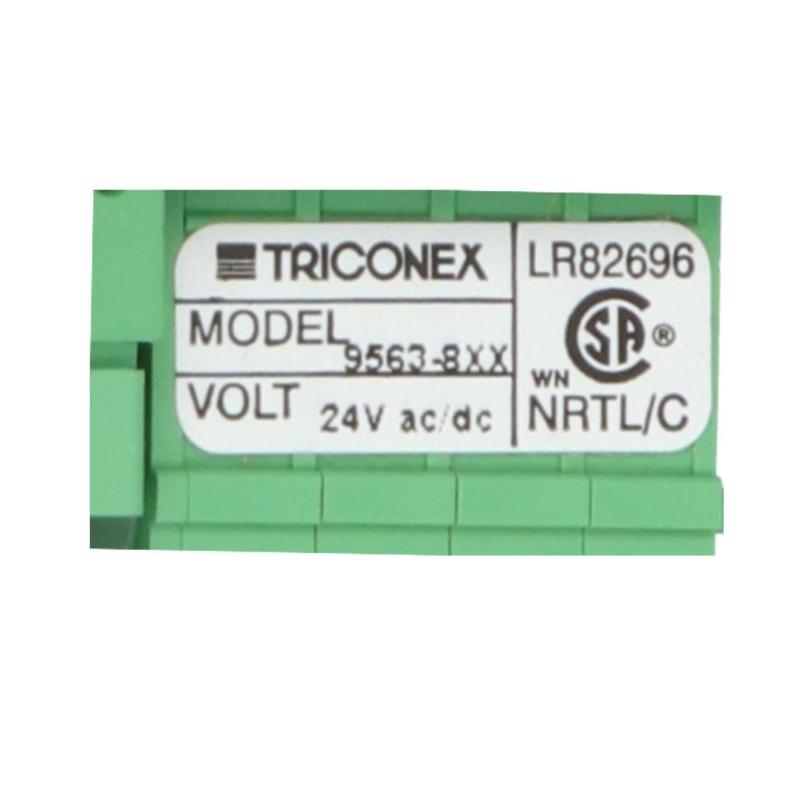

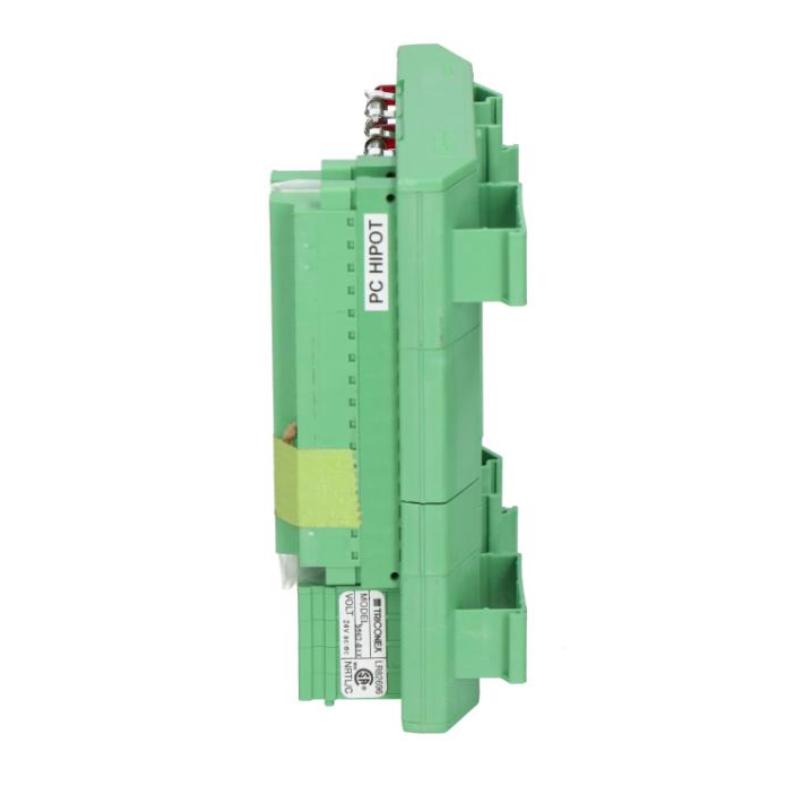

Triconex 9563-8XX | Digital Input Termination Panel Series Shelf life 1 year 30-Day Returns！

Brand：Invensys Triconex

Item No.：Triconex 9563-8XX

Product origin：USA

Dimensions:230 × 170 × 43 mm

Weight:1.5 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview
The Triconex 9563-8XX series consists of digital input termination panels designed for use with Triconex Safety Instrumented Systems (SIS). These panels provide a secure and organized interface for digital input signals from field devices to the Tricon controller because reliable signal routing is essential in safety-critical industrial applications.

General Information

Model Number: 9563-8XX

Type: Digital Input Termination Panel

Compatibility: Tricon v9 and v10 systems

Country of Origin: USA

Power Specifications

Operating Voltage: Typically 24V DC

Power Terminals: Commoned (PWR+ and PWR–)

Fuse Protection: Each input point is protected by a fuse with a blown-fuse indicator

Reason: Because stable and protected power ensures reliable operation and safety

Communication & Interface

Interface Type: Terminal block connections for field wiring

Number of Input Points: 16 per panel (may vary by specific model)

Function: Facilitates organized and secure wiring of digital input signals to the Tricon controller

Compatible Modules: Digital input modules such as 3503E, 3505E

Usage: Two panels may be required for 32-point modules depending on the system configuration

Environmental

Operating Temperature Range: −40 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Reason: Because robust environmental tolerance ensures reliable operation in industrial settings

Dimensions & Weight

Dimensions: Approximately 230 × 170 × 43 mm

Weight: About 1.5 kg

Genuine new stock available, backed by experienced customer service professionals.

The product has a quick delivery response, a short inventory cycle, and a certain price advantage. Large quantities support discounts.
