Triconex 9563-810F | Digital Input Termination Panel Hot Items New In Stock

Brand：Invensys Triconex

Item No.：Triconex 9563-810F

Product origin：USA

Dimensions:230 × 170 × 43 mm

Weight:1.5 kg

This product is imported from overseas, supports test report assistance, and after-sales docking is smooth

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

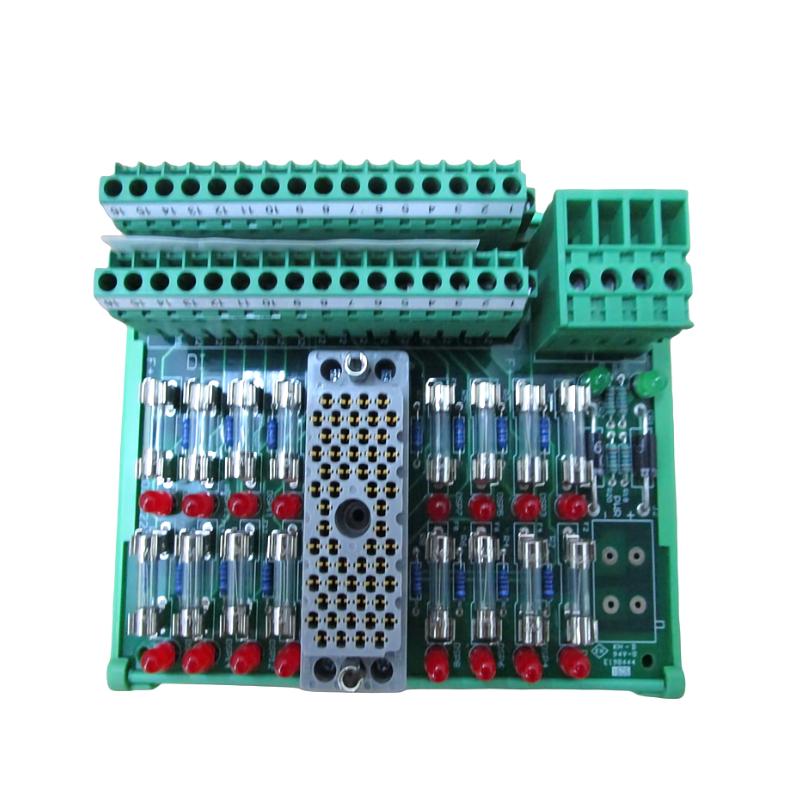

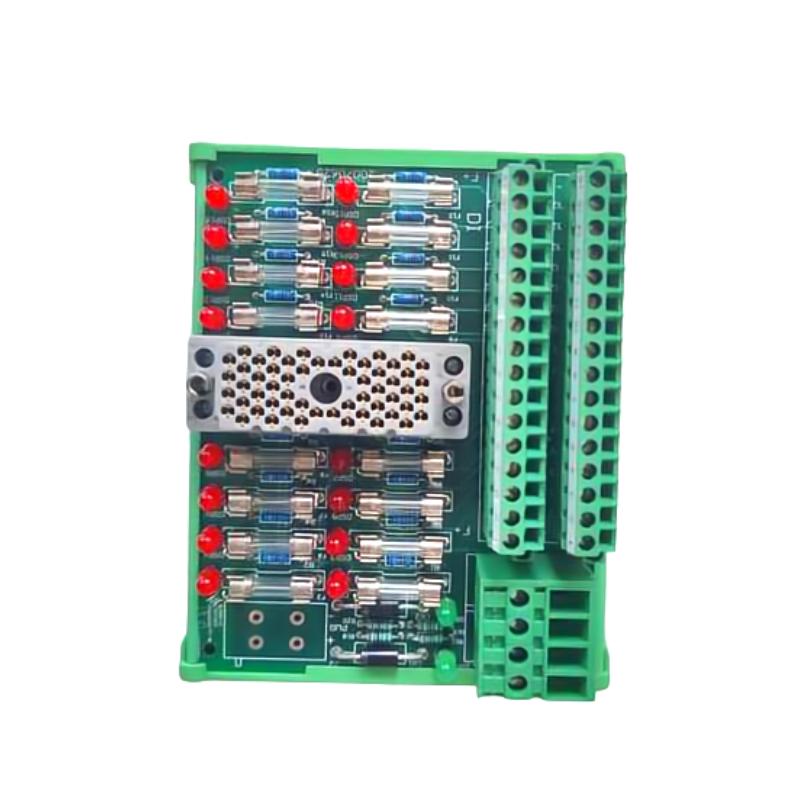

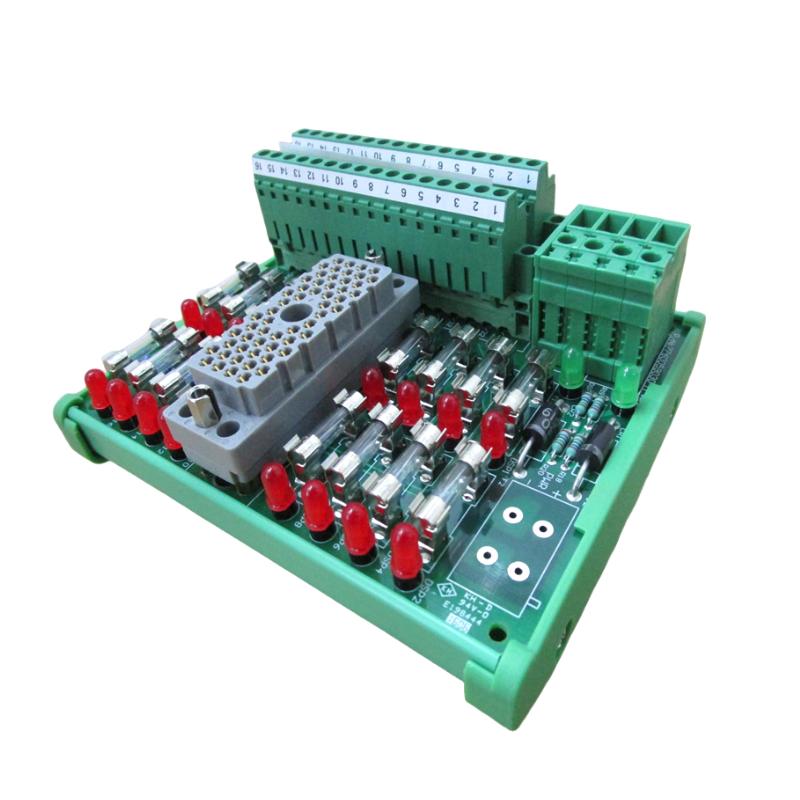

The Triconex 9563-810F is a digital input termination panel designed for use with 24V DC digital input modules in Triconex v9 and v10 systems. It provides 16 input points with commoned power terminals (PWR+ and PWR–), each protected by a fuse with a blown-fuse indicator. This panel is compatible with 32-point digital input modules, requiring two panels for each module.

General Information

Model Number: 9563-810F

Type: Digital Input Termination Panel

Compatibility: Triconex v9 and v10 systems

Country of Origin: USA

Power Specifications

Operating Voltage: 24V DC

Power Terminals: Commoned (PWR+ and PWR–)

Leakage Current per Point:

Maximum: 3.3 mA

Typical: 2.5 mA

Fuse Protection: Each input point is protected by a fuse with a blown-fuse indicator

Reason: Because stable and protected power ensures reliable operation in industrial environments.

Communication & Interface

Interface Type: Terminal block connections for field wiring

Number of Input Points: 16

Function: Facilitates secure and organized wiring for digital input signals from field devices to the Tricon controller.

Modules Compatible:

3503E: 24V AC/DC, commoned in groups of 8, TMR with self-test

3505E: 24V DC, low-threshold, commoned in groups of 8 with self-test, TMR

Usage: Two termination panels are required for each 32-point module.

Environmental

Operating Temperature Range: −40 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Reason: Because industrial environments require robust and reliable controllers.

Dimensions & Weight

Dimensions: Approximately 230 × 170 × 43 mm

Weight: About 1.5 kg
