Yokogawa NFCP501-W06 | CPU Module for FCN-500 System Rave reviews 30-Day Returns！

Brand：Yokogawa Electric

Item No.：Yokogawa NFCP501-W06

Product origin：Japan

Dimensions:65.8 x 130 x 149.3 mm

Weight:0.9 kg

Formal channels, complete test instructions, and responsive services

Ten thousand models in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

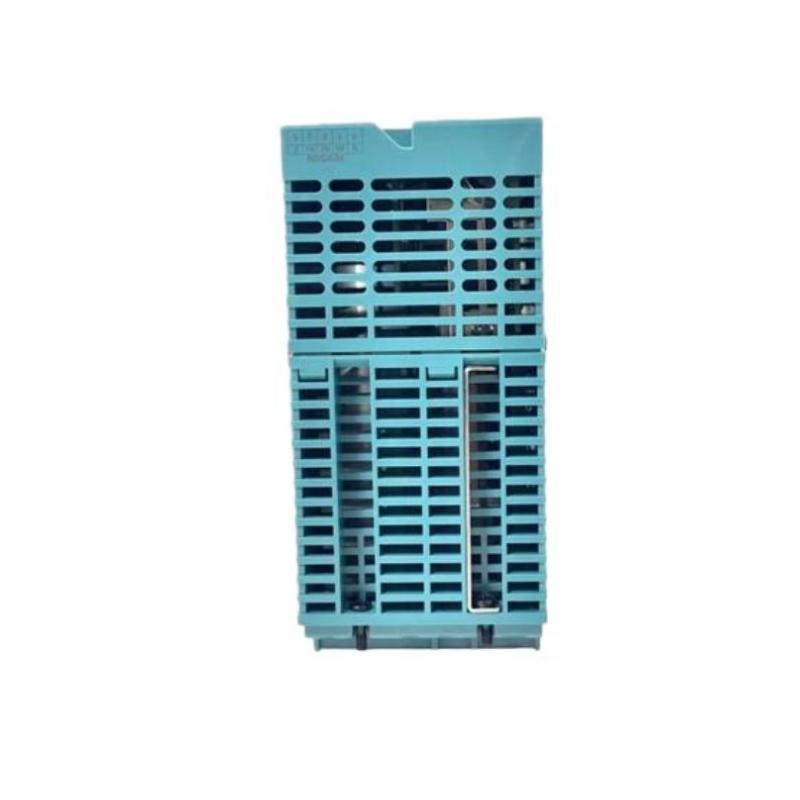

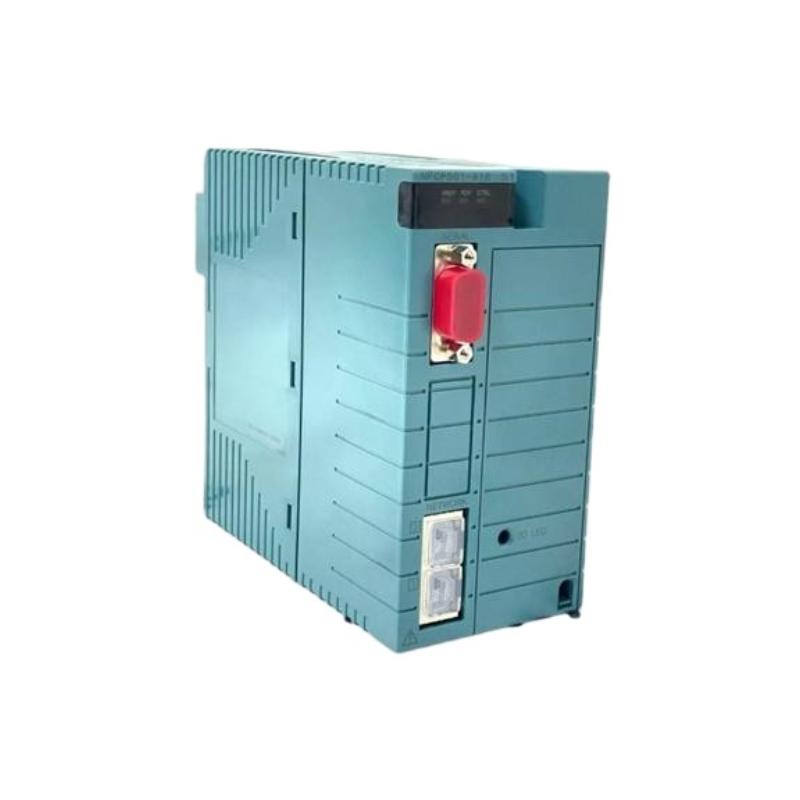

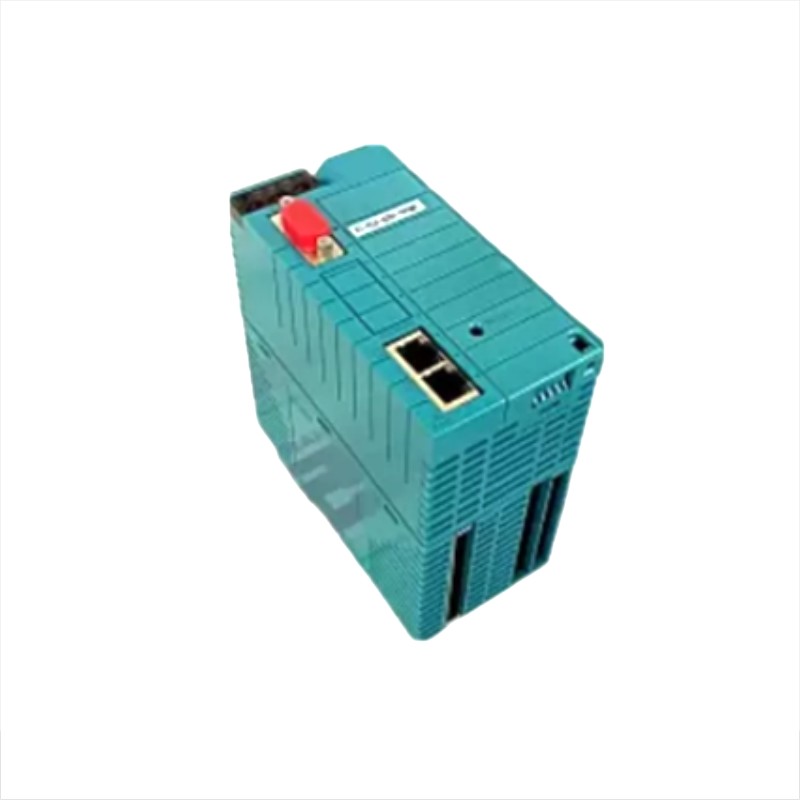

The Yokogawa NFCP501-W06 is a high-performance CPU module designed for the FCN-500 autonomous controller series. It features dual Ethernet ports and supports extended functions for demanding industrial automation and control applications.

General Information
Part Number: NFCP501-W06
Manufacturer: Yokogawa
Series: FCN-500 (CPU module)
Type: CPU Module with 2 Ethernet ports, extended function suffix “-W06”
Mounting: Rack or panel installation within FCN-500 control unit
Country of Origin: Japan

Power Specifications
Supply Voltage: 5 V DC ±5 % (backplane)
Maximum Current Consumption: approx. 1200 mA at 5 V DC
Protection: Includes CPU self-diagnostics, watchdog timer, temperature monitoring, and hot-swap capability

Communication & Interface
Ethernet Ports: 2 × RJ-45 (1000/100/10 Mbps)
Serial Port: 1 × RS-232-C
Processor: Intel Atom E3815, 1.46 GHz
Memory: 256 MB ECC main memory, 2 MB static RAM with battery backup, 1 GB flash memory
Diagnostics: LED indicators for hardware ready, system ready, communication activity, SD card access, CPU status
Redundancy: Supports duplex CPU configuration for high availability

Environmental
Operating Temperature: −20 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5 % to 95 % RH, non-condensing
Protection Rating: IP20 (suitable for indoor control cabinet installations)

Dimensions & Weight
Dimensions: 65.8 x 130 x 149.3 mm

Weight: 0.9 kg

We supply only brand-new original goods, available immediately with live support.

This product is an imported conventional model, with timely delivery. For large purchases, we welcome targeted quotation consultation.
