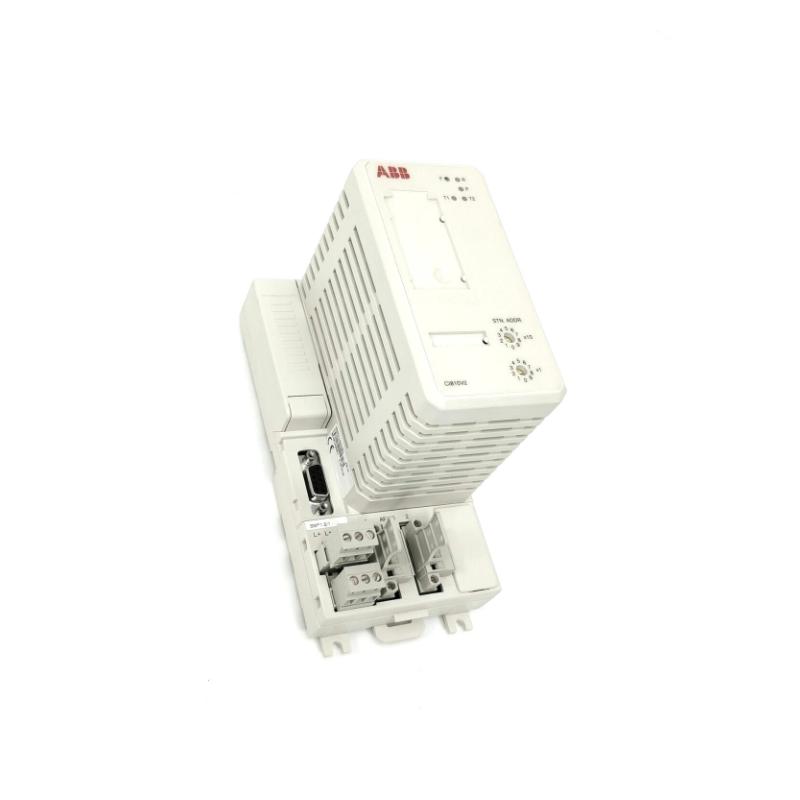

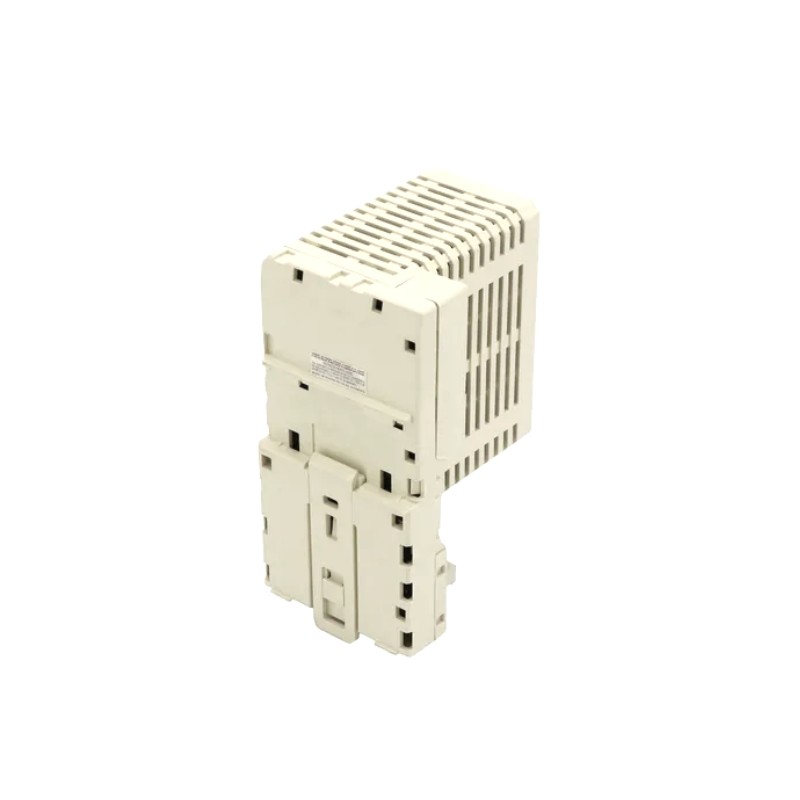

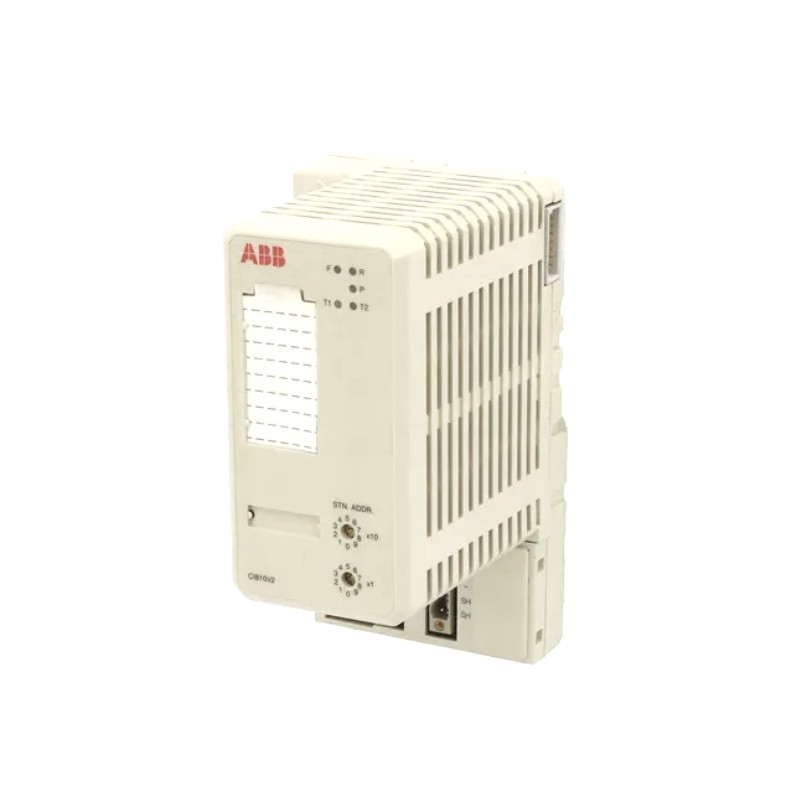

ABB CI810V2 | AF100 Fieldbus Communication Interface Module Shelf life 1 year 100% New

Brand：ABB PLC

Item No.：ABB CI810V2 3BSE013224R1

Product origin：Sweden

Dimensions:234 × 27 × 112.5 mm

Weight:0.5 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The ABB CI810V2 (Part No. 3BSE013224R1) is an advanced AF100 Fieldbus Communication Interface Module designed for ABB’s S800 I/O and 800xA control systems. It provides a high-speed and reliable connection between the AF100 fieldbus network and the controller, enabling efficient data transmission and system integration. With enhanced diagnostics and redundancy support, the CI810V2 ensures stable performance in demanding industrial automation environments.

General Information

Part Number: 3BSE013224R1
Manufacturer: ABB
Series: CI810 Series
Type: AF100 Fieldbus Communication Interface
Mounting: Installed on ABB I/O rack or chassis
Technology: AF100 twisted-pair fieldbus interface with built-in diagnostics, status LEDs, and system bus connection

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Backplane connection from S800 I/O system
Protection: Overvoltage, surge, and reverse-polarity protection
Indicators: LED indicators for Power, Communication, and Fault

Communication & Interface

Protocol: AF100 Fieldbus (Twisted Pair)
Channels: Dual AF100 communication modems
Data Rate: Up to 1.5 Mbit/s
Interface Type: AF100 network interface and backplane control bus
Diagnostics: Link supervision, communication error detection, and device status reporting
Operator Interface: LED indicators and hardware configuration switches
Reset Options: Supports hardware and software reset functions

Environmental

Operating Temperature: −40 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (suitable for installation inside control cabinets)

Dimensions & Weight

Dimensions: 234 × 27 × 112.5 mm

Weight: Approximately 0.5 kg
