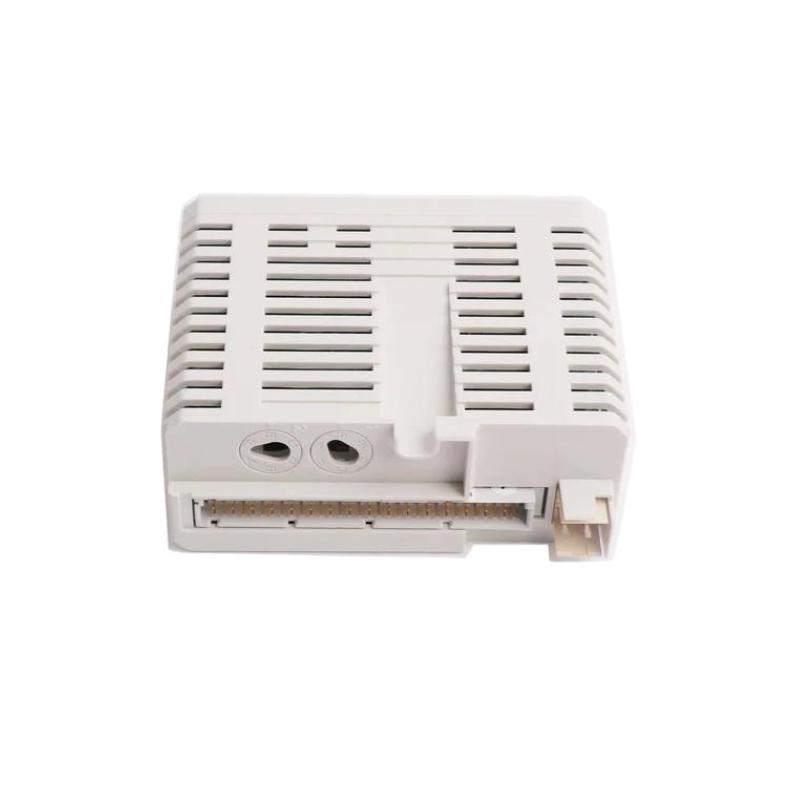

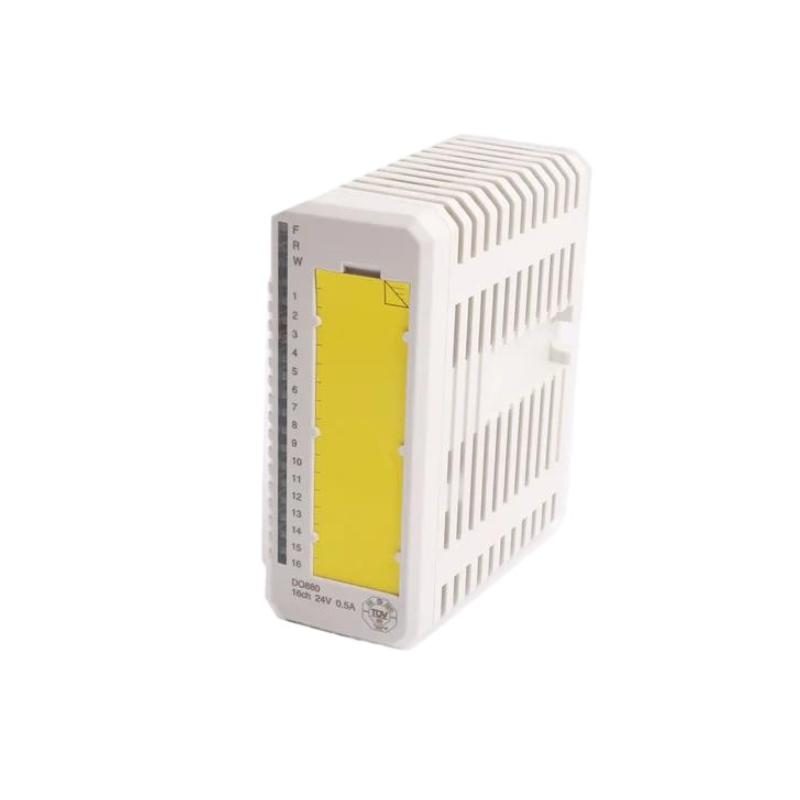

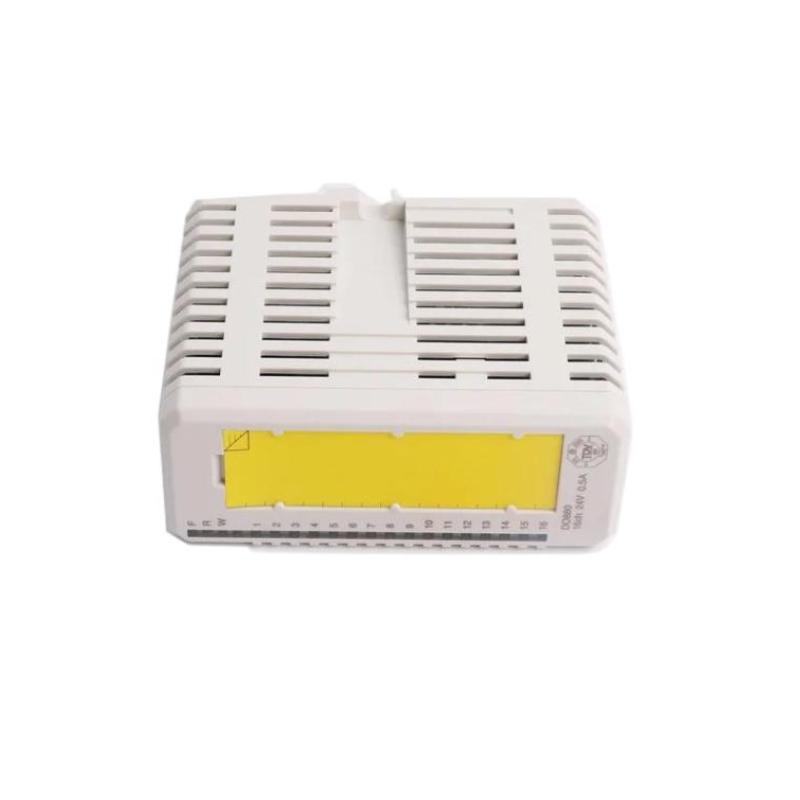

ABB DO880-2 3BSE028603R1 | 16-Channel 24V High-Side Digital Output Module 12-Month Warranty

Brand：ABB PLC

Item No.：ABB DO880-2 3BSE028603R1

Product origin：Sweden

Dimensions:45 x 102 x 119 mm

Weight:0.2 kg

Original source, data support testing content, efficient after-sales processing

Flexible stocking of multiple models, support for quick response, welcome to cooperate and communicate!

Product Introduction：

Overview

The ABB DO880-2 (Part No. 3BSE028603R1) is a 16-channel 24V high-side digital output module designed for ABB’s S800 I/O and AC 800M control systems. It provides reliable and efficient control of field devices in industrial automation applications, supporting both single and redundant configurations. The module is suitable for applications requiring high integrity and safety standards.

General Information

Part Number: 3BSE028603R1

Manufacturer: ABB

Series: DO880 Series

Type: Digital Output Module

Channels: 16

Signal Type: Current sourcing, current limiting

Configuration: Single or redundant

Power Specifications

Supply Voltage: 24 V DC

Maximum Output Current per Channel: 0.5 A

Power Consumption: 5.6 W (0.5 A × 16 channels)

Current Consumption:

+5 V Modulebus: 45 mA

+24 V Modulebus: Max. 50 mA

+24 V External: 10 mA

Communication & Interface

Interface Type: ModuleBus

Isolation: Groupwise isolated from ground

Rated Insulation Voltage: 50 V

Dielectric Test Voltage: 500 V a.c.

Environmental

Operating Temperature: −25 °C to +70 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (H x W x D): 45 x 102 x 119 mm

Weight: 0.2 kg
