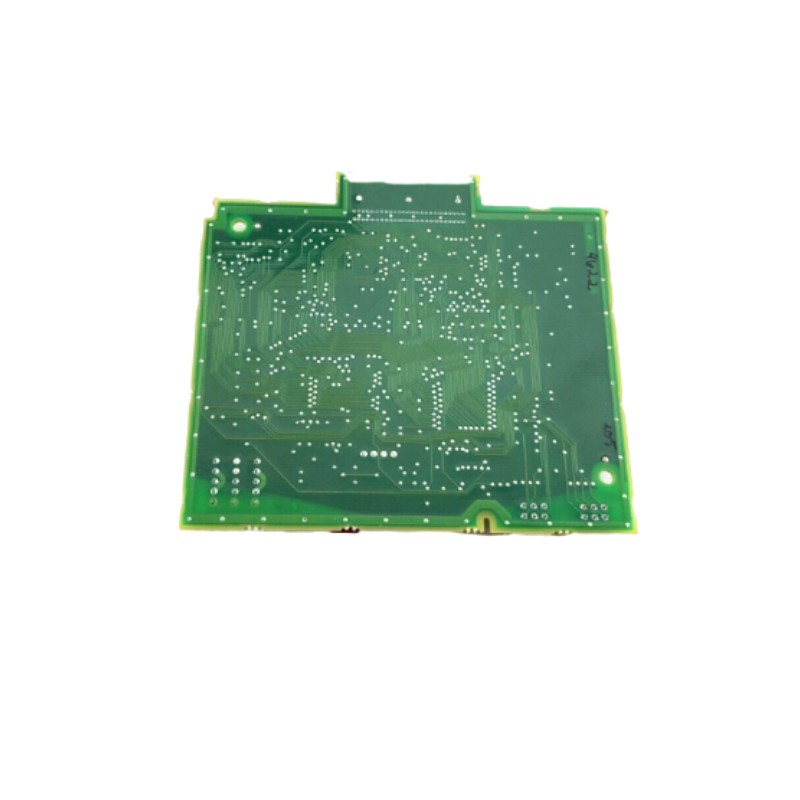

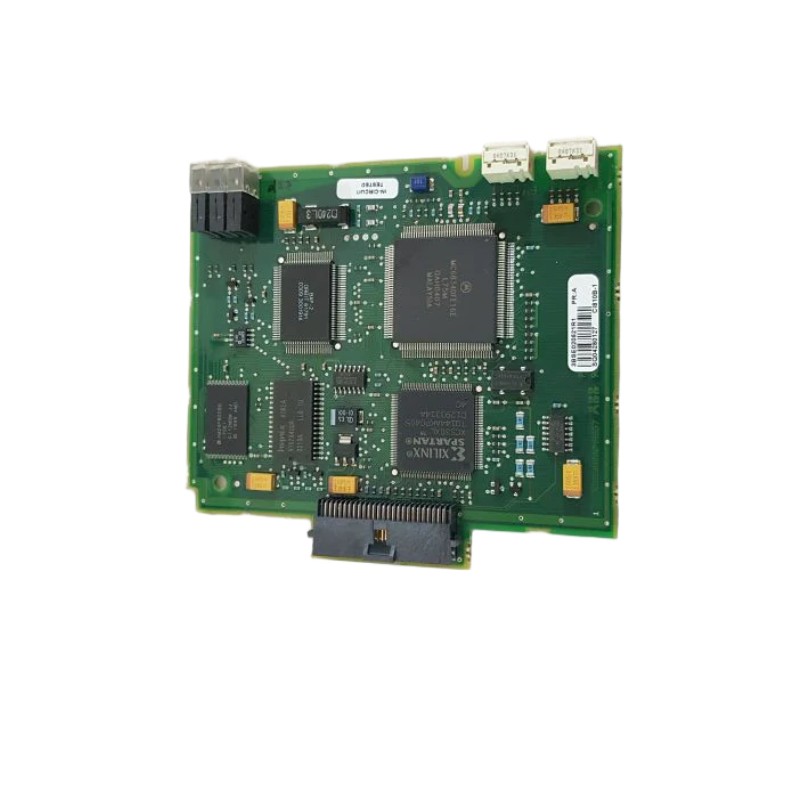

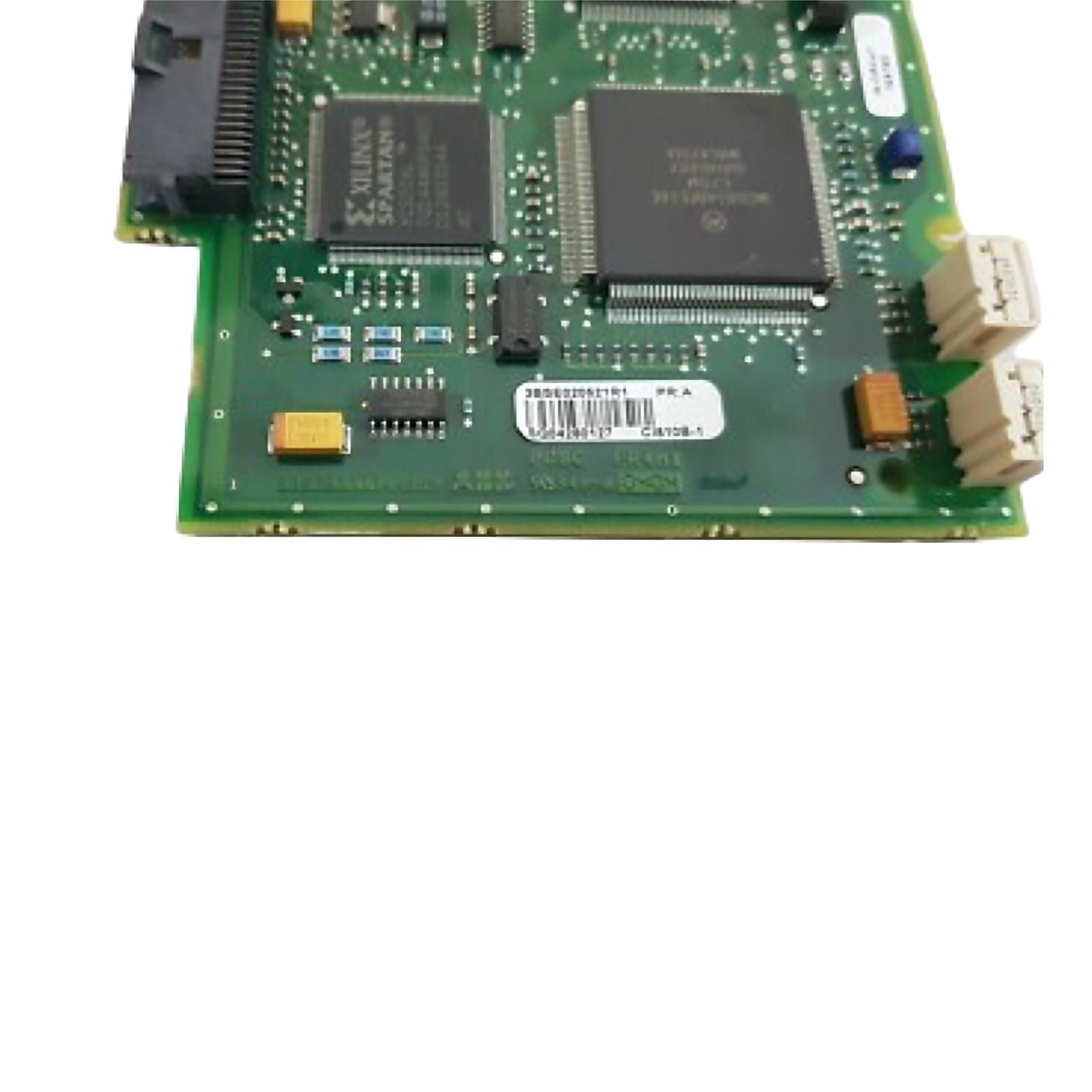

ABB CI810B-1 3BSE020521R1 | Communication Interface Brand new and original 30-Day Returns！

Brand：ABB PLC

Item No.：ABB CI810B-1 3BSE020521R1

Product origin：Sweden

Dimensions:234 × 27 × 112.5 mm

Weight:0.5 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The ABB CI810B-1 (Part No. 3BSE020521R1) is a high-performance AF100 Fieldbus Communication Interface Module designed for ABB’s 800xA, Advant, and S800 I/O control systems. It acts as a bridge between the AF100 fieldbus network and the control system, providing efficient and reliable data communication for process automation applications.

General Information

Part Number: 3BSE020521R1
Manufacturer: ABB
Series: CI800 Series
Type: AF100 Fieldbus Communication Interface
Mounting: Rack or card installation in S800 I/O system
Technology: Dual AF100 twisted-pair modems, redundant network support, diagnostic LEDs

Power Specifications

Supply Voltage: 24 V DC (via backplane connection)
Power Consumption: ≤ 10 W
Input Source: Powered directly from I/O system backplane
Protection: Reverse polarity and surge protection integrated
Indicators: LED indicators for Power, Link, and Fault status

Communication & Interface

Protocol: AF100 Fieldbus (Twisted Pair)
Channels: 2 × AF100 modems
Data Rate: Up to 1.5 Mbit/s
Interface Type: Fieldbus and system backplane
Diagnostics: Network status, link supervision, error reporting
Operator Interface: Status LEDs and configuration switches
Reset Options: Hardware and software reset supported

Environmental

Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH (non-condensing)
Protection Rating: IP20 (for use in protected cabinet)

Dimensions & Weight

Dimensions (L × W × H)：234 × 27 × 112.5 mm

Weight：0.5 kg

Brand-new original units, available immediately with full customer support access.

The product has high delivery efficiency, clear cost structure, and supports bargaining when the quantity demand is large.
