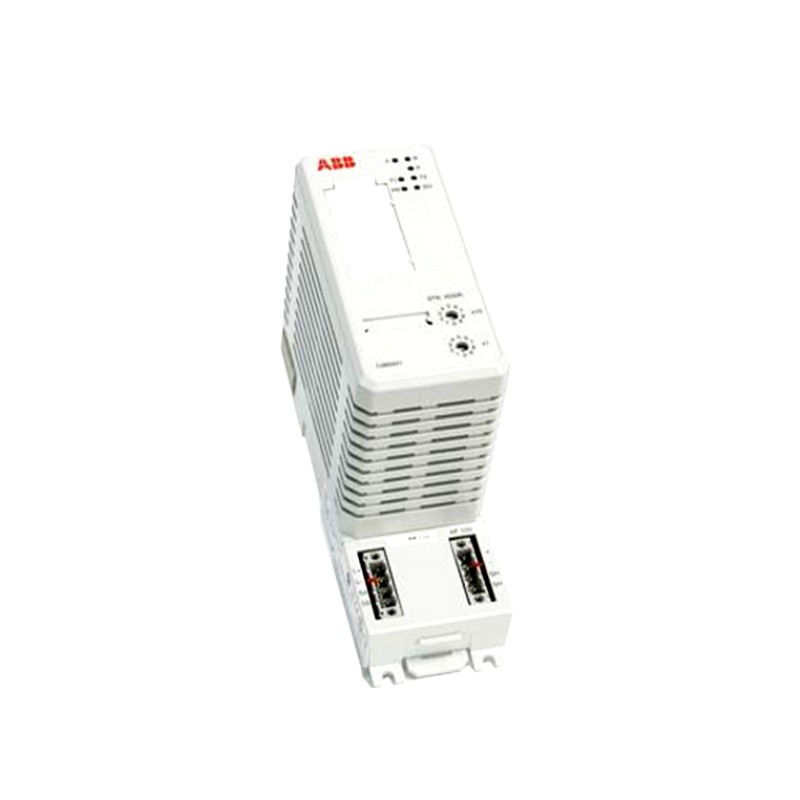

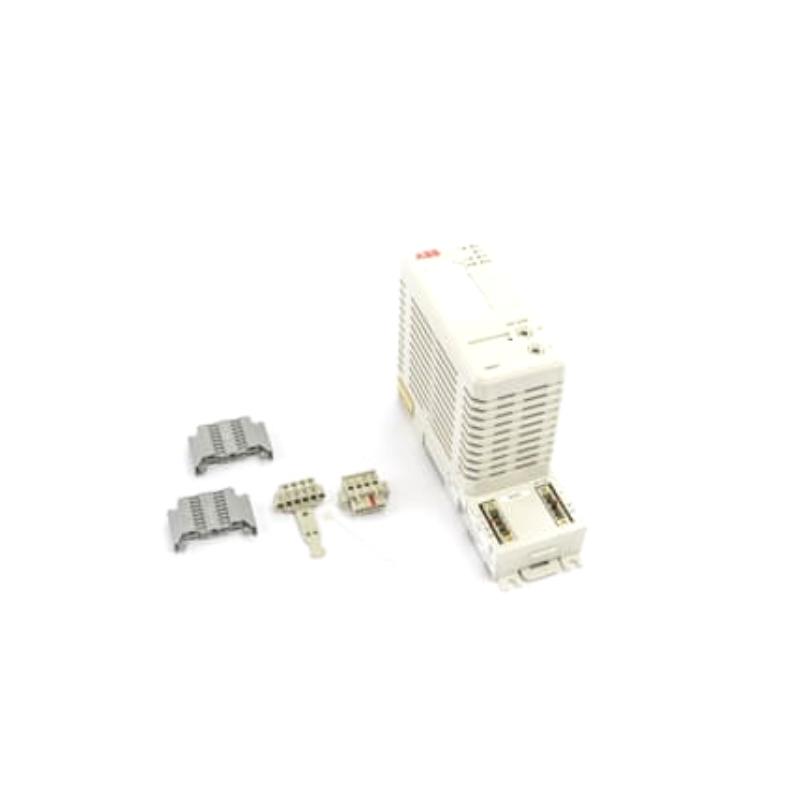

ABB CI820V1 | PROFIBUS DP Communication Interface Module Efficient delivery Fast Shipping!

Brand：ABB PLC

Item No.：ABB CI820V1 3BSE025255R1

Product origin：Sweden

Dimensions:54 x 170 x 122 mm

Weight:0.6 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The ABB CI820V1 (Part No. 3BSE025255R1) is a PROFIBUS DP Communication Interface Module designed for ABB’s S800 I/O and 800xA control systems. It enables seamless communication between the controller and PROFIBUS DP networks, supporting high-speed and reliable data exchange. The module ensures efficient integration of distributed I/O devices and intelligent field instruments within complex automation environments.

General Information

Part Number: 3BSE025255R1
Manufacturer: ABB
Series: CI820 Series
Type: PROFIBUS DP Fieldbus Communication Interface
Mounting: Rack or chassis installation in ABB S800 I/O system
Technology: PROFIBUS DP protocol support, automatic baud rate detection, redundancy capability, and diagnostic LED indicators

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Backplane power from S800 I/O system
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for Power, Communication Link, and Fault

Communication & Interface

Protocol: PROFIBUS DP
Data Rate: 9.6 kbps to 12 Mbps (auto-detect)
Channels: One PROFIBUS DP channel
Interface Type: PROFIBUS connector and backplane interface
Diagnostics: Network error detection, communication monitoring, and device status reporting
Operator Interface: LED indicators for status and activity
Reset Options: Supports both software and hardware reset

Environmental

Operating Temperature: −25 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, suitable for control cabinet installation

Dimensions & Weight

Dimensions: 54 x 170 x 122 mm

Weight: 0.6 kg

Authentic new stock always available, with prompt and professional assistance.

The product logistics is handled quickly, and exclusive solutions are supported to optimize prices when the purchase scale is large.
