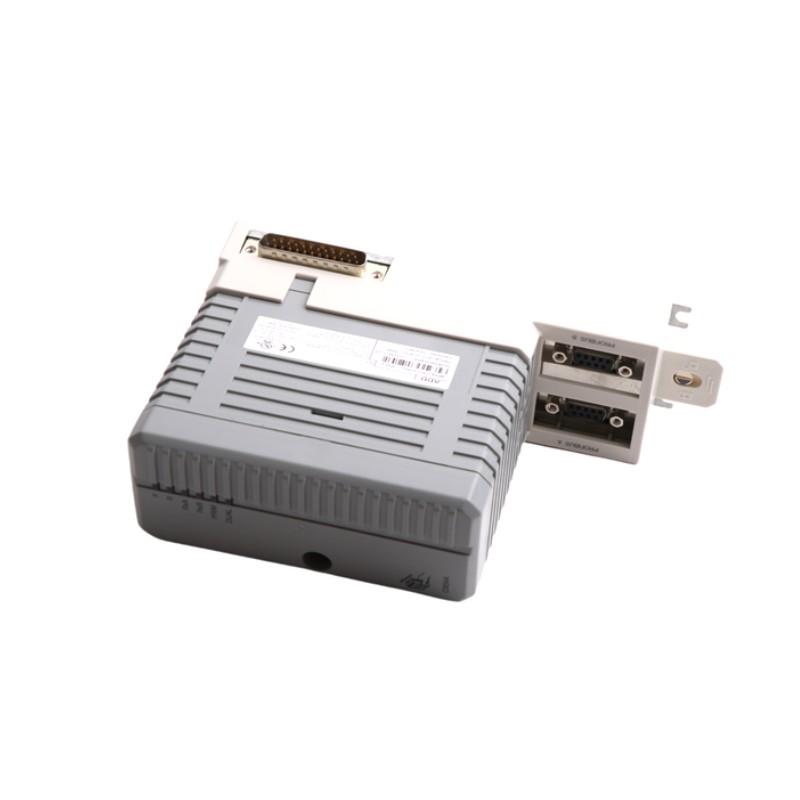

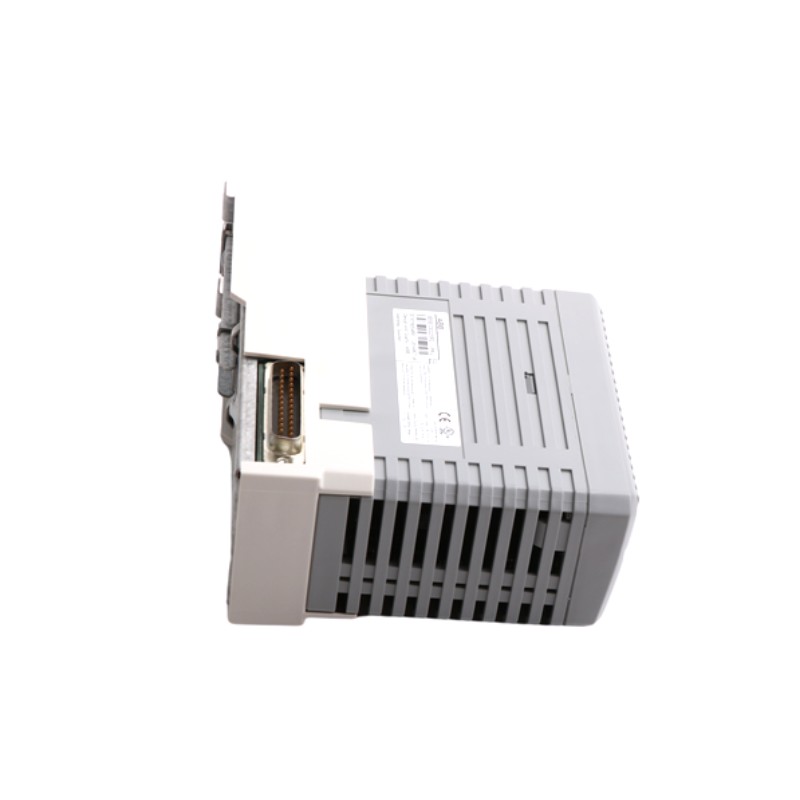

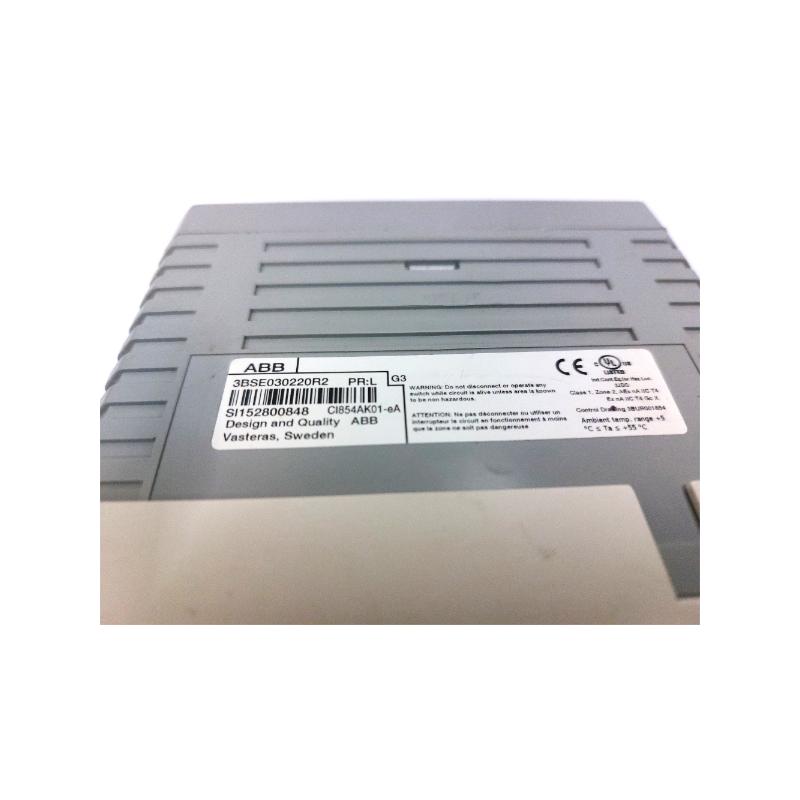

ABB CI854AK01-eA | Ethernet Communication Interface Module Recommended products Trusted supplier

Brand：ABB PLC

Item No.：ABB CI854AK01-eA 3BSE030220R2

Product origin：Sweden

Dimensions:59 x 186 x 127.5 mm

Weight:0.7 kg

Standardized import process, support for testing, guaranteed after-sales

Ten thousand models in stock, quickly match needs, welcome to call for cooperation!

Product Introduction：

Overview

The ABB CI854AK01-eA (Part No. 3BSE030220R2) is an Ethernet communication interface module designed for ABB’s AC 800M controllers and 800xA automation systems. It provides high-speed data transfer between the controller and Ethernet-based field devices or networks, supporting industrial automation applications that require reliable, real-time communication with advanced diagnostic and redundancy features.

General Information

Part Number: 3BSE030220R2
Manufacturer: ABB
Series: CI854 Series
Type: Ethernet Communication Interface Module
Mounting: Rack or DIN rail installation within ABB AC 800M system
Technology: Industrial Ethernet interface with diagnostic LEDs, redundancy support, and secure network integration

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 8 W
Input Source: Controller backplane or dedicated power supply
Protection: Surge, overvoltage, and reverse-polarity protection
Indicators: LEDs for Power, Link Status, Activity, and Fault

Communication & Interface

Protocol: Ethernet (TCP/IP, UDP, Modbus TCP, and ABB-specific protocols)
Channels: One Ethernet interface
Data Rate: 10/100 Mbps
Interface Type: Industrial Ethernet port with backplane communication to controller
Diagnostics: Link supervision, network error detection, and module status monitoring
Operator Interface: LED indicators and configuration switches
Reset Options: Supports hardware and software reset

Environmental

Operating Temperature: −25 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, suitable for installation inside control cabinets

Dimensions & Weight

Dimensions: 59 x 186 x 127.5 mm

Weight: 0.7 kg
