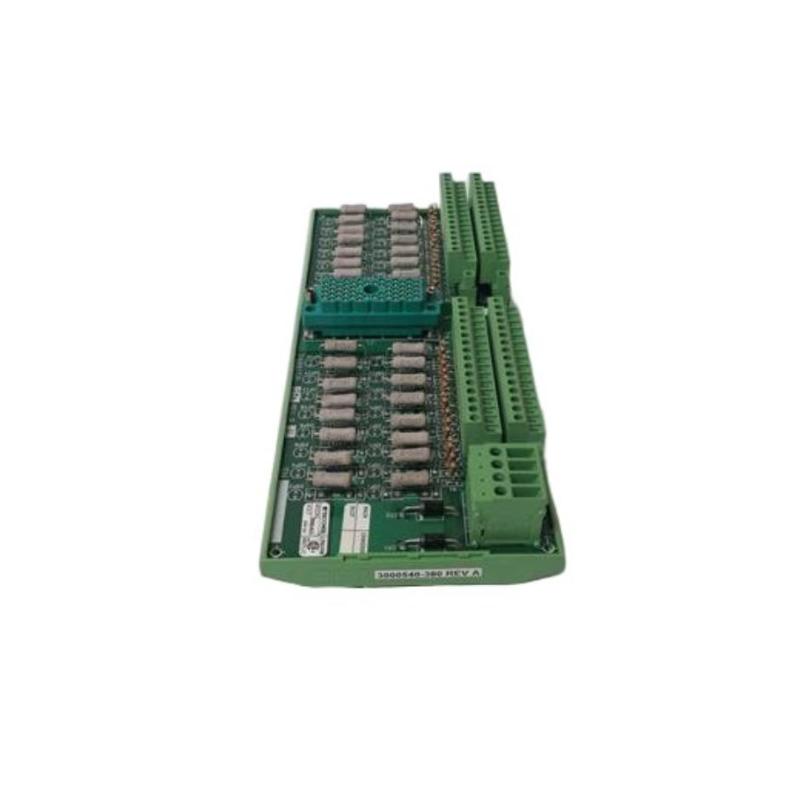

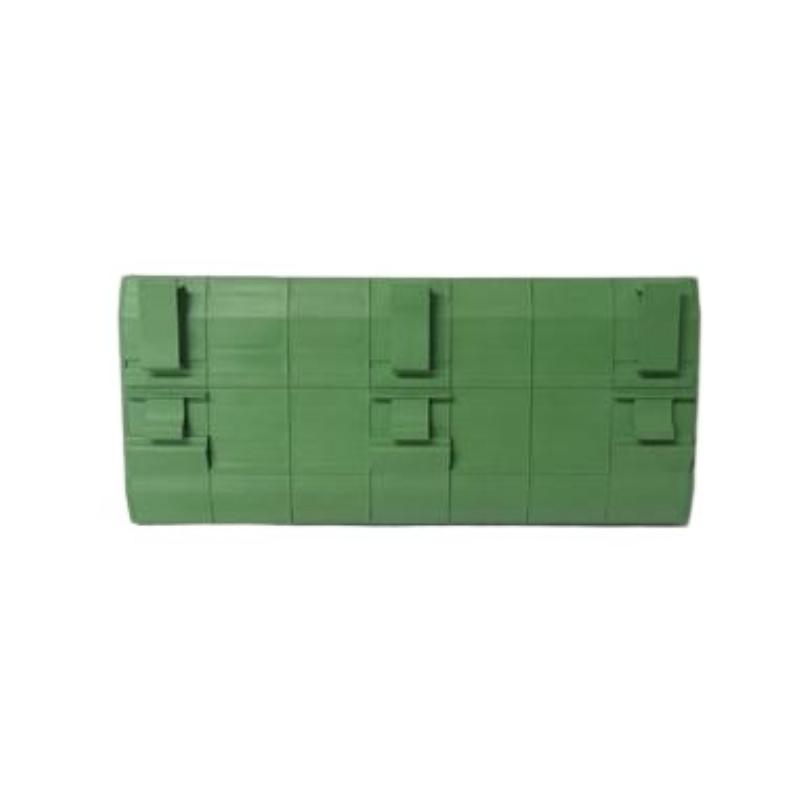

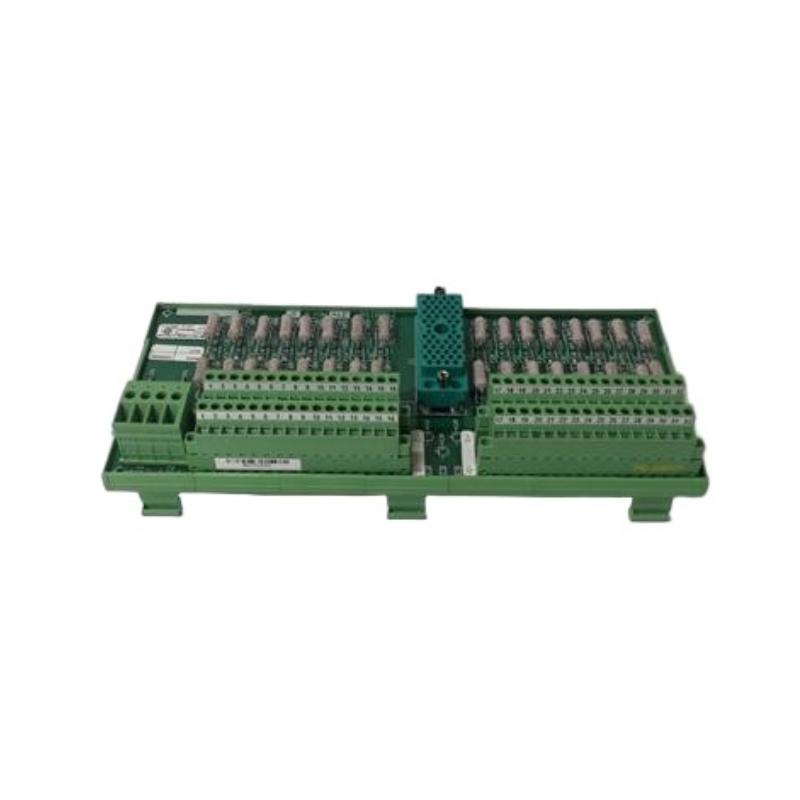

Triconex 9566-810 | 32-Point Commoned Digital Input Termination Panel Original 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 9566-810

Product origin：USA

Dimensions:340 × 250 × 50 mm

Weight:1.2 kg

Original source, data supports testing content, efficient after-sales processing

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The Triconex 9566-810 is a 32-point digital input termination panel designed for use with Triconex safety and control systems. It provides a reliable interface for connecting digital signals from field devices to the Tricon controller, ensuring organized and protected connections in safety-critical industrial applications.

General Information

Model Number: 9566-810

Type: Digital Input Termination Panel

Compatibility: Triconex v9 and v10 systems

Country of Origin: USA

Mounting: Panel or cabinet installation

Power Specifications

Operating Voltage: 24 V DC

Power Terminals: Commoned (PWR+ and PWR–)

Current Protection: Each input point is protected by a 180-ohm current-limiting resistor

Reason: Because stable and protected power ensures reliable operation in industrial environments.

Communication & Interface

Interface Type: Terminal block connections for field wiring

Number of Input Points: 32

Function: Facilitates secure and organized routing of digital input signals to the controller

Module Compatibility: Compatible with 64-point digital input modules (e.g., 3504E), requiring two termination panels for each module

Usage: Two termination panels are required for each 64-point module

Environmental

Operating Temperature Range: −15 °C to +60 °C

Protection Rating: IP20

Reason: Because industrial environments require durable and reliable components.

Dimensions & Weight

Dimensions: Approximately 340 × 250 × 50 mm

Weight: About 1.2 kg

100% new original components, ready in stock, supported by 24-hour communication.

This product has flexible delivery arrangements, suitable for rapid deployment needs, and supports tiered quotations for large purchases.
