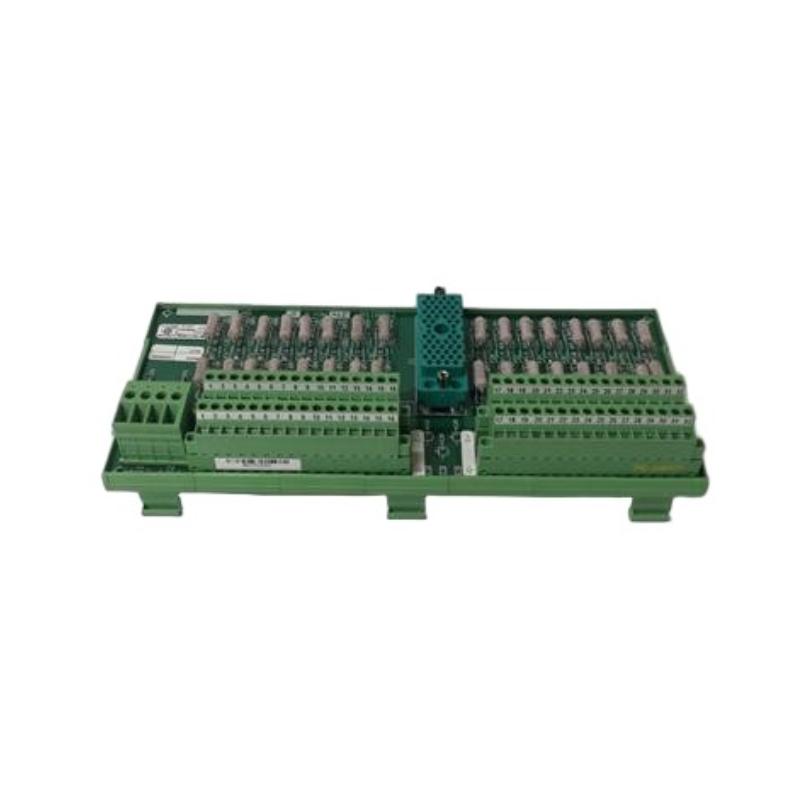

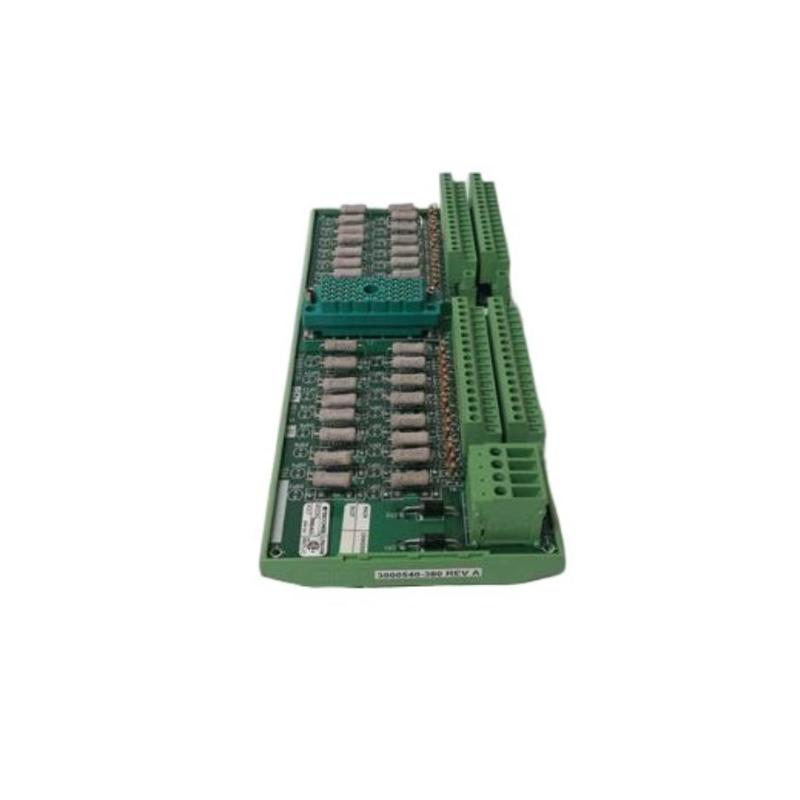

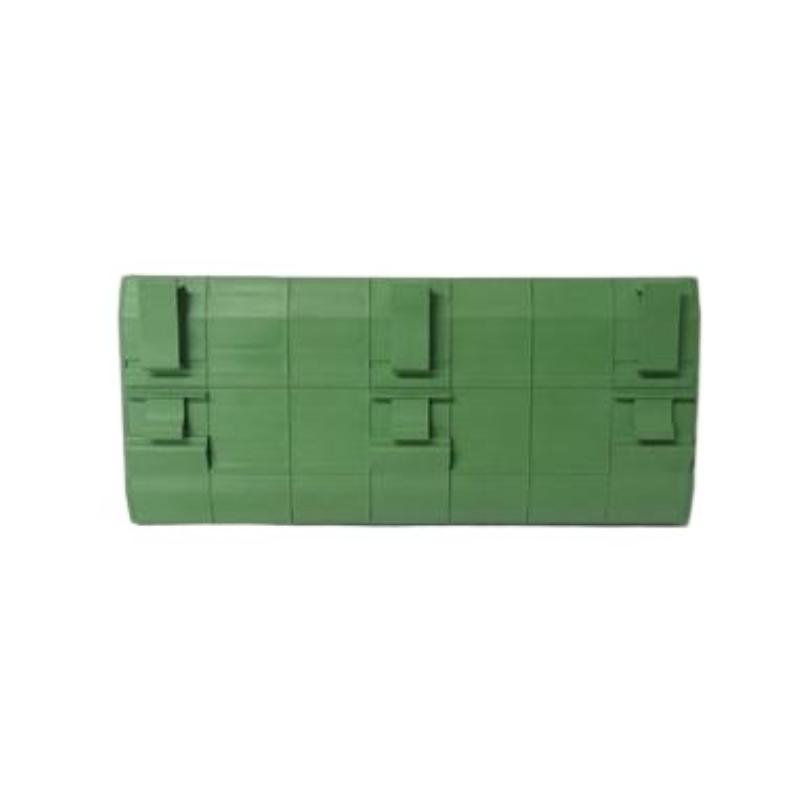

Triconex 9561-810 | Digital Input Termination Panel Price Advantage 100% New

Brand：Invensys Triconex

Item No.：Triconex 9561-810

Product origin：USA

Dimensions:200 x 60 x 40 mm

Weight:0.5 kg

The channel is formal, the test instructions are complete, and the service is responsive

Regular models are in stock for a long time, and the inventory is stable. Please inquire about the price!

Product Introduction：

Overview
The Triconex 9561-810 is a digital input termination panel designed for use with 115V AC digital input modules in Tricon v9 and v10 systems. It provides 16 input points with commoned power terminals (PWR+ and PWR–), each protected by a 1A slow-blow fuse with a blown-fuse indicator. This panel is compatible with 32-point digital input modules, requiring two panels for each module.

General Information

Model Number: 9561-810

Type: Digital Input Termination Panel

Compatibility: Tricon v9 and v10 systems

Country of Origin: USA

Power Specifications

Operating Voltage: 115V AC

Power Terminals: Commoned (PWR+ and PWR–)

Leakage Current per Point:

Maximum: 3.3 mA

Typical: 2.5 mA

Fuse Protection: 1A slow-blow fuse with LED indicator

Reason: Because stable and protected power ensures reliable operation in industrial environments.

Communication & Interface

Interface Type: Terminal block connections for field wiring

Number of Input Points: 16

Function: Facilitates secure and organized wiring for digital input signals from field devices to the Tricon controller.

Modules Compatible:

3501E: 32-point, 115V AC/DC, non-commoned, isolated, TMR

3501T: 32-point, 115V AC/DC, non-commoned, isolated, TMR

Usage: Two termination panels are required for each 32-point module.

Environmental

Operating Temperature Range: 0°C to 60°C

Storage Temperature Range: -40°C to 85°C

Humidity: 0% to 95% RH, non-condensing

Protection Rating: IP45

Reason: Because robust environmental tolerance ensures reliable operation in industrial settings.

Dimensions & Weight

Dimensions: 200 x 60 x 40 mm

Weight: Approximately 0.5 kg

Brand-new original goods, large inventory, and responsive support anytime.

The product delivery cycle is faster than the regular cycle, and the unit price supports a moderate reduction based on the order volume.
