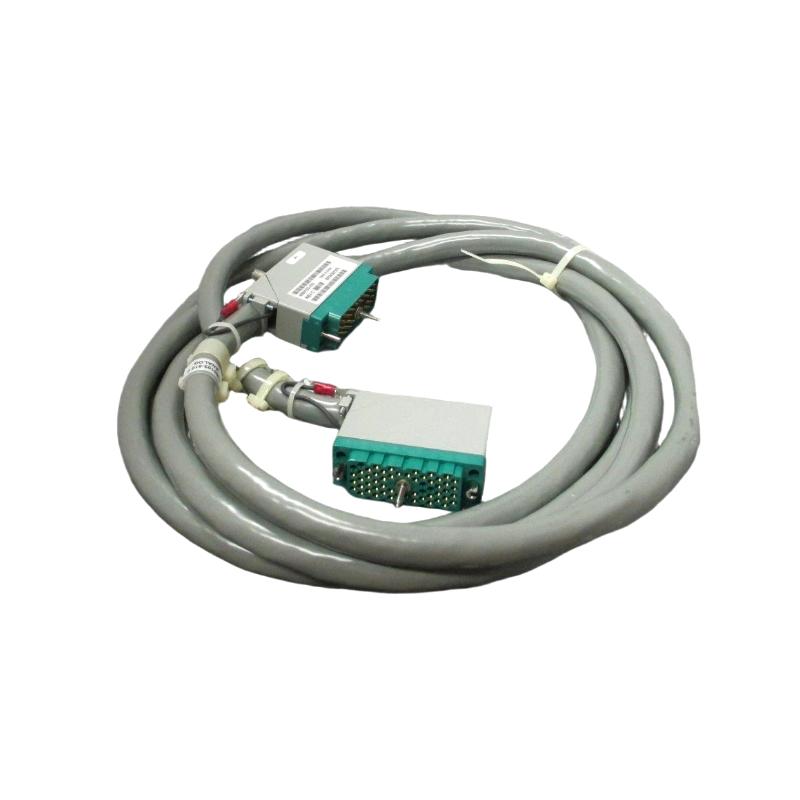

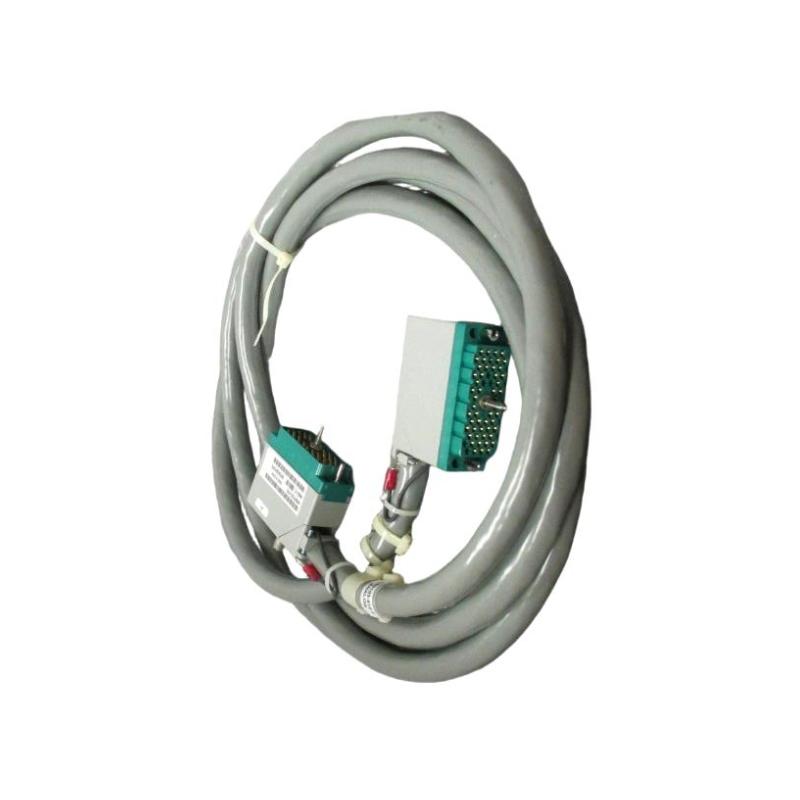

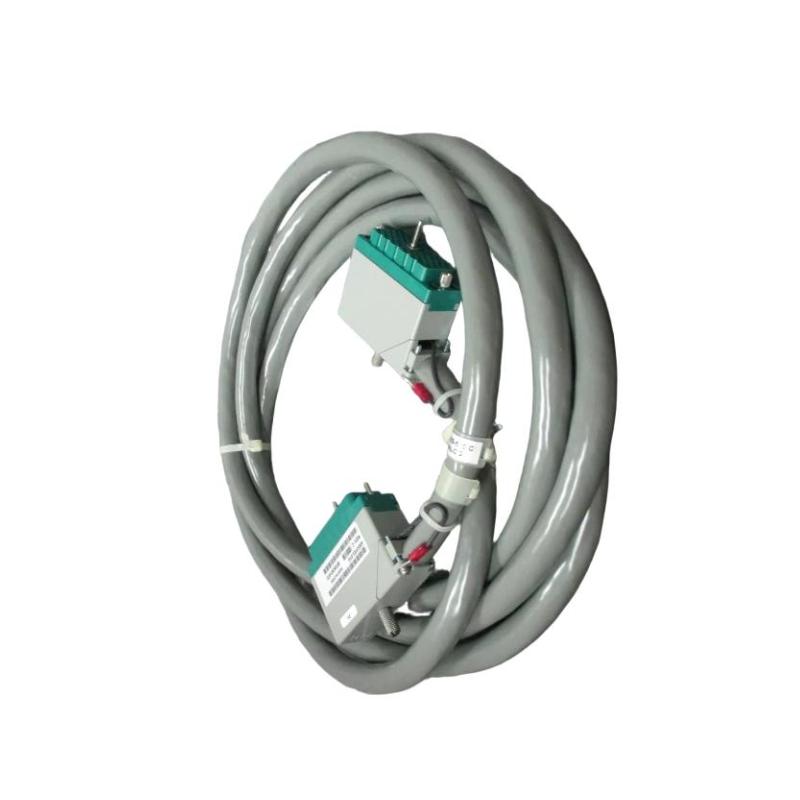

Triconex 9101-010F | Fanned-Out Cable for Digital I/O Modules Original Original

Brand：Invensys Triconex

Item No.：Triconex 9101-010F

Product origin：USA

Dimensions:Cable Length: Optional

Weight:3 kg

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview
The Triconex 9101-010F is a fanned-out cable designed for Triconex Safety Instrumented Systems (SIS) to provide a reliable connection for digital input/output modules. It offers a flexible and cost-effective solution for linking field signals to the Tricon controller backplane because secure and organized wiring is critical for safety applications.

General Information

Model Number: 9101-010F

Type: Fanned-Out Cable

Compatibility: Triconex digital I/O modules

Country of Origin: USA

Power Specifications

Power Supply: Powered through connected I/O modules

Voltage Rating: Compatible with standard module I/O levels

Reason: Because stable voltage delivery ensures proper signal transmission

Communication & Interface

Connector Type: 56-pin female connector to Tricon controller backplane

Number of Wires: 50 individually labeled 22 AWG tinned copper wires

Cable Type: PVC jacket, suitable for industrial environments

Maximum Length: Up to 27.4 m (90 ft) for remote connections

Function: Provides organized and secure routing of digital signals from field devices to controller modules

Diagnostics: Compatible with module-level diagnostics

Environmental

Operating Temperature: −20 °C to +70 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Suitable for installation inside industrial control cabinets

Reason: Because industrial wiring must tolerate typical environmental variations

Dimensions & Weight

Cable Length: Optional

Weight: 3 kg

All items are verified new and original, available in stock for fast dispatch.

The price range of this product is flexible, the delivery is fast, and large quantities support project negotiation.
