ABB DSAO 120A 3BSE018293R1 | 8-Channel Analog Output Module Hot Items 12-Month Warranty

Brand：ABB PLC

Item No.：ABB DSAO 120A 3BSE018293R1

Product origin：Sweden

Dimensions:324 x 27 x 234 mm

Weight:0.372 kg

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

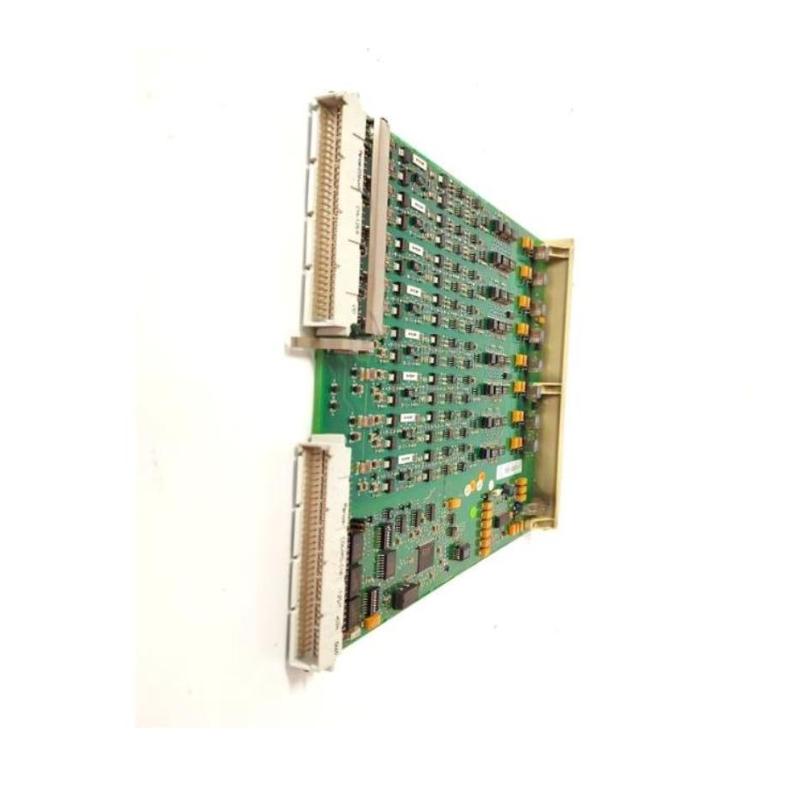

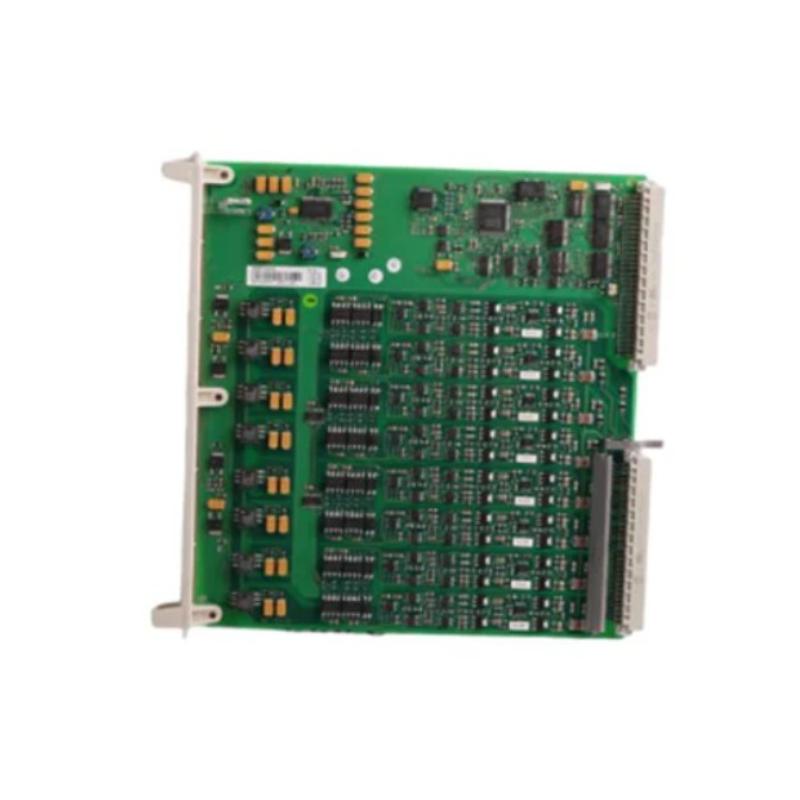

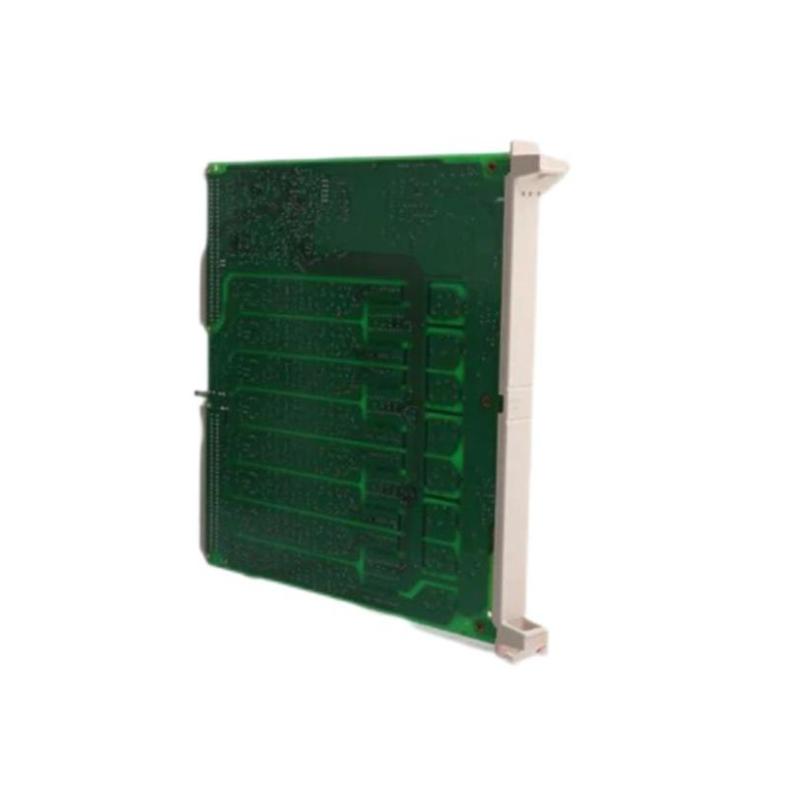

The ABB DSAO 120A (Part No. 3BSE018293R1) is an 8-channel analog output module designed for integration into ABB’s Advant OCS and S100 I/O systems. It provides precise and reliable analog signal output, facilitating seamless communication between the control system and field devices in industrial automation applications.

General Information

Part Number: 3BSE018293R1

Manufacturer: ABB

Series: DSAO Series

Type: Analog Output Module

Channels: 8

Output Types: Voltage (±10 V) and Current (4–20 mA)

Resolution: 12 bits

Mounting: Compatible with Advant OCS and S100 I/O systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approximately 2 W

Input Source: Powered via the I/O system backplane

Protection: Overvoltage and reverse-polarity protection

Communication & Interface

Interface Type: I/O system backplane

Signal Conditioning: Built-in for voltage and current outputs

Isolation: Groupwise isolated from ground

Dielectric Test Voltage: 500 V a.c.

Environmental

Operating Temperature: −25 °C to +70 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (H x W x D): 324 x 27 x 234 mm

Weight:0.372 kg
