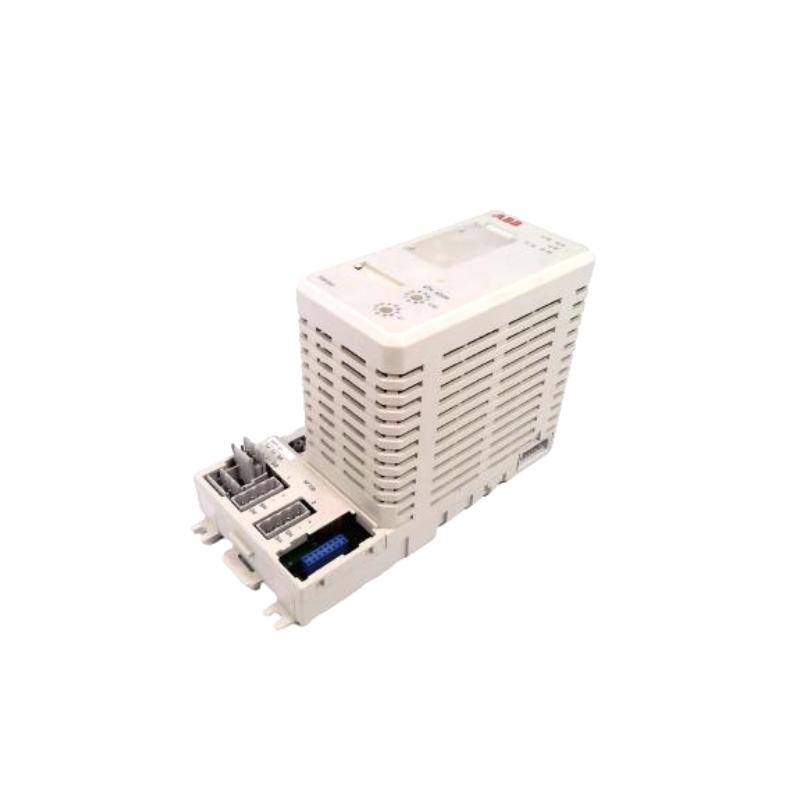

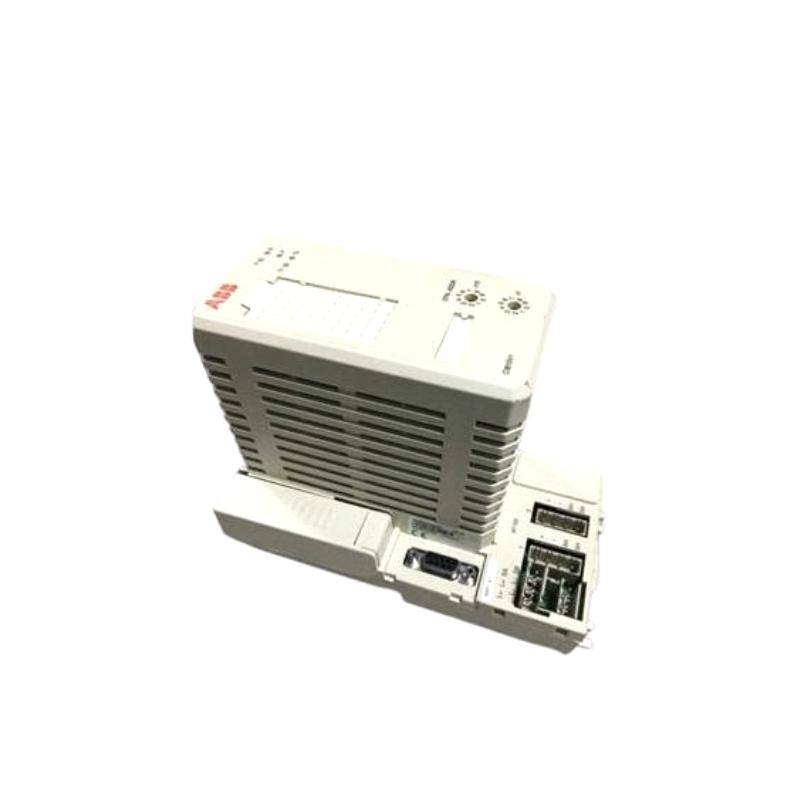

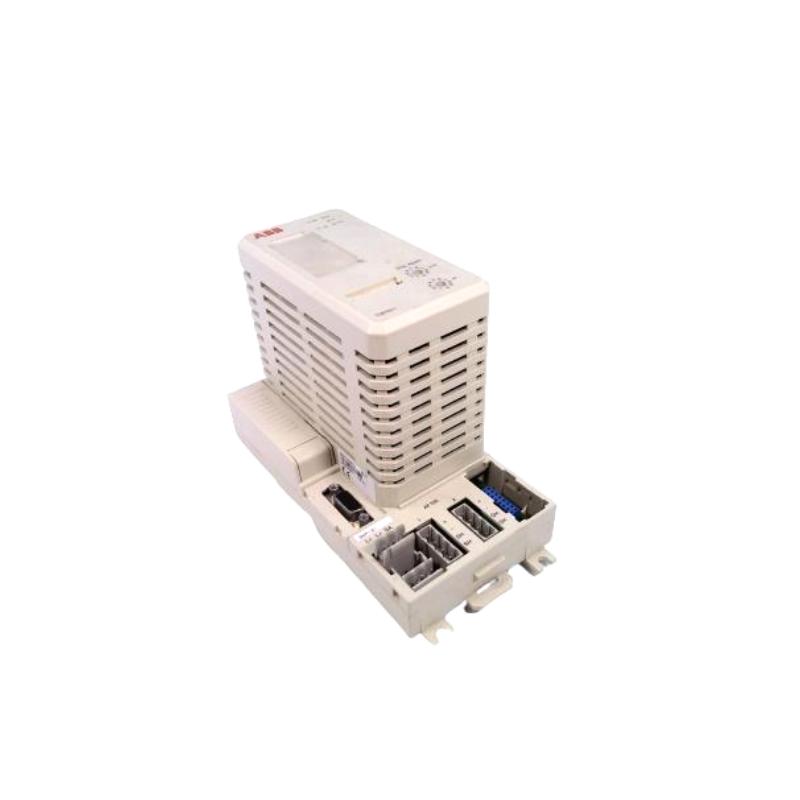

ABB CI810V1 3BSE008584R1 | AF100 Field Communication Interface Module 100% New

Brand：ABB PLC

Item No.：ABB CI810V1 3BSE008584R1

Product origin：Sweden

Dimensions:127 × 102 × 178 mm

Weight:0.5 kg

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

There are rich models in stock, which support quick docking of procurement needs, welcome to inquire for details!

Product Introduction：

Overview

The ABB CI810V1 (Part No. 3BSE008584R1) is a reliable AF100 field communication interface module developed for ABB’s S800 I/O and 800xA control systems. It provides a seamless connection between field devices and the control network, ensuring fast and accurate data transmission in industrial automation environments. This module is widely used in process control applications that require stable and redundant communication performance.

General Information

Part Number: 3BSE008584R1
Manufacturer: ABB
Series: CI810 Series
Type: AF100 Field Communication Interface Module
Mounting: Rack or chassis installation within ABB I/O system
Technology: AF100 fieldbus interface, diagnostic LEDs, redundancy support, firmware configurable

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: Approx. 1.5 W
Input Source: Backplane supply from S800 I/O rack
Protection: Overvoltage, surge, and reverse-polarity protection
Indicators: LEDs for Power, Communication, and Fault

Communication & Interface

Protocol: AF100 Fieldbus (Twisted Pair)
Channels: Single AF100 communication port
Data Rate: Up to 1.5 Mbit/s
Interface Type: Fieldbus connection via AF100 cable and backplane communication to controller
Diagnostics: Link supervision, fault detection, and communication status monitoring
Operator Interface: LED status indicators and configuration switches
Reset Function: Hardware and software reset supported

Environmental

Operating Temperature: −20 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, designed for installation in control cabinets

Dimensions & Weight

Dimensions: 127 × 102 × 178 mm

Weight: Approximately 0.5 kg

All products are genuine and unused, with ready stock and professional service.

The product has a cost-effective advantage, timely supply, and a large quantity has a step-by-step discount space.
