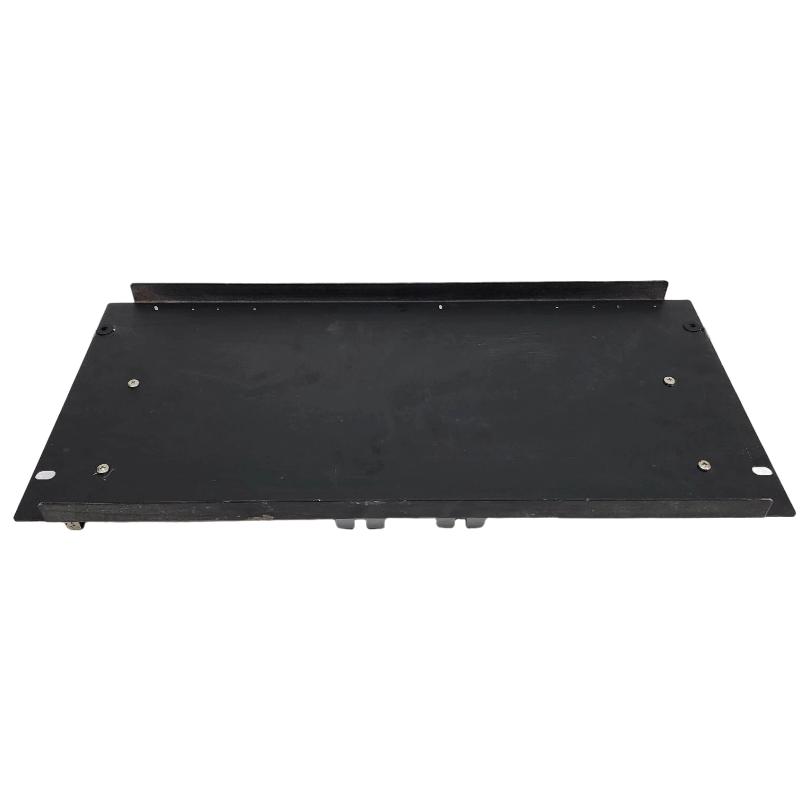

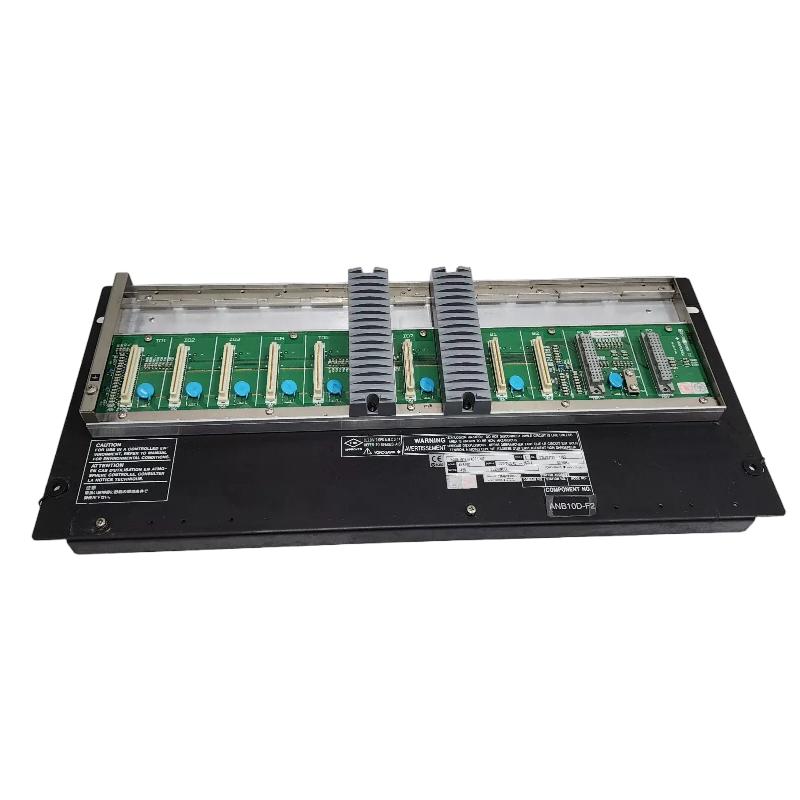

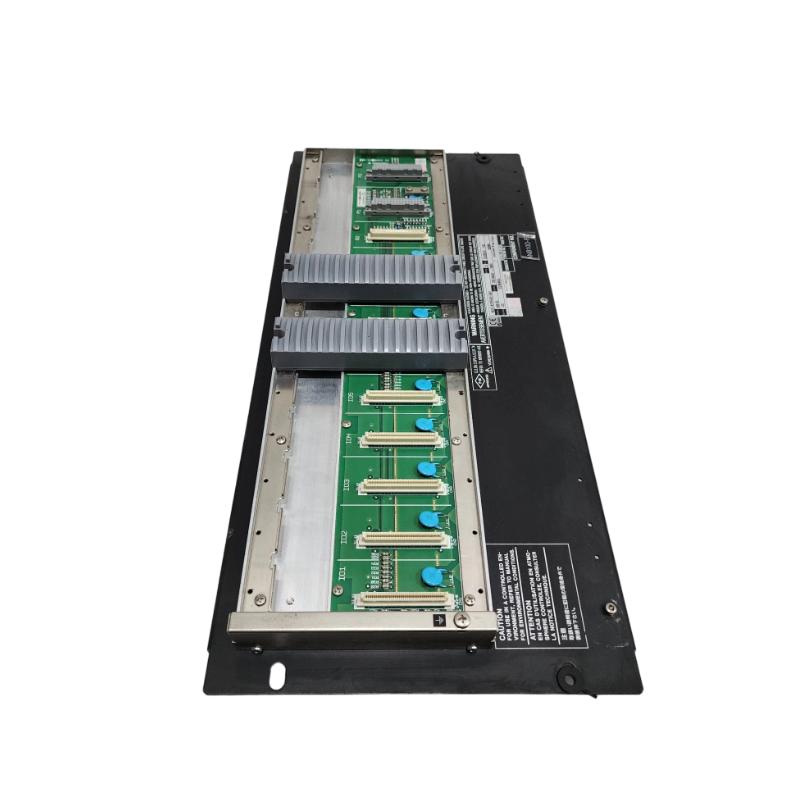

Yokogawa ANB10D-415/CU2T | I/O Node Interface Module 12-Month Warranty Trusted supplier

Brand：Yokogawa Electric

Item No.：Yokogawa ANB10D-415/CU2T

Product origin：Japan

Dimensions:482.6 × 221.5 × 205 mm

Weight:10 kg

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The Yokogawa ANB10D-415/CU2T is an advanced I/O node interface module designed for Yokogawa CENTUM CS 3000 and ProSafe-RS systems. It serves as a high-speed communication bridge between control processors and field I/O units, providing reliable data exchange and system flexibility in distributed automation environments.

General Information

Part Number: ANB10D-415/CU2T

Manufacturer: Yokogawa

Brand Origin: Japan

Series: ANB10D

Type: I/O Node Interface Module

Function: Links I/O modules with control network

Mounting Options: Rack or chassis installation

Application: Industrial process control and distributed automation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approx. 7 W

Protection: Reverse polarity and surge protection

Indicators: LEDs for power, communication, and system fault

Communication & Interface

Interface Type: Vnet/IP or control bus connection

Supported Protocols: Ethernet-based communication

Diagnostics: Communication error monitoring and node status reporting

Data Transfer Rate: 100 Mbps

Connection Ports: Dual RJ45 for redundant communication

Redundancy: Fully supported for system reliability

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: −20°C to +70°C

Humidity: 5% to 95% RH, non-condensing

Protection Class: IP20

Dimensions & Weight

Dimensions: 482.6 × 221.5 × 205 mm

Weight: 10 kg

Factory-sealed brand-new goods, quick response, and transparent prices.

The product supports project procurement, fast delivery, high price matching, and discounts can be coordinated for bulk orders.
