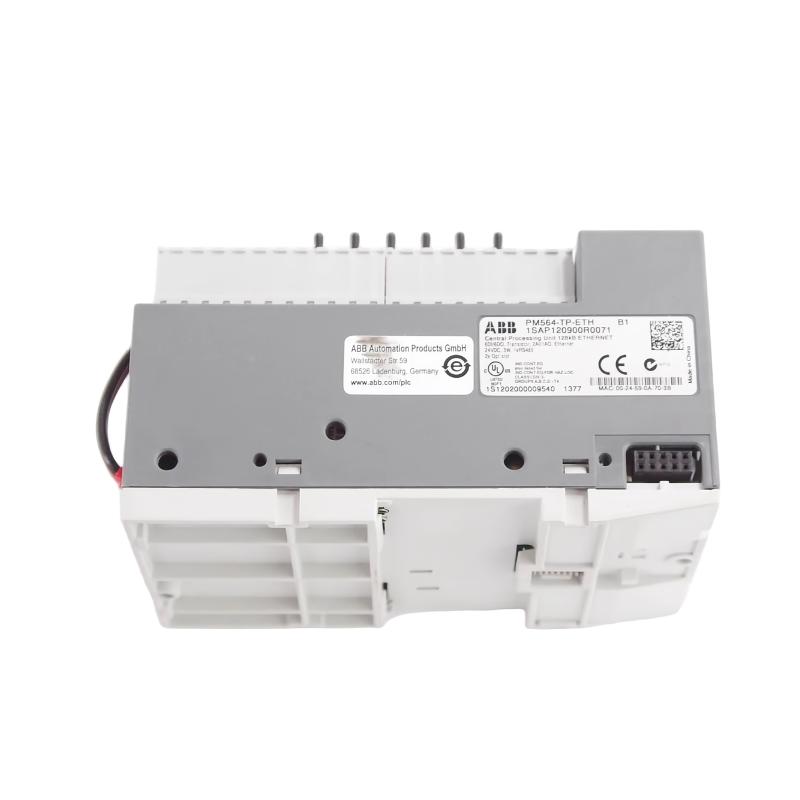

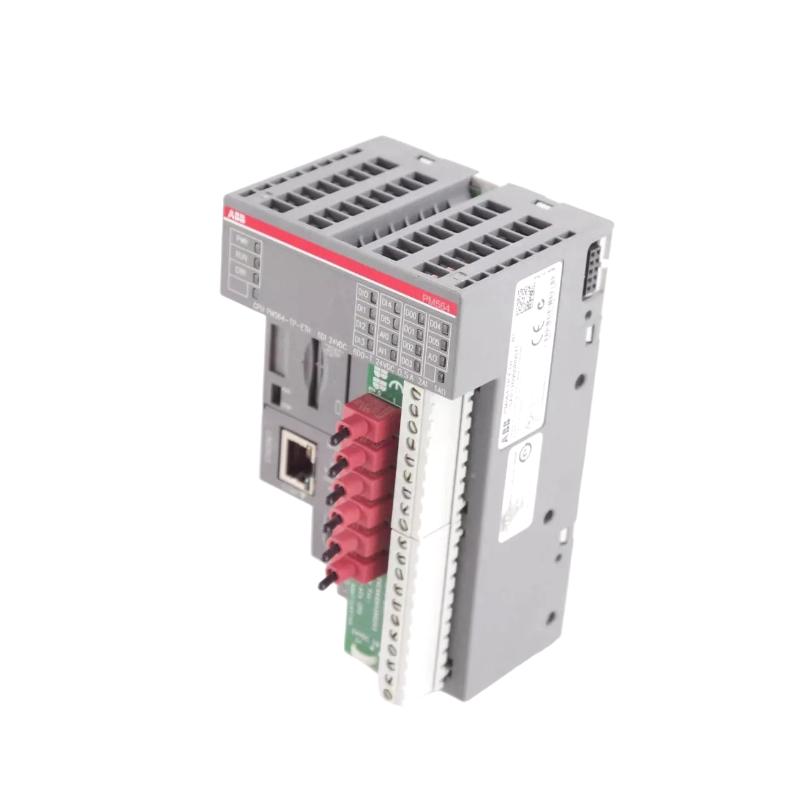

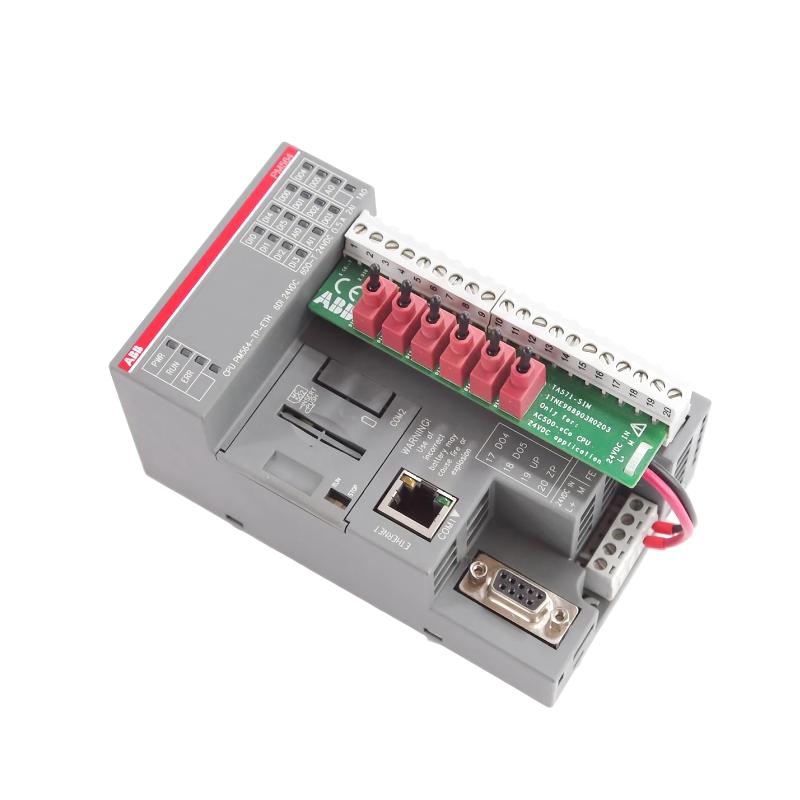

ABB PM564-TP-ETH 3ABD00033169 | Processor Module Thoughtful service Original

Brand：ABB PLC

Item No.：ABB PM564-TP-ETH 3ABD00033169

Product origin：Sweden

Dimensions:74 × 135 × 82 mm

Weight:0.29 kg

Compliant import, support for cooperative testing, and fast response to after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The ABB PM564-TP-ETH is a compact CPU module for the AC500 PLC series, designed to provide reliable control performance with integrated Ethernet capability. It supports standardized communication, modular expansion, and stable operation in industrial automation environments.

General Information

Part Number: 3ABD00033169
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: AC500
Type: Processor Module (CPU with Ethernet)
Mounting: DIN-rail installation
Technology: Integrated Ethernet, compact CPU architecture

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: Low-power CPU module
Input Source: External 24 V DC supply
Protection: Overvoltage, overload, and reverse-polarity protection
Indicators: LEDs for RUN, ERR, COM, ETH status

Communication & Interface

Ethernet Port: Integrated Ethernet (programming & communication)
System Role: Main CPU for AC500 control applications
Diagnostics: Built-in self-diagnostic and fault indication
Operator Interface: LED indicators and engineering tool configuration
Reset Features: Hardware and software reset support

I/O & Channels

Local I/O: Expandable via S500 I/O modules
Function: Executes user control logic and manages I/O communication
External Load Support: Not applicable (logic and communication only)

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for closed industrial control panels

Dimensions & Weight

Dimensions (L × W × H): 74 × 135 × 82 mm
Weight: ~ 0.29 kg

Authentic new stock, always ready for delivery and quotation.

The import information of this product is complete, the delivery is flexible, the price is moderate, and price support is provided in bulk.
