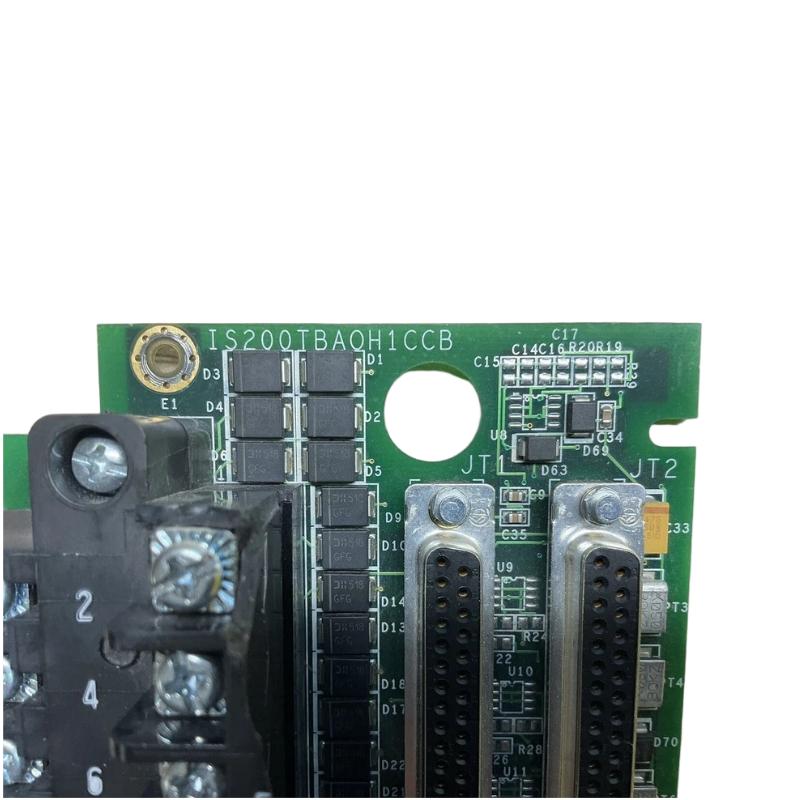

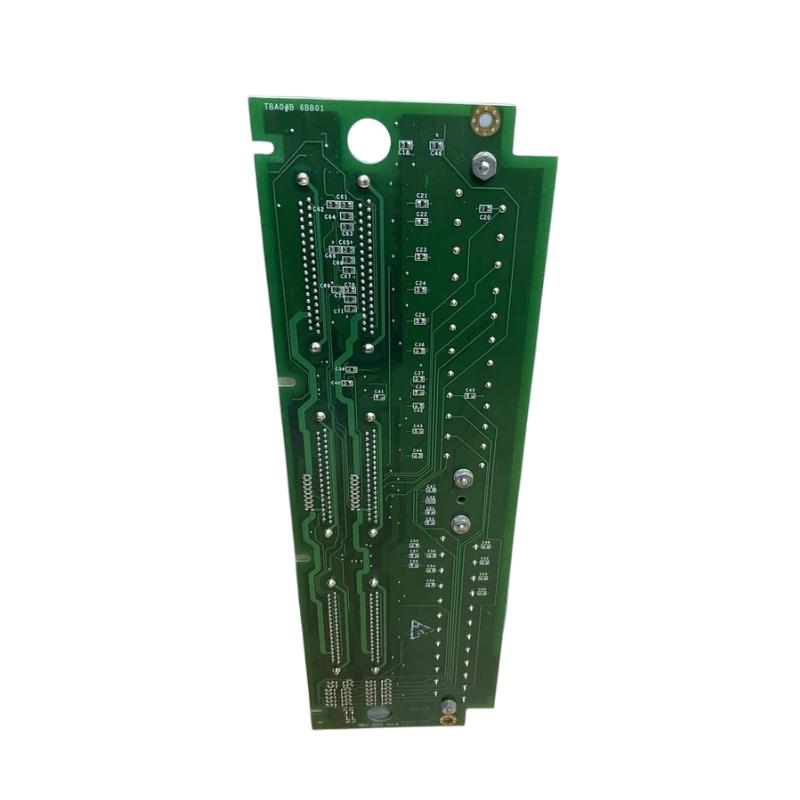

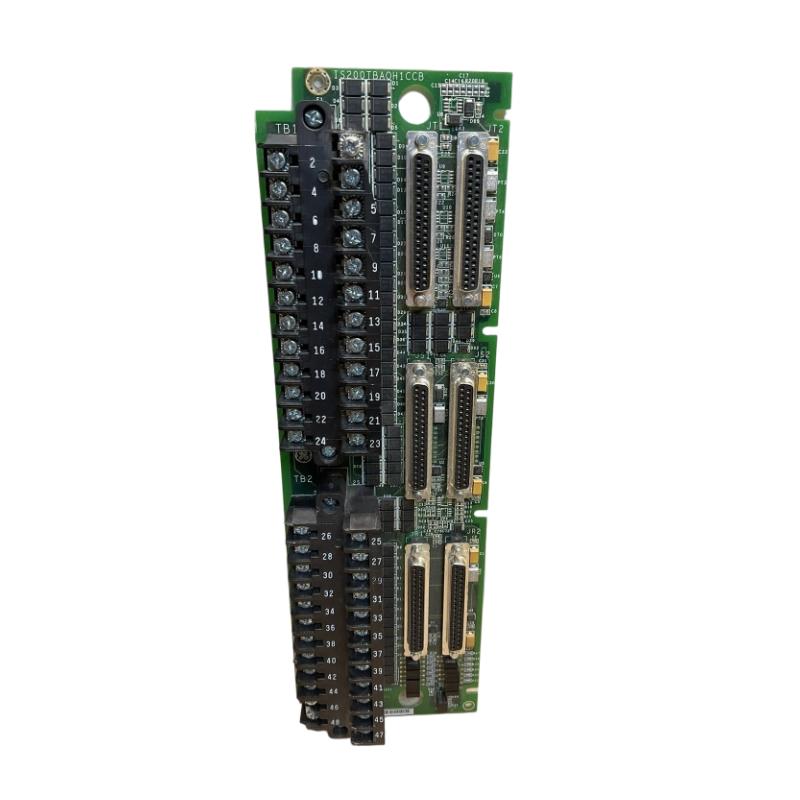

GE IS230TBAOH2C IS200TBAOH1CCB | PAOC Terminal Board 12-Month Warranty 30-Day Returns！

Brand：GE Fanuc PLC

Item No.：GE IS230TBAOH2C IS200TBAOH1CCB

Product origin：USA

Dimensions:200 × 130 × 40 mm

Weight:0.45 kg

Original source, data support testing content, and efficient after-sales processing

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The GE IS230TBAOH2C / IS200TBAOH1CCB is an analog output terminal board designed for the Mark VIe control system. It provides field wiring interfaces for proportional analog output channels, supporting precise current or voltage control for industrial actuators and instrumentation.

General Information

Part Number: IS230TBAOH2C / IS200TBAOH1CCB
Manufacturer: GE
Series: Mark VIe
Type: Analog Output Terminal Board (PAOC)
Mounting: Panel or enclosure installation using terminal screws
Technology: High-stability analog circuitry with isolation and filtering

Power Specifications

Supply Voltage: Powered through associated I/O pack
Power Consumption: Determined by the connected analog output pack
Input Source: Controller backplane or I/O module
Protection: Overcurrent protection and transient suppression
Indicators: Channel and status LEDs (model-dependent)

Communication & Interface

I/O Interface: Compatible with Mark VIe analog output packs (e.g., PAOC)
Output Type: Current or voltage analog signals
Diagnostics: Output verification, wiring supervision, channel health monitoring
Operator Interface: Terminal labeling and onboard status indicators
Reset Features: No reset function (passive terminal board)

I/O & Channels

Channel Count: Supports multiple analog output channels
Output Signal: 4–20 mA or 0–10 V (system configuration dependent)
External Load Support: Drives field devices through connected output packs

Environmental

Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation in industrial control panels

Dimensions & Weight

Dimensions (Approx.): 200 × 130 × 40 mm
Weight: ~ 0.45 kg

All items are factory-sealed and authentic, with fast quote access.

The product delivery cycle is faster than the regular cycle, and the unit price supports a moderate reduction based on the order volume.
