Honeywell 8C-PAZHA1 | Analog Output Module Hot Items Unbelievable Prices!

Brand：Honeywell DCS

Item No.：Honeywell 8C-PAZHA1

Product origin：USA

Dimensions:130 × 35 × 150 mm

Weight:0.25 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

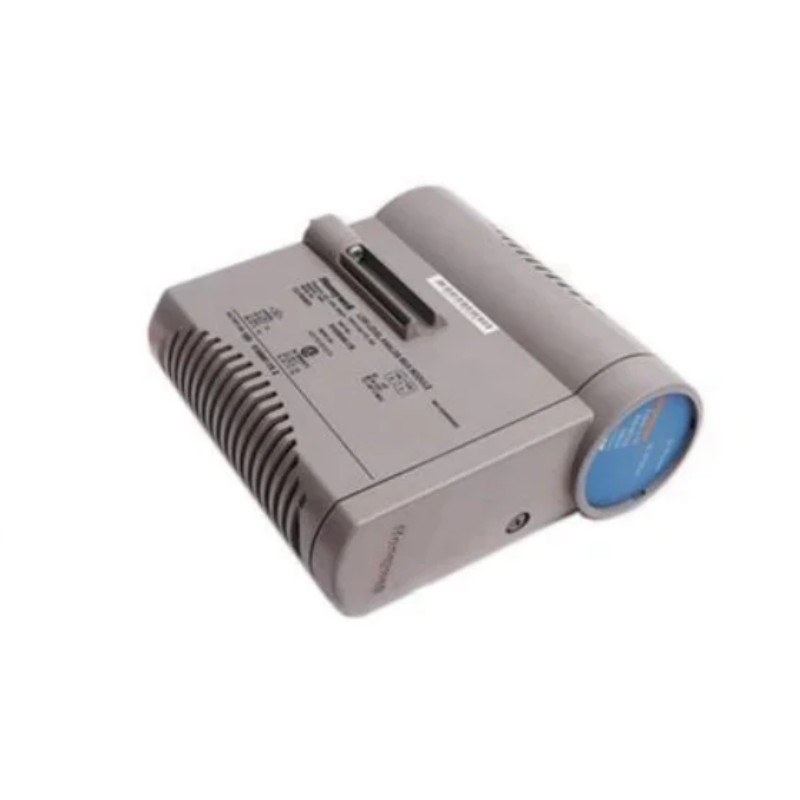

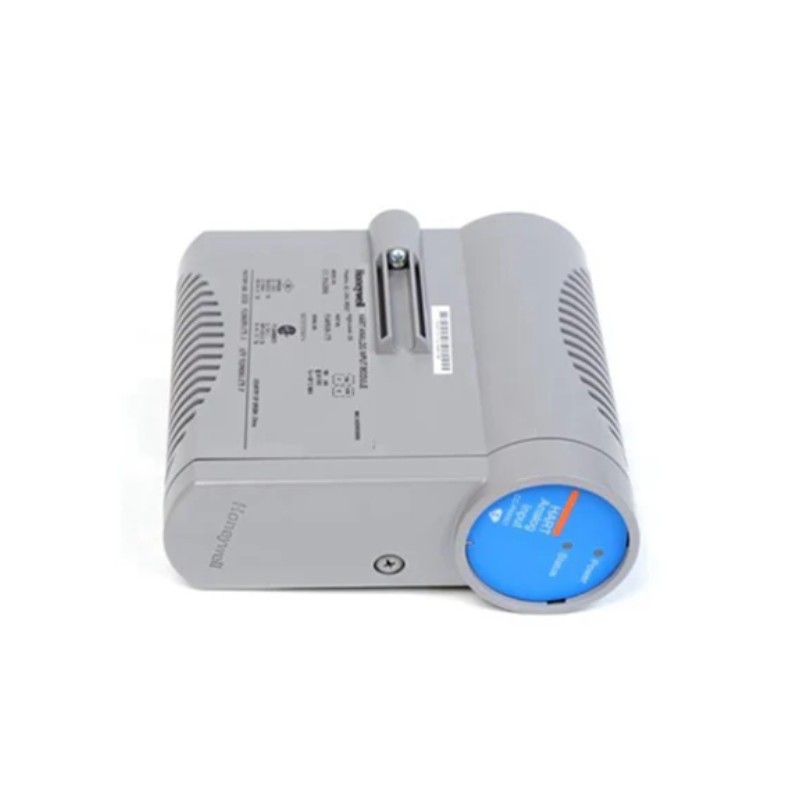

The Honeywell 8C-PAZHA1 is an analog output module used in Honeywell Experion Series 8 and C300 control systems. It provides precise and stable analog output signals for controlling field devices in industrial automation and process control applications.

General Information
Part Number: 8C-PAZHA1
Manufacturer: Honeywell
Series: Series 8 I/O
Type: Analog Output Module
Mounting: Installed on Series 8 IOTA/IOPM base
Function: Delivers analog signals to actuators and field instruments

Power Specifications
Supply Voltage: 24 V DC (backplane powered)
Power Consumption: ≤ 8 W
Input Source: From IOPM
Protection: Built-in over-voltage and short-circuit protection
Indicators: Status LEDs for power and output

Communication & Interface
System Interface: Communicates with C300 via IOPM
Signal Type: Analog output channels
Diagnostics: Module health monitoring, output status, fault reporting
Configuration: Configured via Experion engineering tools
Reset Features: Supports software reset

I/O & Channels
Channel Type: Analog output
Number of Channels: 8 or 16 channels (model dependent)
Output Range: 4–20 mA / 0–10 V selectable
Isolation: Channel-to-system isolation
External Load Support: Can drive standard field devices

Environmental
Operating Temperature: −20 to +70 °C
Humidity: 5–95% RH, non-condensing
Protection Rating: IP20 for industrial cabinet installation

Dimensions & Weight
Dimensions (L × W × H): 130 × 35 × 150 mm
Weight: ~ 0.25 kg

All products are new and original, with stock on hand and professional quote service.

The product is sourced from overseas, the logistics is efficient, and testing and price adjustment for large quantities are supported.
