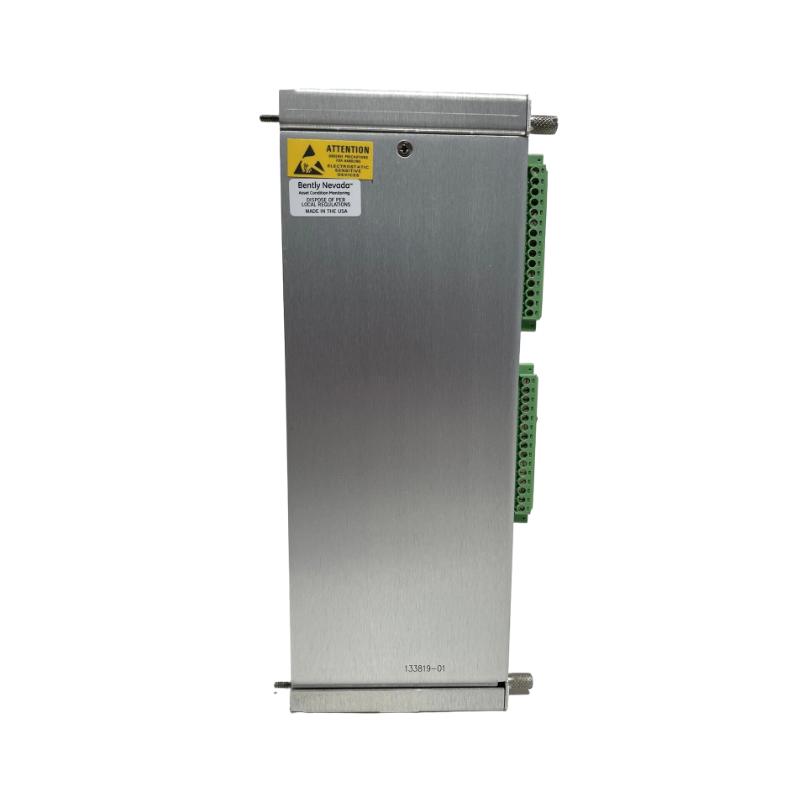

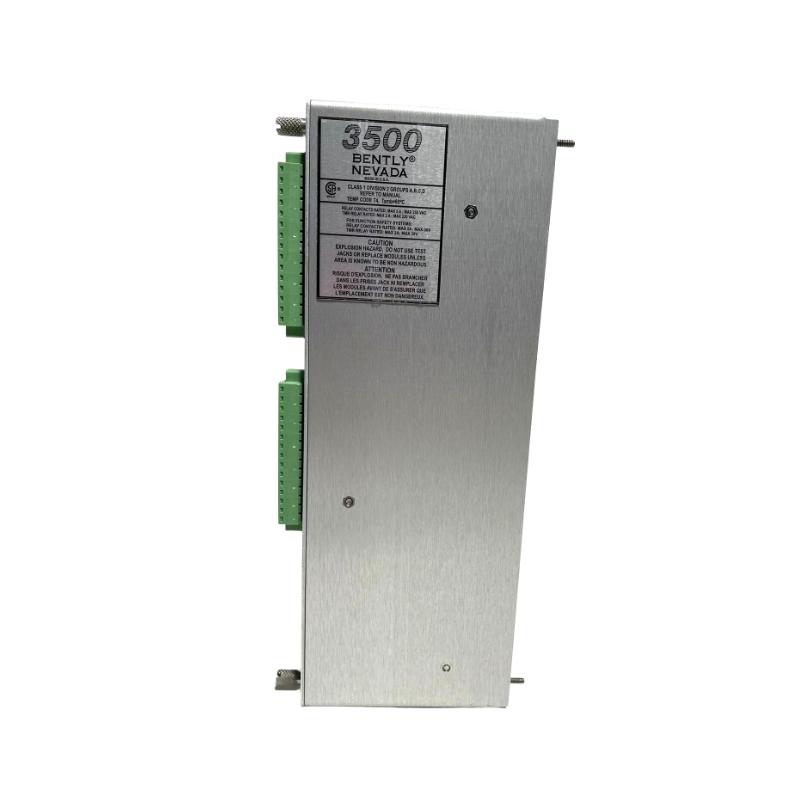

Bently Nevada 3500/60 163179-01 + 136711-01 | Overspeed Trip Module Recommended products Trusted supplier

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/60 163179-01+136711-01

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.91 kg

Formal sources, cooperative testing instructions, and continuous follow-up of after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview
The Bently Nevada 3500/60 (163179-01 + 136711-01) is an overspeed trip module used in the 3500 series machinery protection system. It monitors shaft speed signals and provides fast, reliable trip outputs to protect turbines and rotating machinery from overspeed conditions.

General Information
Part Number: 163179-01 + 136711-01

Manufacturer: Bently Nevada

Series: 3500

Type: Overspeed Trip Module

Mounting: Installed in 3500 series rack or chassis

Brand / Country of Origin: Bently Nevada / United States

Technology: High-speed signal processing for overspeed detection with relay output

Power Specifications
Supply Voltage: Powered via the 3500 system backplane

Power Consumption: Low, suitable for continuous operation

Input: Accepts tachometer or proximity probe signals

Protection: EMC-protected with industrial-grade reliability

Indicators: LED indicators for module status, trip activation, and diagnostics

Communication & Interface
Interface Type: Backplane connector for integration with the 3500 system

Module Role: Monitors rotational speed, triggers overspeed trips, and communicates status to system controller

Diagnostics: Monitors input signal integrity and relay output health

Operator Interface: LED indicators and integration with system HMI

Reset Features: Manual or system-controlled reset

Environmental
Operating Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for installation in industrial control cabinets

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: 0.91 kg

We provide brand-new, high-quality original parts, all in stock with immediate pricing.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
