Honeywell MC‑TDOY62 | Digital Output Field Rave reviews Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell MC-TDOY62

Product origin：USA

Dimensions:307 × 124 × 53 mm

Weight:2 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

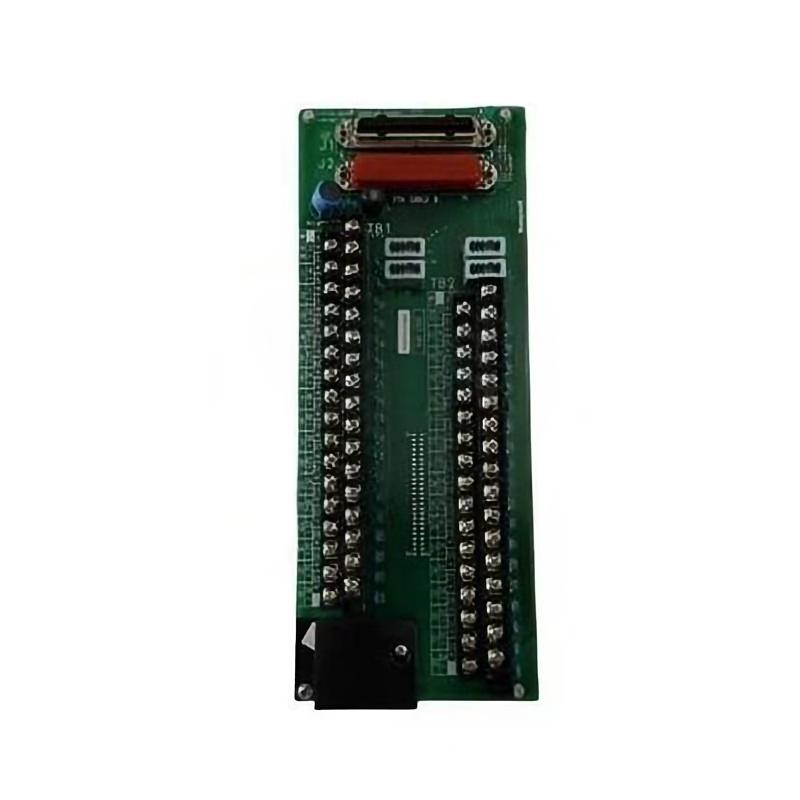

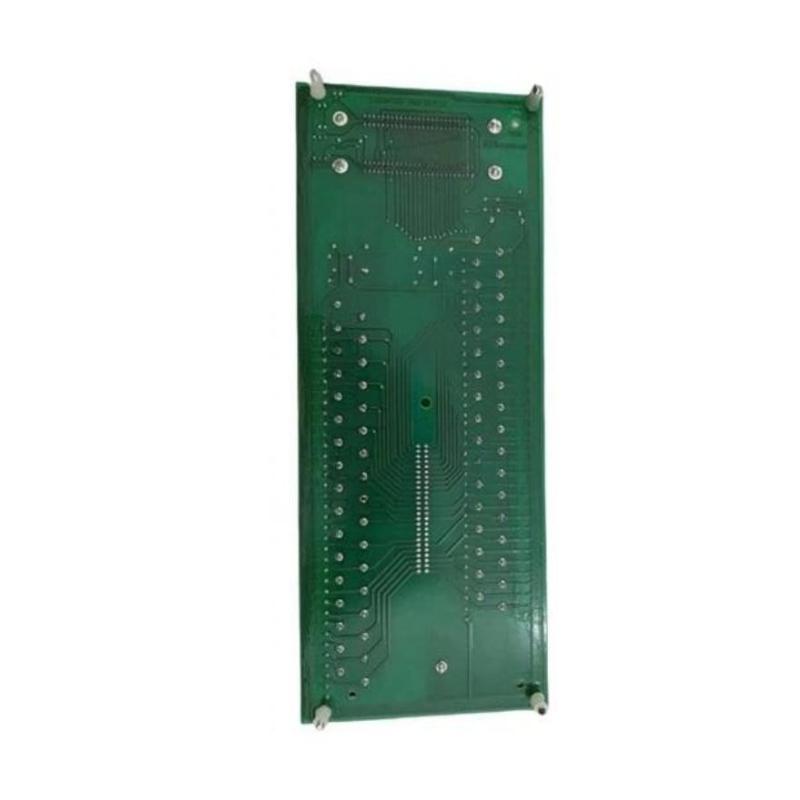

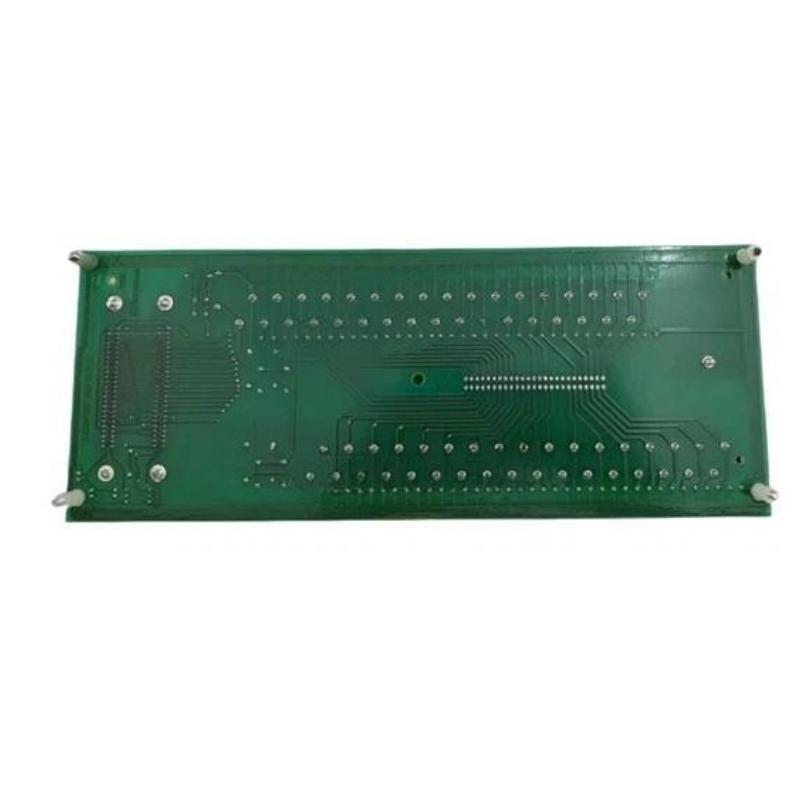

The Honeywell MC-TDOY62 is a 32-channel digital output Field Termination Assembly (FTA) designed for Honeywell DCS and control systems. It provides isolated digital outputs to field devices such as relays, solenoids, and indicators, and supports redundant configurations for high availability.

General Information

Part Number: 51204156-175
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: MC / MU I/O Series
Type: Digital Output FTA Module
Mounting: Rack or DIN-rail installation

Power Specifications

Supply Voltage: 24 V DC
Load Voltage Range: 15–30 V DC
Maximum Current per Channel: ~500 mA
Protection: Overcurrent and surge protection
Indicators: LED status indicators for output channels

Communication & Interface

Output Channels: 32 isolated digital outputs
Isolation: Channel-to-channel isolation approximately 500 Vrms; channel-to-ground isolation around 1,000 Vrms
Connection: Screw terminal interface for each output channel
Diagnostics: LED indicators for channel and module status
Reset Features: Supports software-controlled reset via system controller

Environmental

Operating Temperature: –40 °C to +70 °C
Humidity: 5% to 95% RH, non-condensing
Protection: Conformal coating for resistance to moisture, dust, and corrosion

Dimensions & Weight

Dimensions (L × W × H): 307 × 124 × 53 mm
Weight: ~2.0 kg
