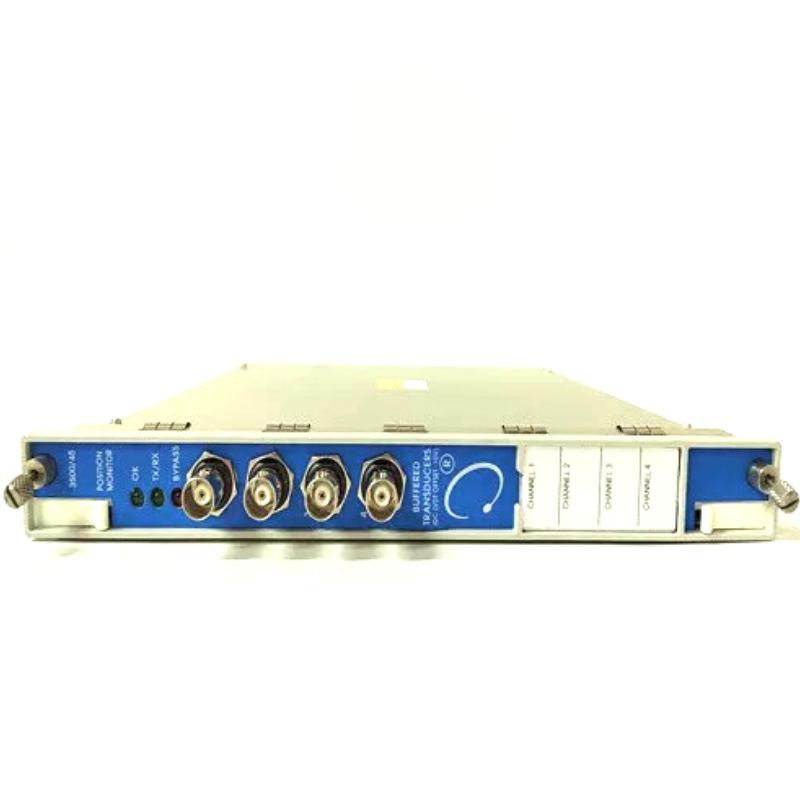

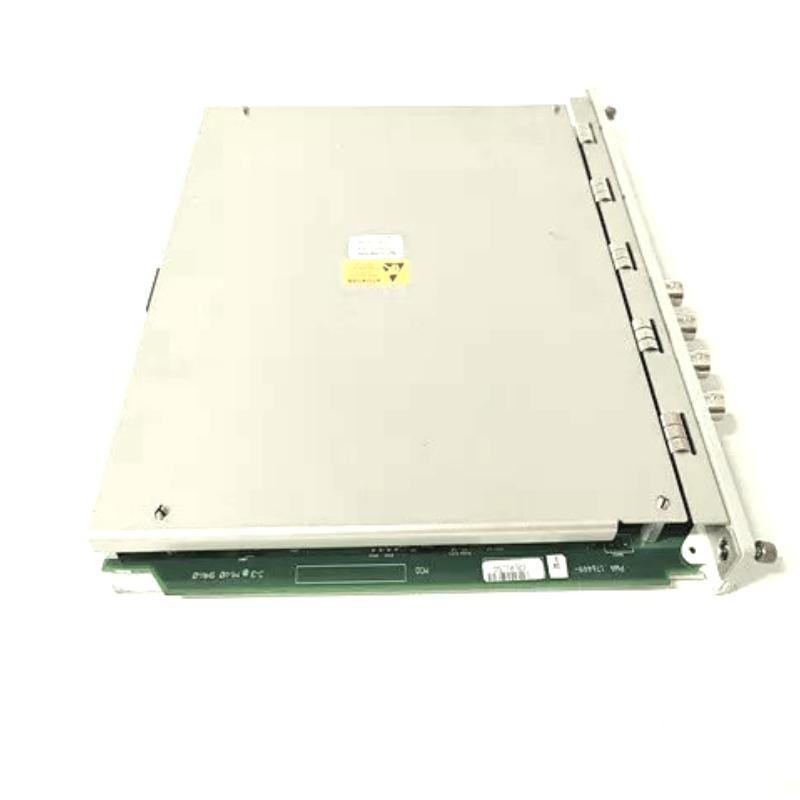

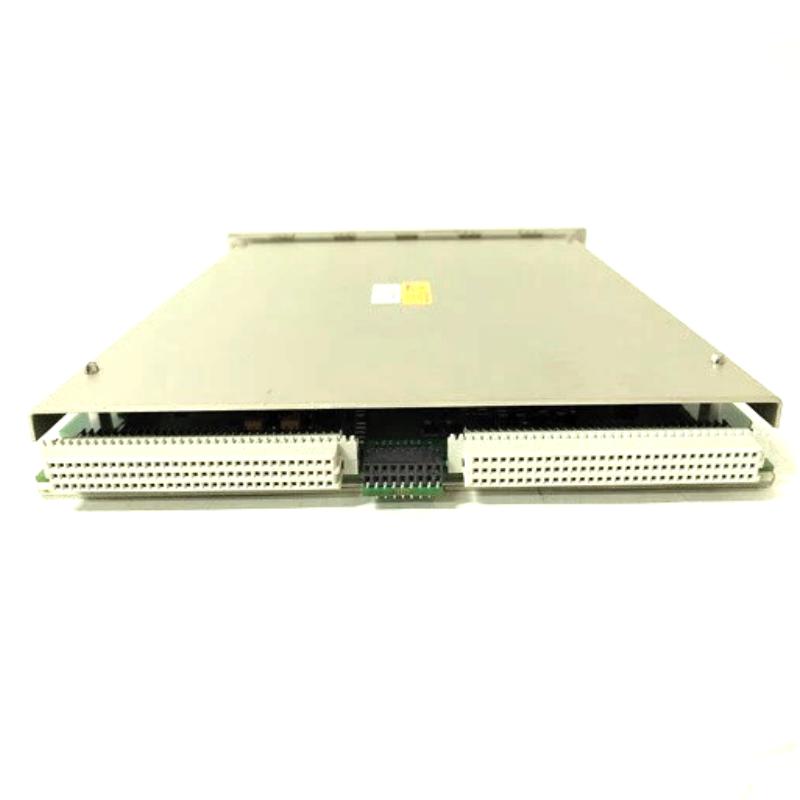

Bently Nevada 3500/45 176449-04 | Position Monitor Module Recommended products 12-Month Warranty

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/45 176449-04

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.91 kg

Original source, data supports testing content, efficient after-sales processing

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The Bently Nevada 3500/45 176449-04 is a Position Monitor Module used in the 3500 Machinery Protection System. It monitors the position of a machine shaft or rod using proximity probes, providing real-time data for machinery protection and diagnostics. Ideal for high-speed rotating equipment such as turbines, compressors, and generators.

General Information

Part Number: 176449-04

Brand / Country of Origin: Bently Nevada / USA

Series: 3500 Series

Type: Position Monitor Module

Mounting: Rack-mount within 3500 system

Technology: Proximity probe-based monitoring, signal conditioning, and diagnostics

Power Specifications

Supply Voltage: Powered from 3500 rack backplane

Power Consumption: Low, designed for continuous operation

Input: 4 measurement channels (proximity inputs)

Protection: Built-in fault detection and monitoring

Indicators: Front-panel LEDs for OK, ALERT, and DANGER status

Communication & Interface

Inputs: Accepts signals from compatible proximity probes

Outputs: Buffered transducer signals available for external analysis

Monitoring Role: Measures shaft axial position, rod position, and differential expansion

Configuration: Software-configured via 3500 rack system

Diagnostics: Continuous self-diagnostics and status reporting

Environmental

Operating Temperature: −30 to +65 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: ~ 0.91 kg
