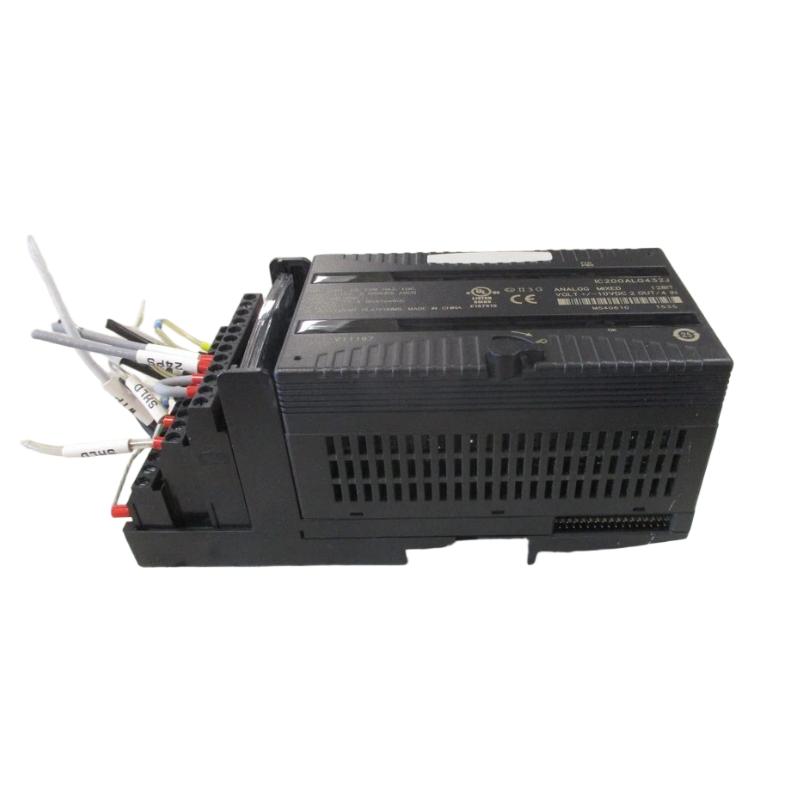

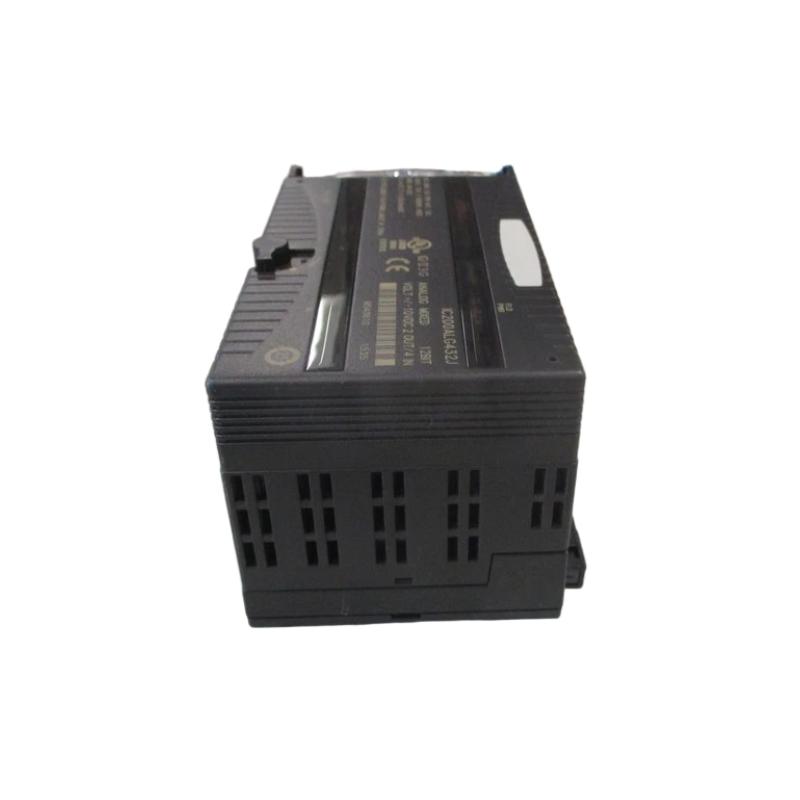

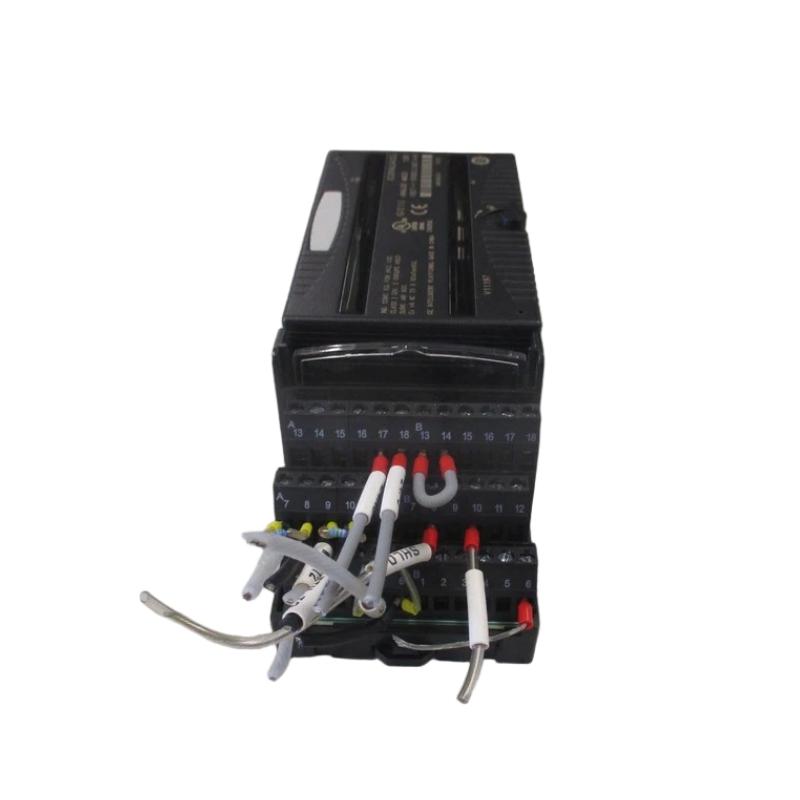

GE IC200ALG432 | Analog Mixed Module Rave reviews 12-Month Warranty

Brand：GE Fanuc PLC

Item No.：GE IC200ALG432

Product origin：USA

Dimensions:49 x 133.4 x 39 mm

Weight:0.109 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The GE IC200ALG432 is a mixed analog I/O module from the VersaMax series. It provides four analog input channels and two analog output channels, all with 12-bit resolution. This module is suitable for applications that require both voltage inputs and voltage outputs within a single module.

General Information

Part Number: IC200ALG432
Brand: GE (General Electric)
Country of Origin: USA
Series: VersaMax
Type: Analog Mixed I/O Module

Input / Output Specifications

The input range is –10 V to +10 V DC, and the output range is also –10 V to +10 V DC. The module supports four single-ended input channels and two single-ended output channels. External 18–30 V DC power is required to drive the outputs, while the inputs are powered from the backplane. The module has 12-bit resolution, with input steps of about 2.5 mV and output steps of about 5 mV. The analog update rate is up to 0.3 ms. Typical accuracy at 25 °C is ±0.3% of full scale, maximum ±0.5%. Input impedance is up to 200 Ω.

Power & Performance

The module draws up to 125 mA from the external 18–30 V DC analog power supply. It supports fault detection for loss of field power. LED indicators show the presence of field power and backplane power.

Environmental

Operating Temperature: 0 to +60 °C
Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 49 x 133.4 x 39 mm
Weight: ~ 0.109 kg

Brand-new original products available in stock, with professional customer support ready to provide quotes instantly.

The product inventory cycle is short, the delivery response is fast, the price coordination is high, and batch cooperation has advantages.
