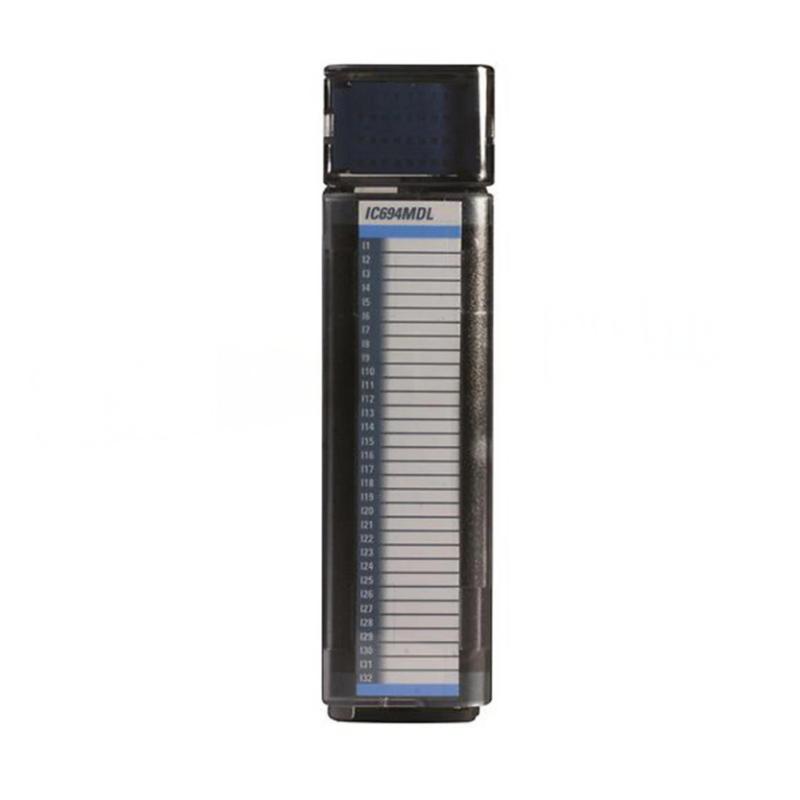

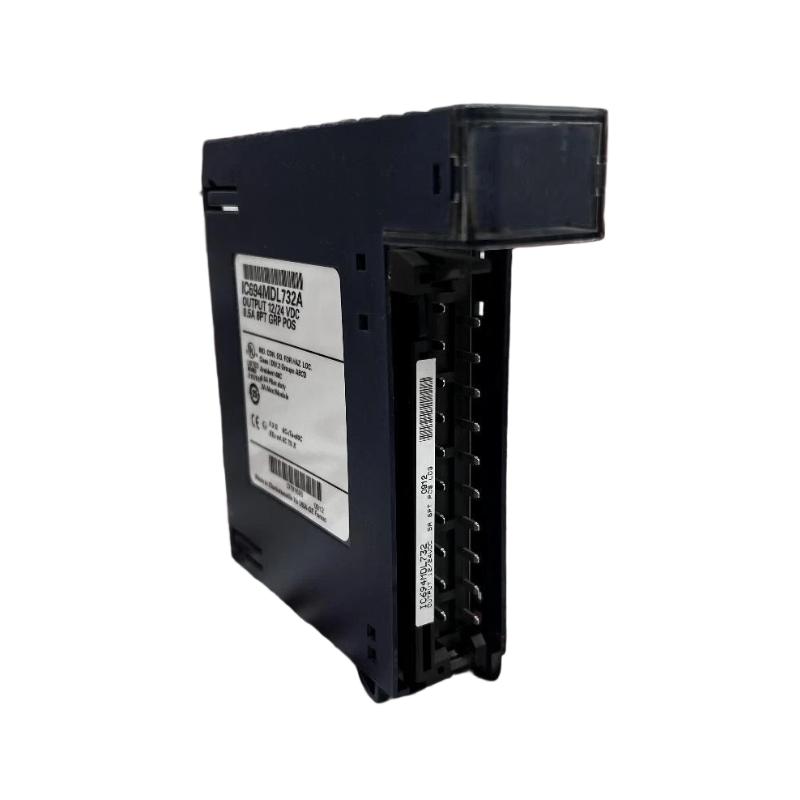

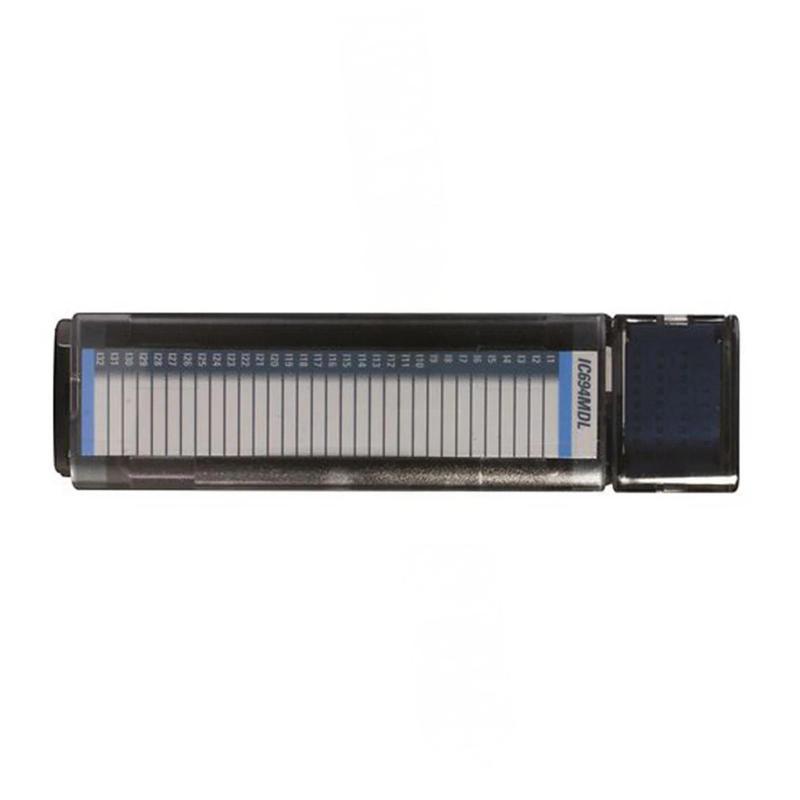

GE IC694MDL732 | RX3i Output Module Rave reviews 12-Month Warranty

Brand：GE Fanuc PLC

Item No.：GE IC694MDL732

Product origin：USA

Dimensions:140 × 34 × 145 mm

Weight:1.36 kg

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The GE IC694MDL732RX3i is an 8-point DC voltage output module in the PACSystems RX3i series. It provides reliable control of lamps, relays, actuators, and other DC loads using positive logic output. The module is designed for high-speed industrial automation applications requiring precise and stable output.

General Information

Part Number: IC694MDL732RX3i
Brand / Country of Origin: GE / USA
Series: PACSystems RX3i
Type: Discrete DC Voltage Output Module
Mounting: I/O rack or backplane installation

Power Specifications

Nominal Output Voltage: 12–24 V DC
Maximum Current per Channel: 0.5 A
Maximum Common Terminal Current: 2 A
Short Inrush Current: Up to 4.78 A for 10 ms
Backplane Current Draw: ~50 mA at 5 V

Communication & Interface

The module interfaces directly with the RX3i backplane for data and power. Optical isolation separates the field devices from the backplane logic. Each channel has a dedicated LED indicator to show ON/OFF status. The module supports hot insertion and removal while maintaining system integrity.

Environmental

Operating Temperature: 0 to +60 °C
Humidity: 5–95% RH, non-condensing
Isolation: Optical separation between field and backplane; 250 VAC continuous, 1500 VAC 1-minute withstand

Dimensions & Weight

Dimensions (L × W × H): 140 × 34 × 145 mm
Weight: ~1.36 kg
