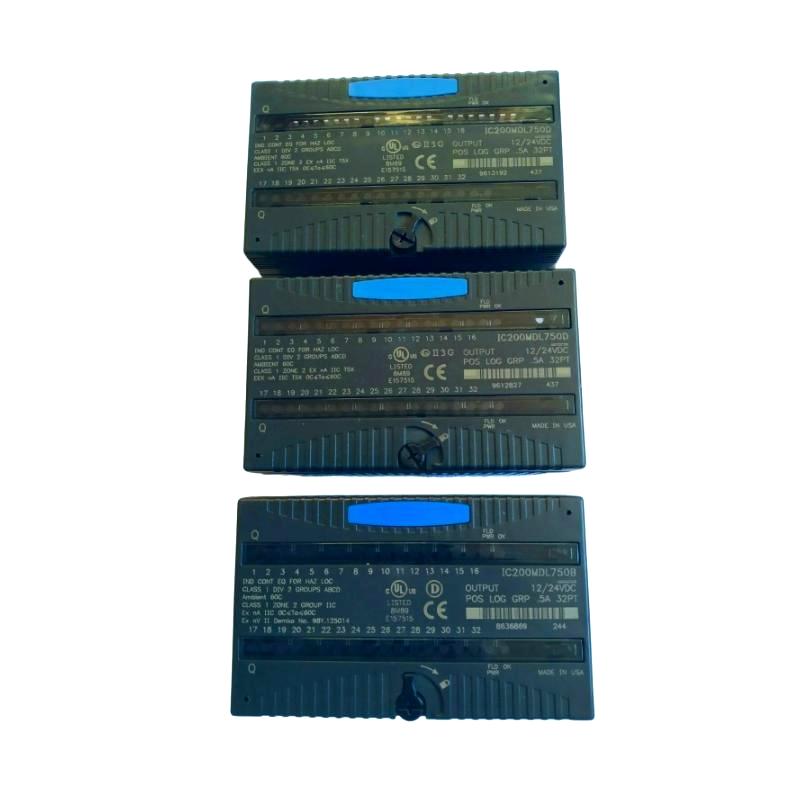

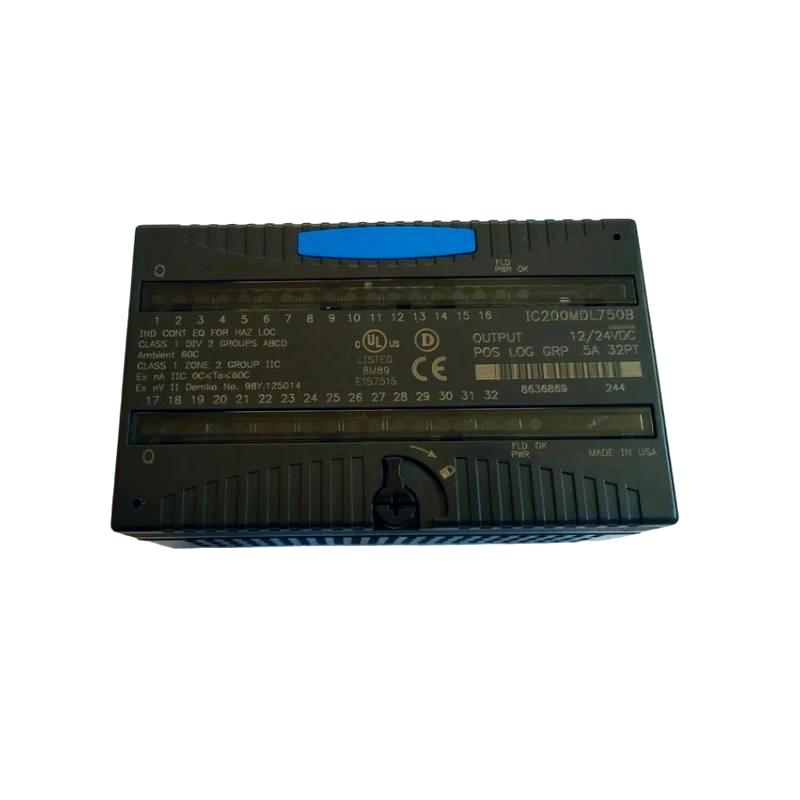

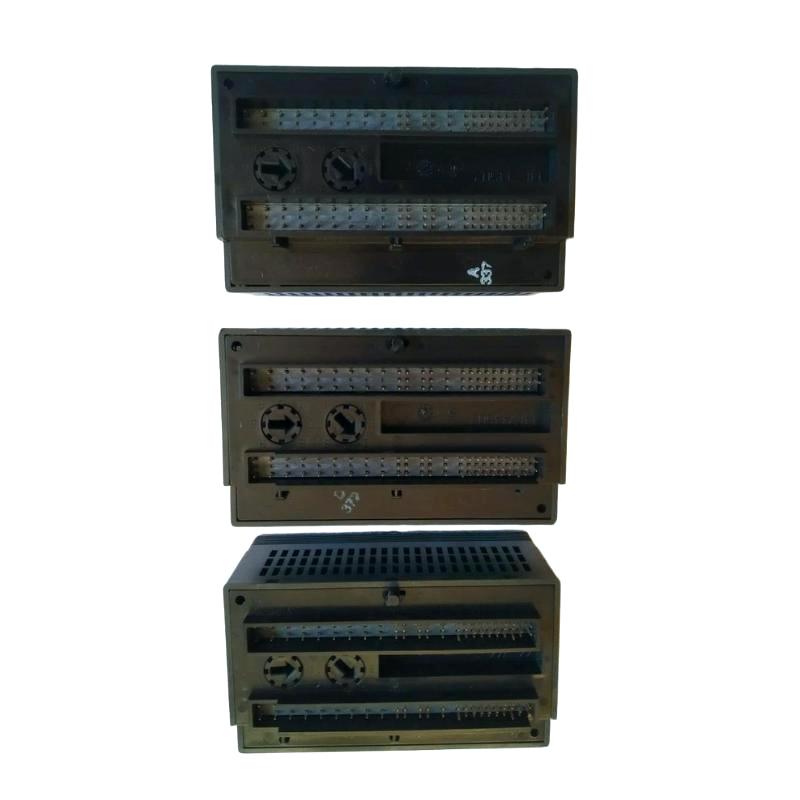

GE IC200MDL750 | 32-Point Discrete Output Module New In Stock Original

Brand：GE Fanuc PLC

Item No.：GE IC200MDL750

Product origin：USA

Dimensions:110 × 66.8 × 50 mm

Weight:0.132 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

A wide range of models in stock, supports quick docking of procurement needs, welcome to inquire for details!

Product Introduction：

Overview

The GE IC200MDL750 is a 32-point discrete output module from the VersaMax I/O family. It provides positive logic DC outputs suitable for controlling solenoids, relays, pilot lamps, and other DC loads in industrial automation systems.

General Information

Part Number: IC200MDL750
Brand: GE (General Electric)
Country of Origin: USA
Series: VersaMax
Type: Discrete Output Module

Power & Output Specifications

The module includes 32 output channels, arranged in two groups of 16. Each output can drive up to 0.5 A. The nominal output voltage is 12–24 VDC, with a supported range of 10.2–30 VDC. Backplane current draw is up to 90 mA.

Performance

Turn-on response time is approximately 0.2 ms, and turn-off time is about 1.0 ms. The module can handle inrush current pulses up to 2.0 A for short durations (100 ms).

Isolation & Protection

Outputs are optically isolated from the logic/backplane. Continuous isolation is rated at 250 VAC, with 1500 VAC for a one-minute test. There are no internal fuses, but the module provides short-circuit and overload protection for safe operation.

Indicators

Each output has an individual LED to indicate ON/OFF status. The module also includes a “FLD PWR” LED for field power and an “OK” LED to indicate backplane power presence.

Environmental

Operating Temperature: 0 to +60 °C
Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 110 × 66.8 × 50 mm
Weight: ~ 0.132 kg
