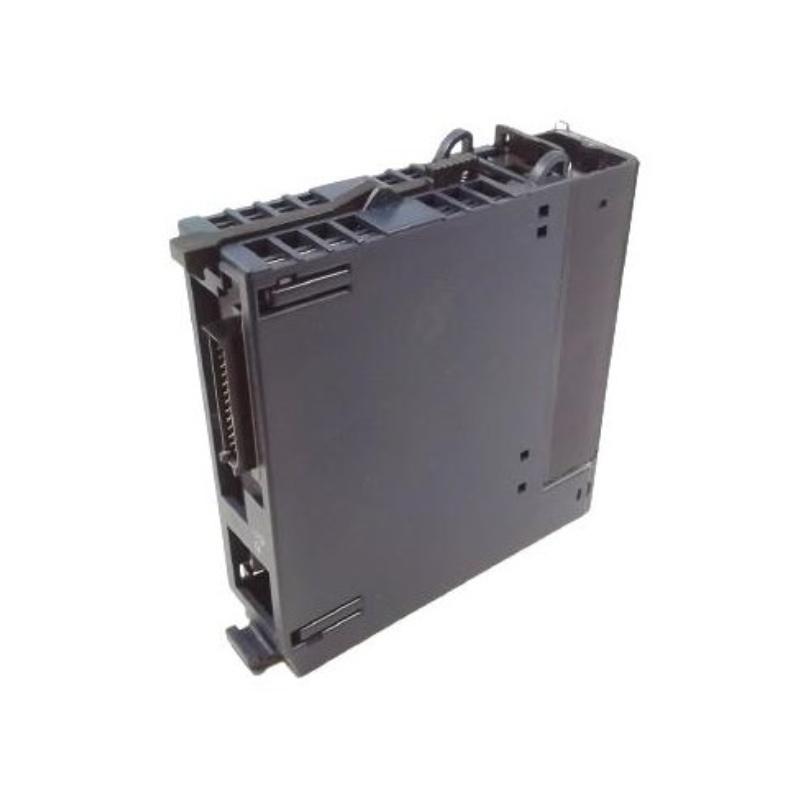

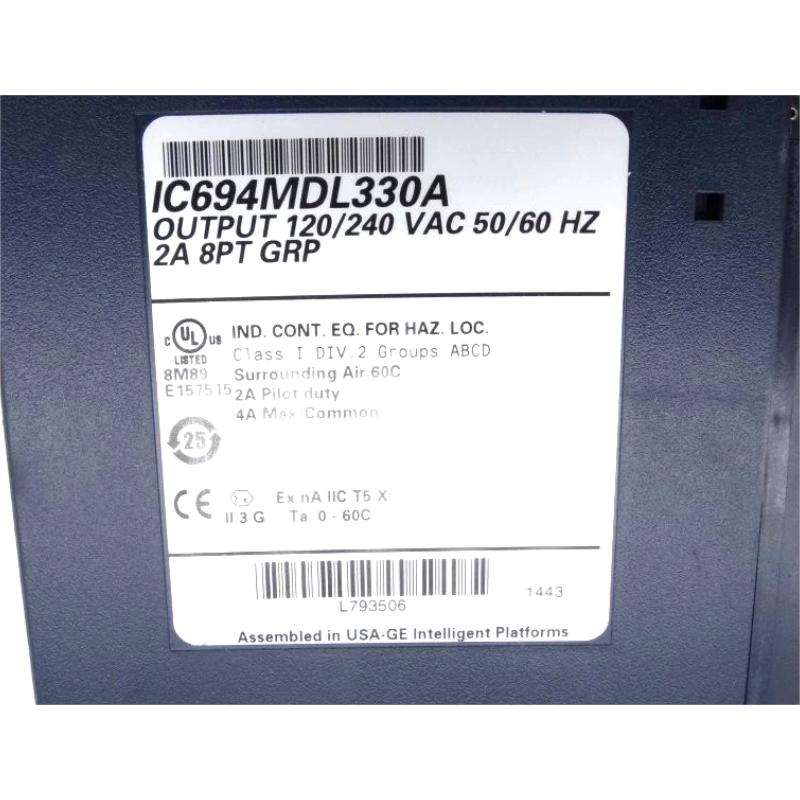

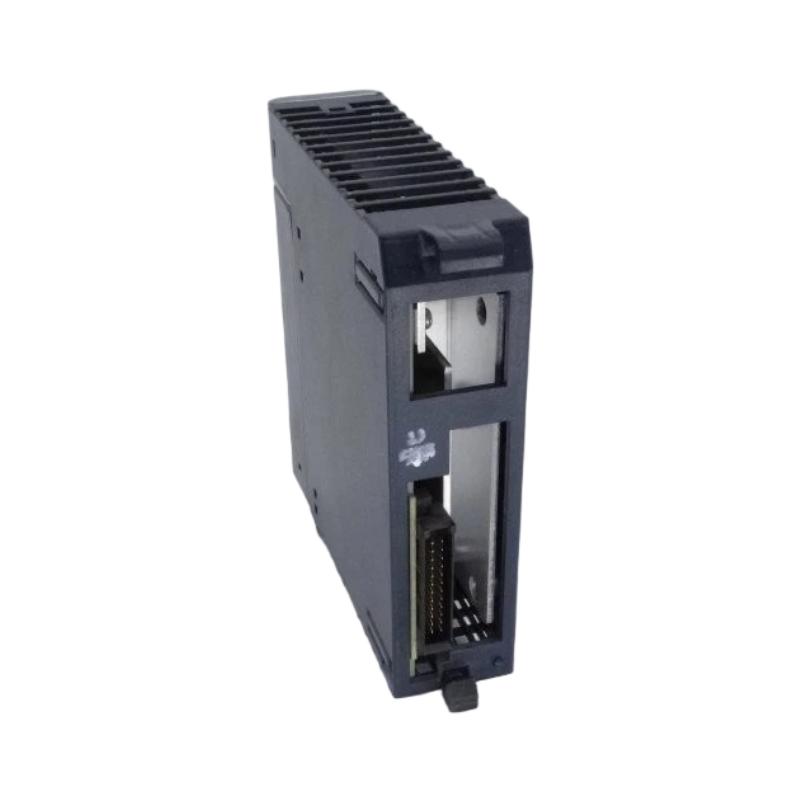

GE IC694MDL330 | Discrete Output Module Original Trusted supplier

Brand：GE Fanuc PLC

Item No.：GE IC694MDL330

Product origin：USA

Dimensions:101.6 × 127 × 50.8 mm

Weight:0.358 kg

This product is imported from overseas, supports test report assistance, and has smooth after-sales connection

Large stock, diverse series, suitable for different working conditions, welcome to consult!

Product Introduction：

Overview

The GE IC694MDL330 is a 12-point 24 VDC positive logic output module used with the GE PACSystems RX3i. It is suitable for controlling relays, solenoids, lamps, and other DC loads, and features built-in protection and status indicators for reliable operation.

General Information

Part Number: IC694MDL330

Manufacturer: GE (General Electric)

Series: PACSystems RX3i

Type: Discrete Output Module

Mounting: RX3i rack backplane

Power Specifications

Field Voltage: 18–30 VDC (nominal 24 VDC)

Output Current: 0.5 A per point, 6 A maximum per module

Isolation: 1000 V backplane-to-field

Indicators: LED status for each output

Protection: Electronic short-circuit and overload protection

Outputs & Channels

Total Outputs: 12

Output Type: Sourcing (positive logic)

Load Compatibility: Ideal for resistive and inductive loads

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Dimensions: 101.6 × 127 × 50.8 mm

Weight: Approx. 0.358 kg
