GE DS200TBQAG1ABB | Thermocouple Termination Board (Mark V) 100% New Fast Shipping!

Brand：GE Fanuc PLC

Item No.：GE DS200TBQAG1ABB

Product origin：USA

Dimensions:200 × 120 × 50 mm

Weight:0.34 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

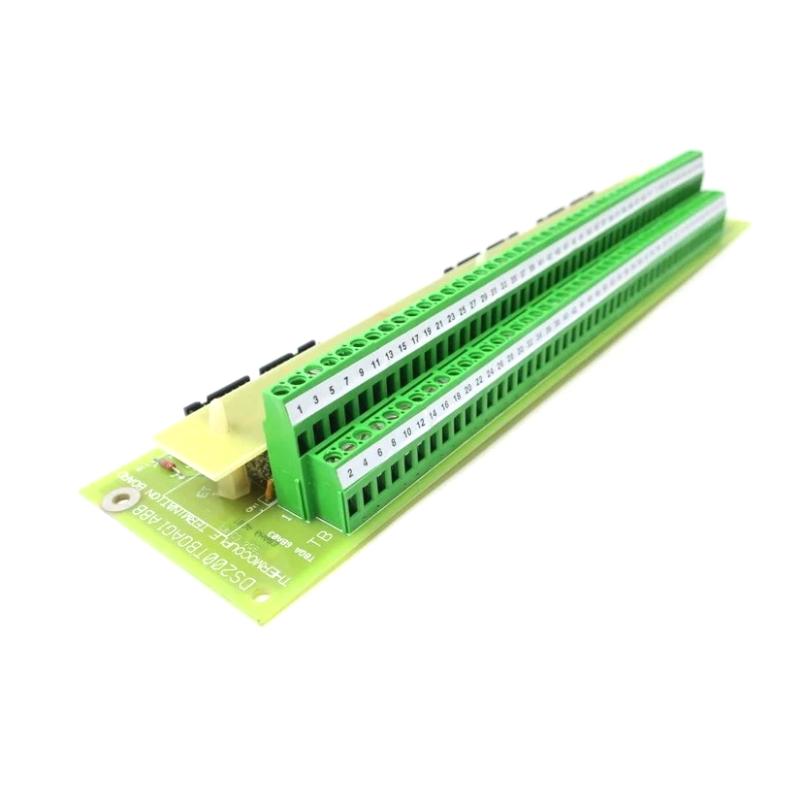

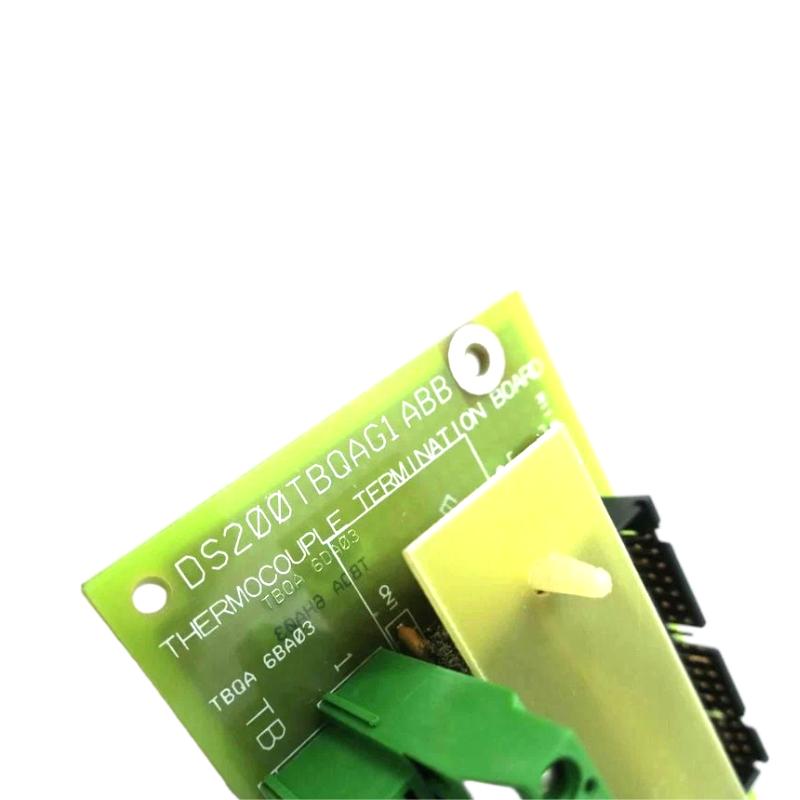

The GE DS200TBQAG1ABB is a thermocouple termination board used in GE Mark V / DS200 turbine control systems. It consolidates wiring from multiple thermocouples, providing a structured interface between field temperature sensors and the control modules.

General Information

Part Number: DS200TBQAG1ABB

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Thermocouple Termination Board

Revision: ABB

Mounting: Panel-mounted inside the control cabinet

Technology: Passive PCB with terminal blocks for thermocouple inputs

Power Specifications

Supply Voltage: Not required (passive board)

Power Consumption: None

Input: Thermocouple signal wiring from field sensors

Protection: Supports stable signal routing and suppresses potential transients

Indicators: None

Communication & Interface

Terminal Blocks: Two 90-pin terminal blocks (TB1, TB2) supporting up to 180 thermocouple signal lines

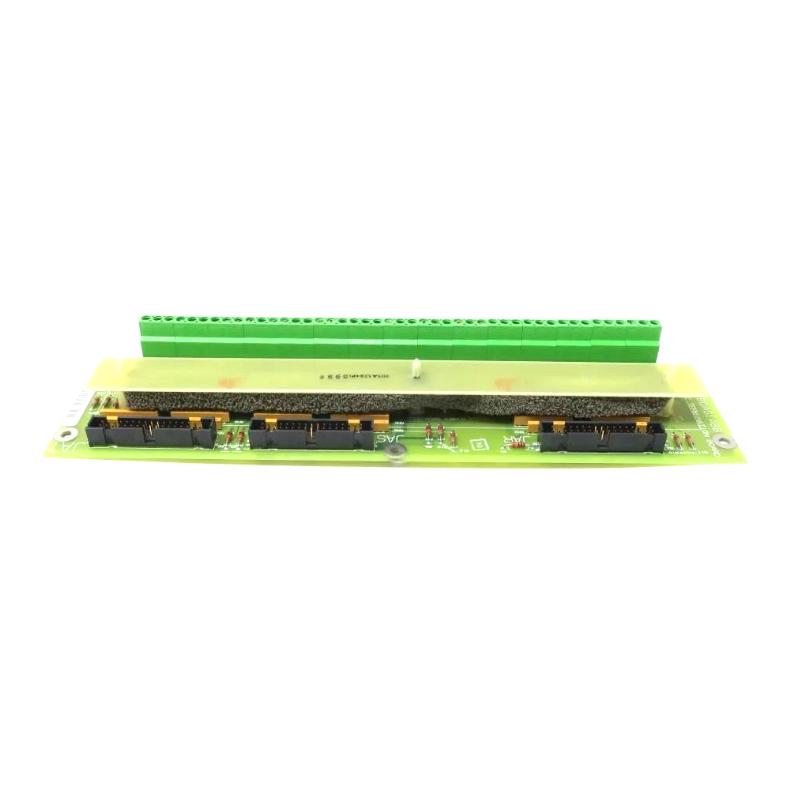

Connectors: Three 20-pin connectors for interfacing with cold-junction compensation and thermocouple processing circuits

Signal Support: Thermocouple inputs and cold-junction compensation signals

Operator Interface: Terminal blocks only

Reset Features: Not applicable

I/O & Channels

Thermocouple Channels: Supports high-density thermocouple inputs

Digital / Relay Channels: None

External Load Support: None

Environmental

Operating Temperature: Suitable for industrial control cabinet environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial PCB

Dimensions & Weight

Dimensions (L × W × H): 200 × 120 × 50 mm

Weight: ~0.34 kg

Brand-new originals supplied directly, stable stock, customer service online 24/7, quotes rapid.

The product price is transparent, delivery is fast, and project procurement supports a tiered pricing plan.
