Brand：GE Fanuc PLC

Item No.：GE DS200TBCAG1AAB

Product origin：USA

Dimensions:210 × 70 × 35 mm

Weight:0.295 kg

Supply through formal channels, complete and available information, supporting service guarantee

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product Introduction：

Overview

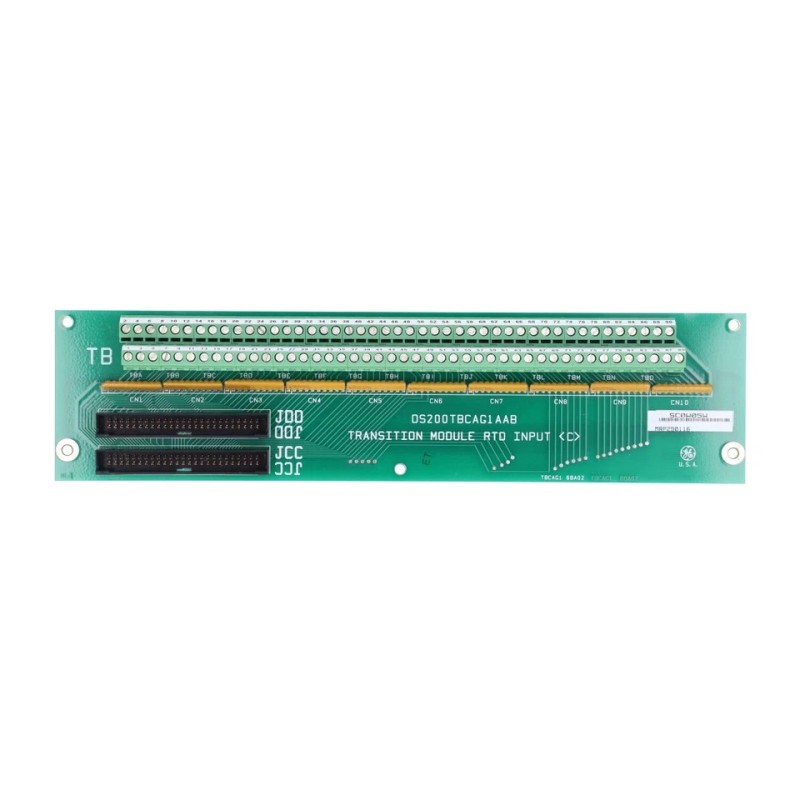

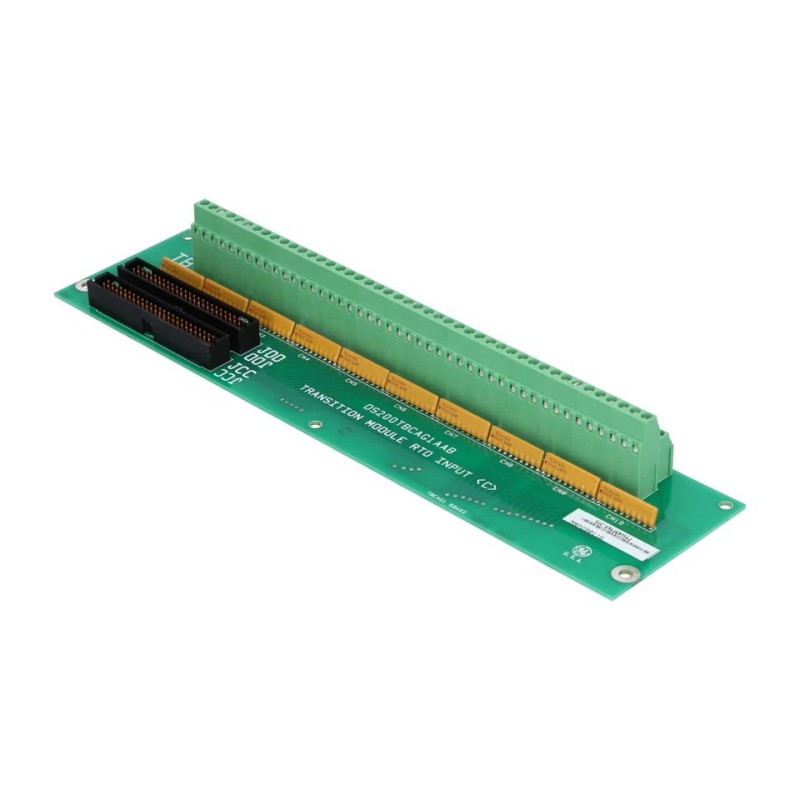

The DS200TBCAG1AAB is an analog I/O terminal board used in GE Mark V (DS200) turbine control systems. It provides dense field wiring termination for analog inputs and outputs, serving as a bridge between field devices and the controller.

General Information

Part Number: DS200TBCAG1AAB
Manufacturer: GE (General Electric)
Series: Mark V / DS200
Type: Analog I/O Terminal / Transition Board
Revision: AAB

Power Specifications

Supply Voltage: Not required (passive board)
Power Consumption: None
Input: Receives analog I/O wiring from field devices
Protection: Contains components to suppress signal noise and limit transient voltages

Communication & Interface

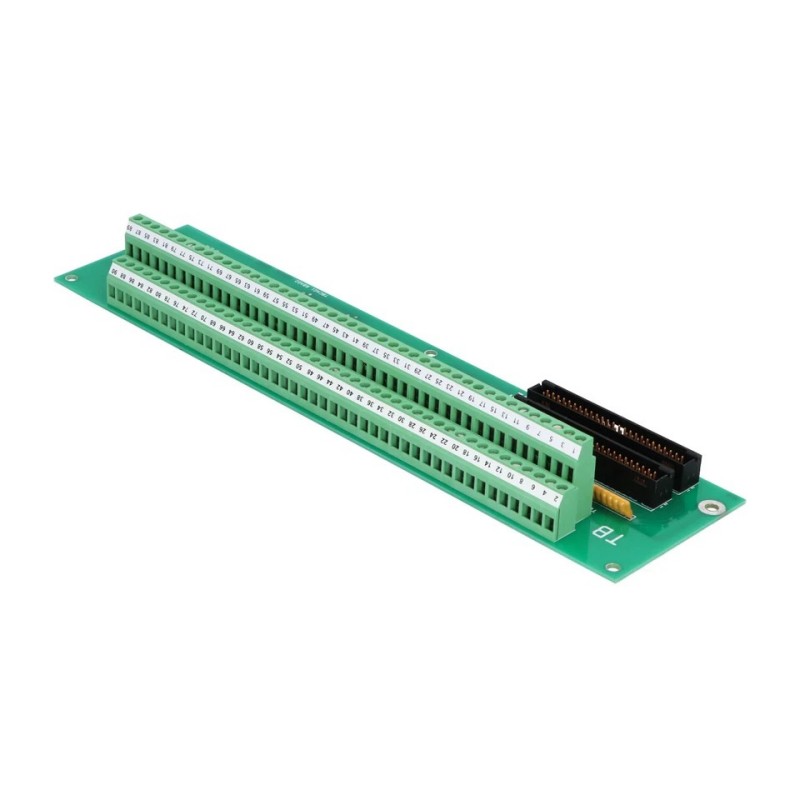

Terminal Blocks: Two screw-type terminal strips for field connection
Connectors: Two board-to-board connectors for I/O module communication
Signal Types: Supports analog inputs and analog outputs
Diagnostics: No active diagnostics on board
Operator Interface: Terminal strips and board connectors

I/O & Channels

Analog Channels: Accommodates a large number of analog I/O lines
Relay / Digital Channels: None

Environmental

Operating Temperature: Suitable for turbine control cabinet environment
Humidity: Up to 95% RH, non-condensing
Protection Rating: Industrial-grade PCB

Dimensions & Weight

Dimensions (L × W × H): 210 × 70 × 35 mm
Weight: 0.295 kg
