Product Introduction：

Overview

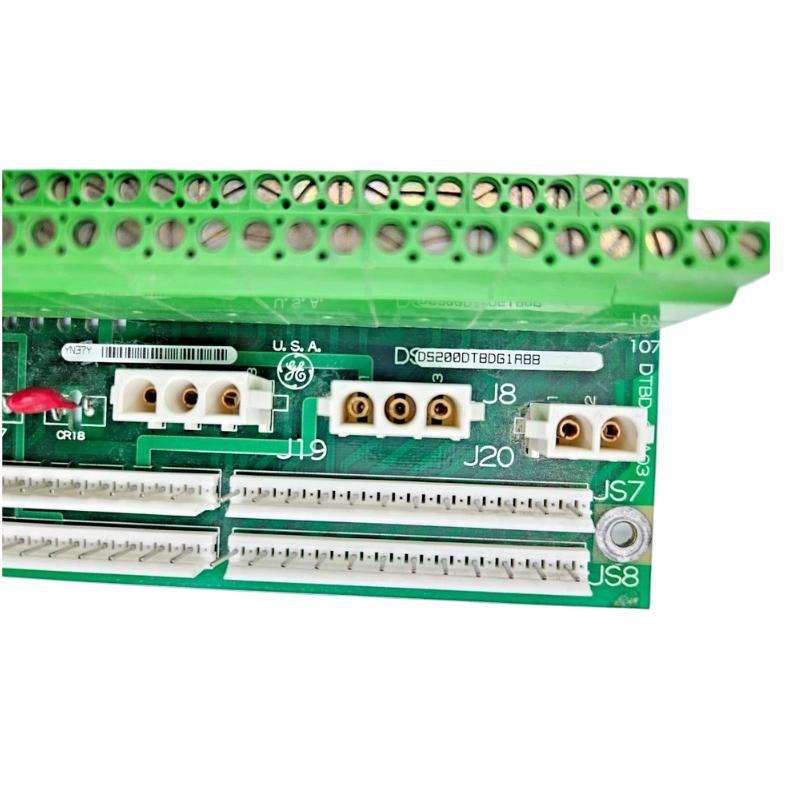

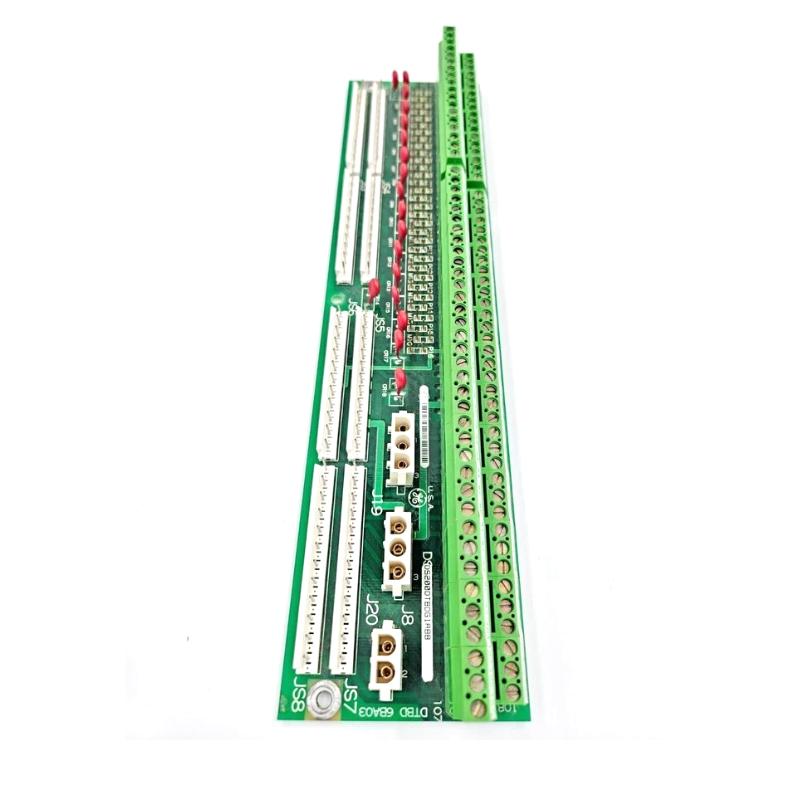

The GE DS200DTBDG1ABB is a termination and expansion board used in the GE Mark V control system. It provides structured wiring for large quantities of relay and contact output signals, acting as an interface between the controller and field devices such as solenoids, relays, and auxiliary actuators.

General Information

Part Number: DS200DTBDG1ABB

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Output Termination / Expansion Terminal Board

Mounting: Control cabinet panel mounting

Technology: Passive PCB with terminal blocks, jumpers, and standard Mark V components

Power Specifications

Supply Voltage: Not required (passive board)

Power Consumption: None

Input: Accepts output signals coming from Mark V control modules

Protection: Includes voltage-limiting components for circuit protection

Indicators: None

Communication & Interface

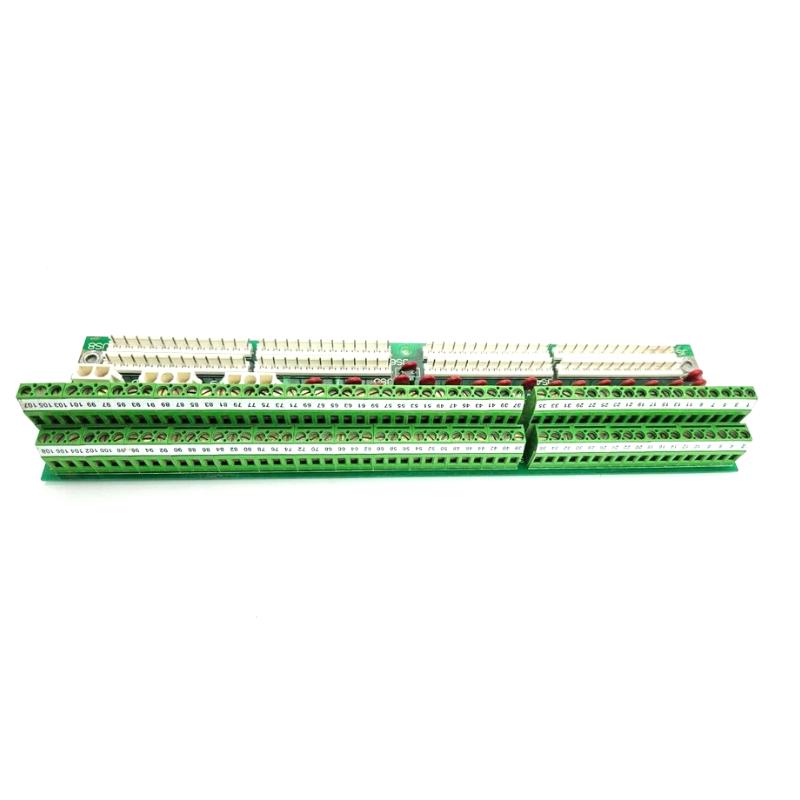

Terminal Blocks: Two high-capacity terminal blocks, each supporting 107 terminals

Connectors: Multiple board-to-board connectors including 34-pin and 40-pin types

Jumpers: Two jumpers for configuration of specific output paths

Diagnostics: Test points available for signal verification

Operator Interface: Direct screw-type terminal access

Reset Features: Not applicable

I/O & Channels

Relay Channels: Supports numerous contact and relay output lines

External Load Support: Provides wiring interface only; does not supply power to loads

Output Types: Solenoid outputs, relay coil outputs, and general on/off field outputs

Environmental

Operating Temperature: Suitable for cabinet-mounted industrial environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial PCB protection

Dimensions & Weight

Dimensions (L × W): 287 × 76 mm

Weight: 0.907 kg
