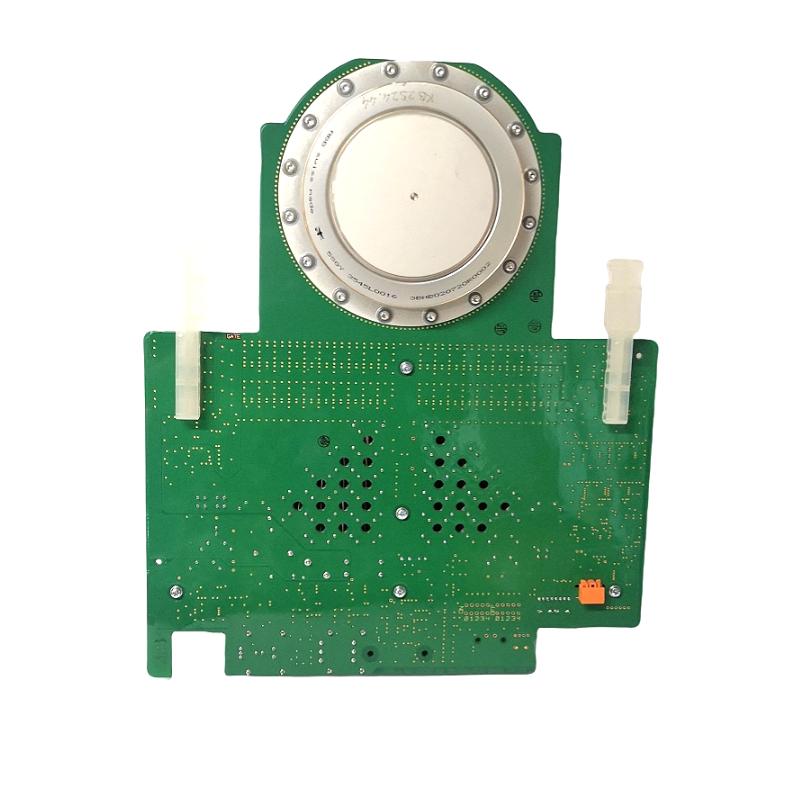

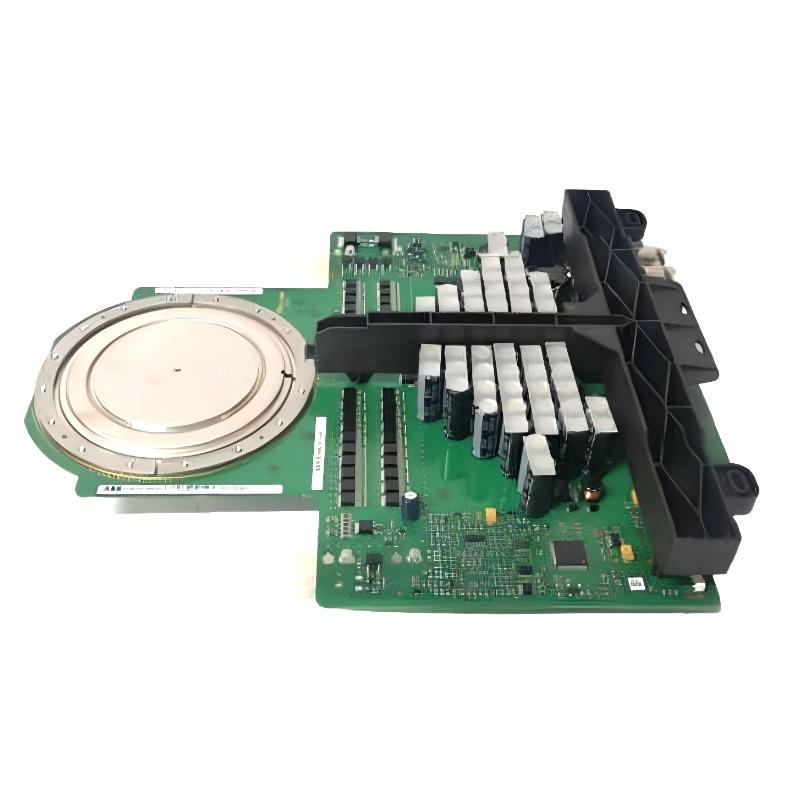

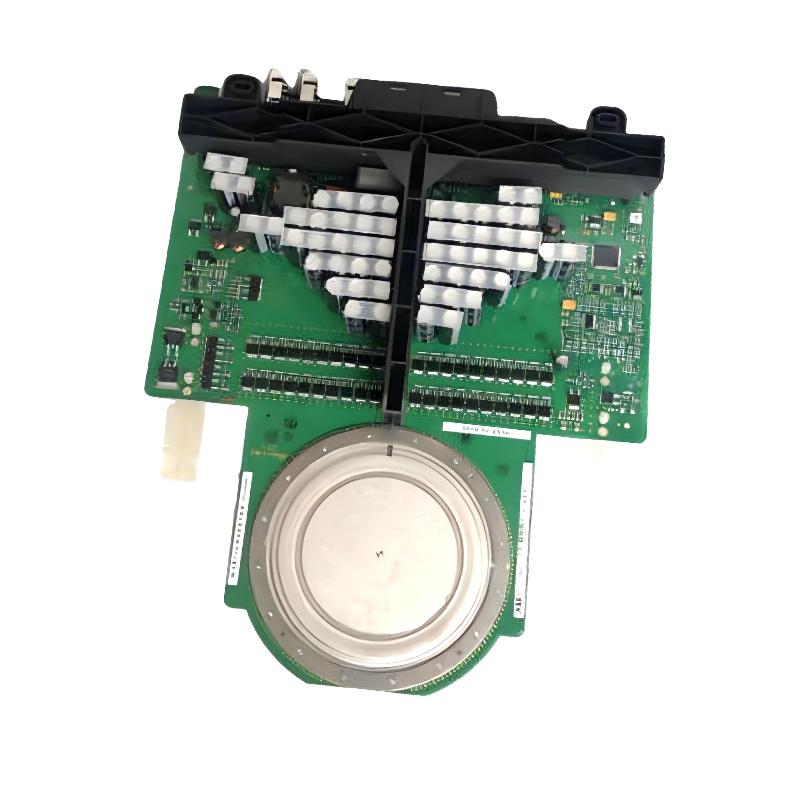

ABB 5SHY3545L0016 3BHB020720R0002 | IGCT Module Quality Selection 12-Month Warranty

Brand：ABB PLC

Item No.：ABB 5SHY3545L0016 3BHB020720R0002

Product origin：Sweden

Dimensions:150 × 100 × 40 mm

Weight:1.5 kg

Compliant imports, support for cooperative testing, and fast response to after-sales service

Tens of thousands of models in stock are sufficient, and stocks are shipped quickly. Welcome to consult!

Product Introduction：

Overview
The ABB 5SHY3545L0016 3BHB020720R0002 is an Insulated Gate Commutated Thyristor (IGCT) module designed for power electronics applications. It provides high efficiency and fast switching capabilities, enabling reliable operation in various industrial power control systems, such as motor drives and power converters.

General Information
Brand: ABB
Country of Origin: Switzerland
Type: IGCT Module
Technology: Power electronics, high-speed switching
Mounting: Rack or chassis installation

Power Specifications
Supply Voltage: 24 V DC (typical control voltage)
Power Consumption: Dependent on application
Input: Powered from the control system or external power supply
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power and operational status

Communication & Interface
Ethernet / Fieldbus Port: Not applicable
Bus Coupler Role: Controls and switches high-power signals in power electronics systems
Diagnostics: Fault detection, system monitoring
Operator Interface: LED indicators for status and diagnostics
Reset Features: Manual reset

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for controlled environments)

Dimensions & Weight
Dimensions (L × W × H): 150 × 100 × 40 mm
Weight: 1.5 kg

Original products, ready for immediate pickup.

Complete product information, stable inventory, and support for bulk plan negotiation of reasonable prices.
