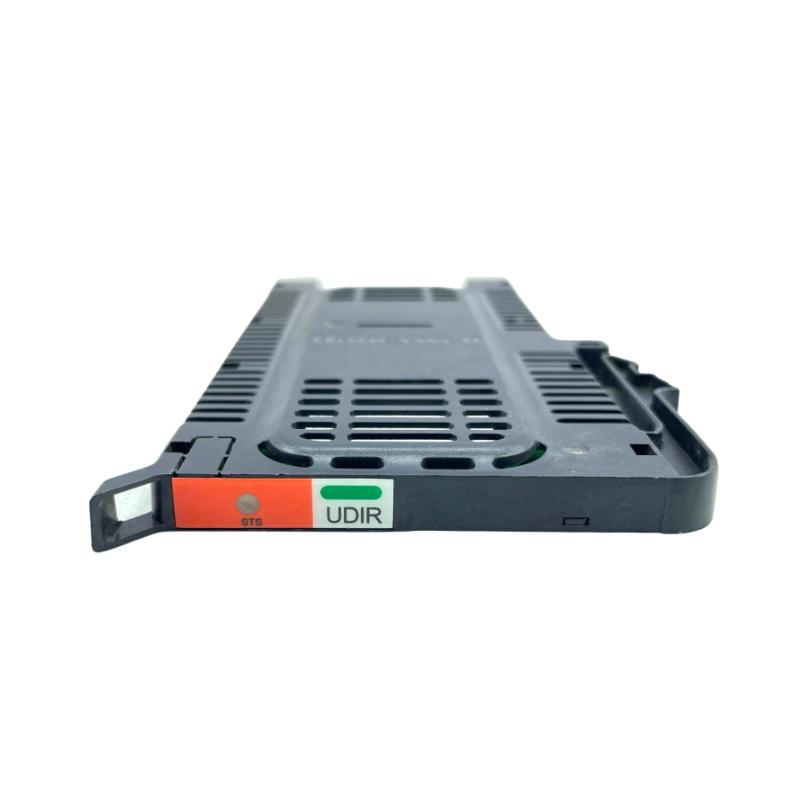

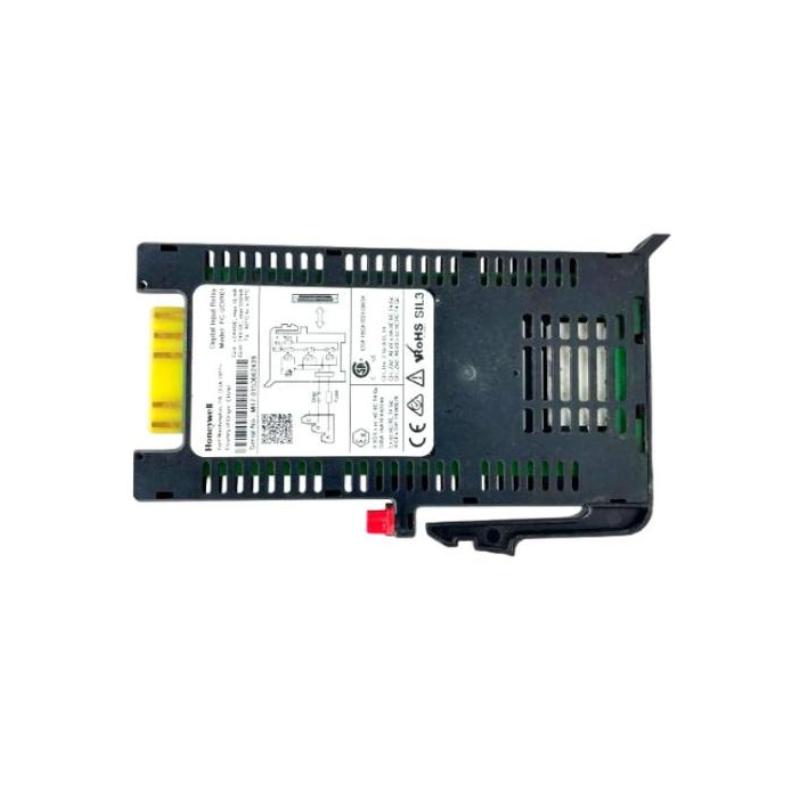

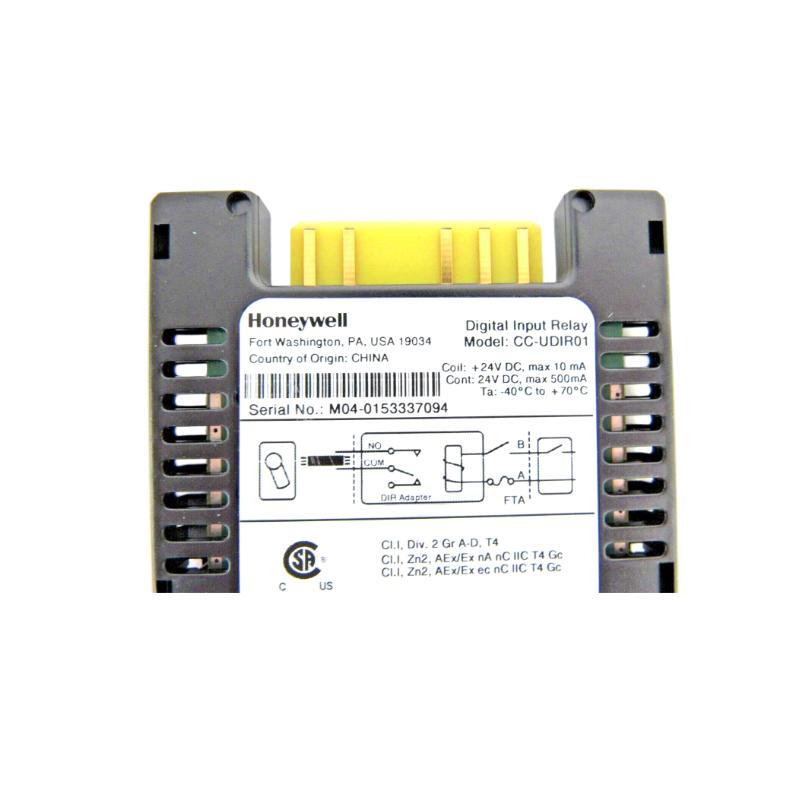

Honeywell CC-UDIR01 | Digital Input Relay Adapter 100% New Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell CC-UDIR01

Product origin：USA

Dimensions:118 × 85.5 × 10 mm

Weight:0.5 kg

This product is imported from overseas, supports test report assistance, and after-sales docking is smooth

There are rich spot models, which support quick docking of procurement needs. Welcome to inquire for details!

Product Introduction：

Overview

The Honeywell CC-UDIR01 is a single-channel relay input adapter designed for low-voltage signal applications. It connects the coil side of a relay to field devices and provides isolated contact signals to the digital input channels without requiring external power.

General Information

Brand: Honeywell
Country of Origin: United States
Model: CC-UDIR01
Type: Digital Input Relay Adapter
Function: Provides isolated relay interface between field devices and DCS digital input points

Power Specifications

Coil Voltage: 24 V DC
Coil Current: Approx. 8 mA
Contact Type: SPDT relay
Maximum Switching Voltage: 24 V DC
Maximum Continuous Current: 500 mA
Isolation: 1500 V AC RMS between coil and contact

Communication & Interface

Interface Type: Digital relay input
Function: Converts relay coil signals into isolated digital inputs for control system logic

Environmental

Operating Temperature: −40 °C to +70 °C
Humidity: 5% to 95% RH, non-condensing
Mounting: Back-plane mount

Dimensions & Weight

Dimensions: 118 × 85.5 × 10 mm
Weight: Approx. 0.5 kg
