Yokogawa ADM11 | 16-Channel Contact Input Module Original 30-Day Returns！

Brand：Yokogawa Electric

Item No.：Yokogawa ADM11

Product origin：Japan

Dimensions:125 x 130 x 248 mm

Weight:0.14 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product Introduction：

Overview

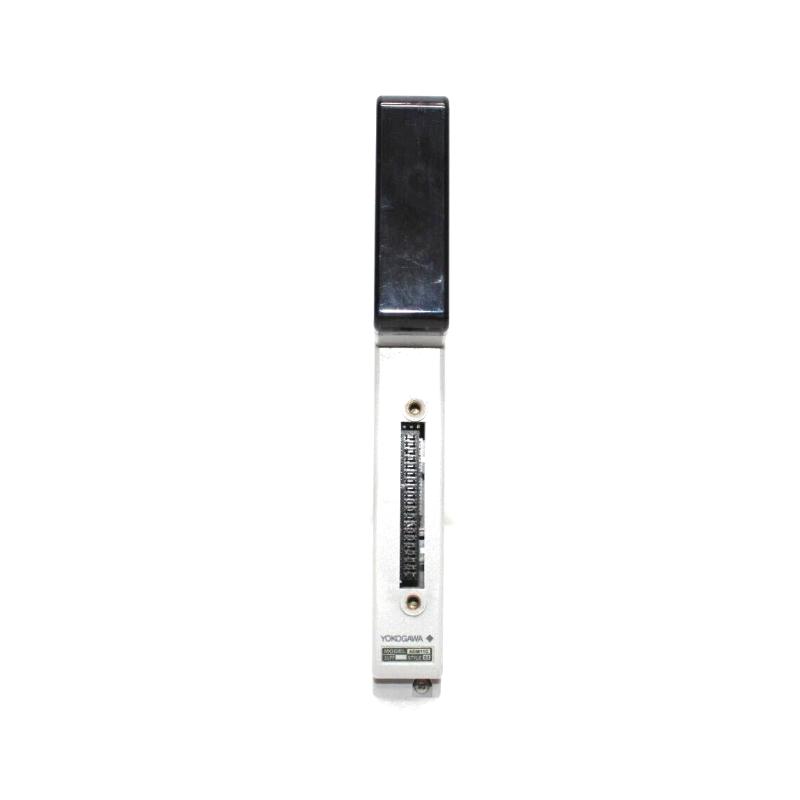

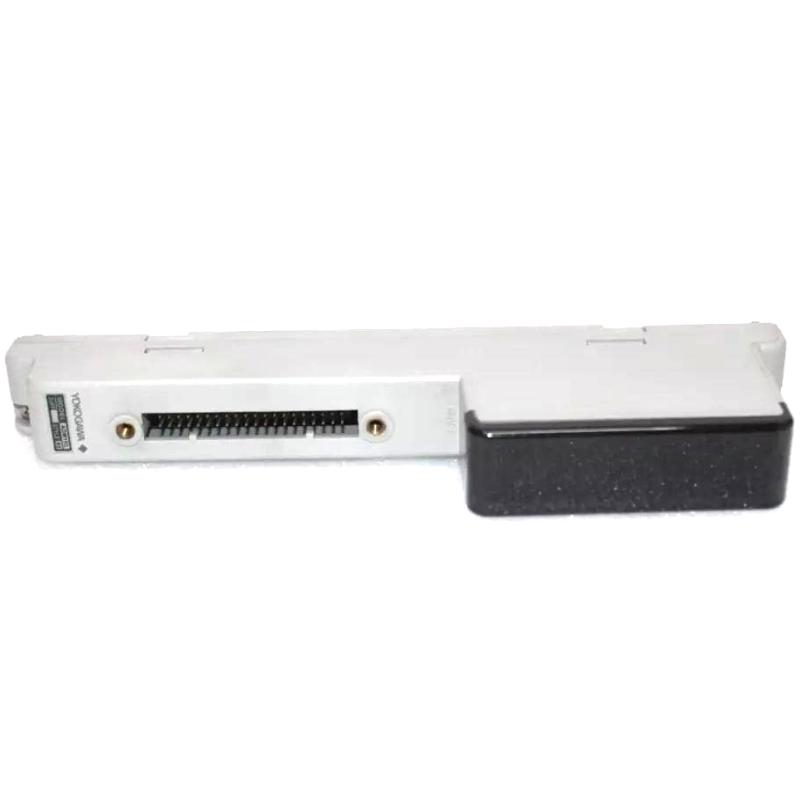

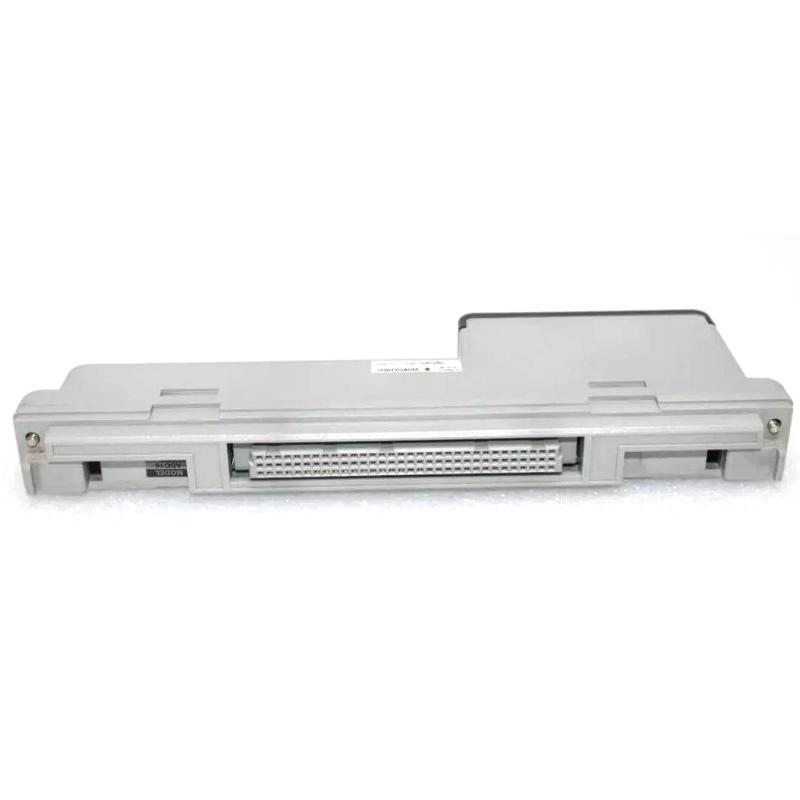

The Yokogawa ADM11 is a 16-channel contact input module designed for use in CENTUM VP and CS 3000 distributed control systems. It provides a reliable interface for monitoring the on/off status of switches, push-buttons, and other discrete contact-type field devices.

General Information

Brand: Yokogawa
Country of Origin: Japan
Model: ADM11
Type: Contact Input Module
Function: Monitors discrete contact input signals and communicates them to the DCS backplane
Channels: 16
Mounting: Rack-mounted in control system

Power Specifications

Supply Voltage: 4–32 V DC
Power Consumption: Low, optimized for industrial control systems
Response Time: ≤ 1 ms for input-signal changes

Communication & Interface

Interface Type: Digital contact inputs
Input Type: Dry or voltage-driven contact inputs (Normally Open or Normally Closed)
Channel Input Sensitivity: Detects low-level signals for reliable sensing of weak contacts
Function: Converts field contact signals into system logic for monitoring and control

Environmental

Operating Temperature: 0 °C to +60 °C
Humidity: 5% to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack system

Dimensions & Weight

Dimensions: 125 x 130 x 248 mm
Weight: 0.14 kg
