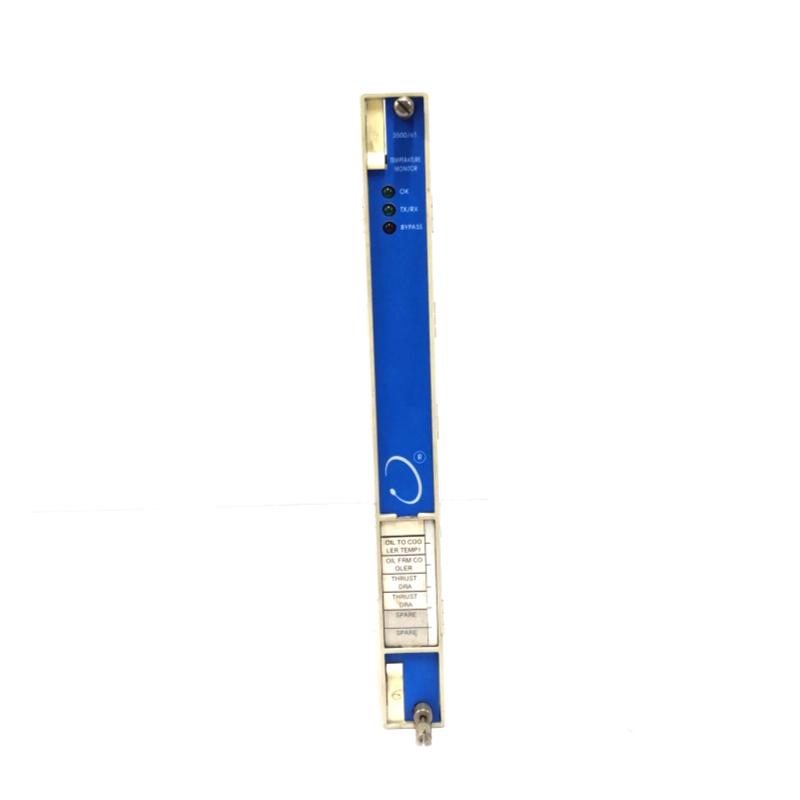

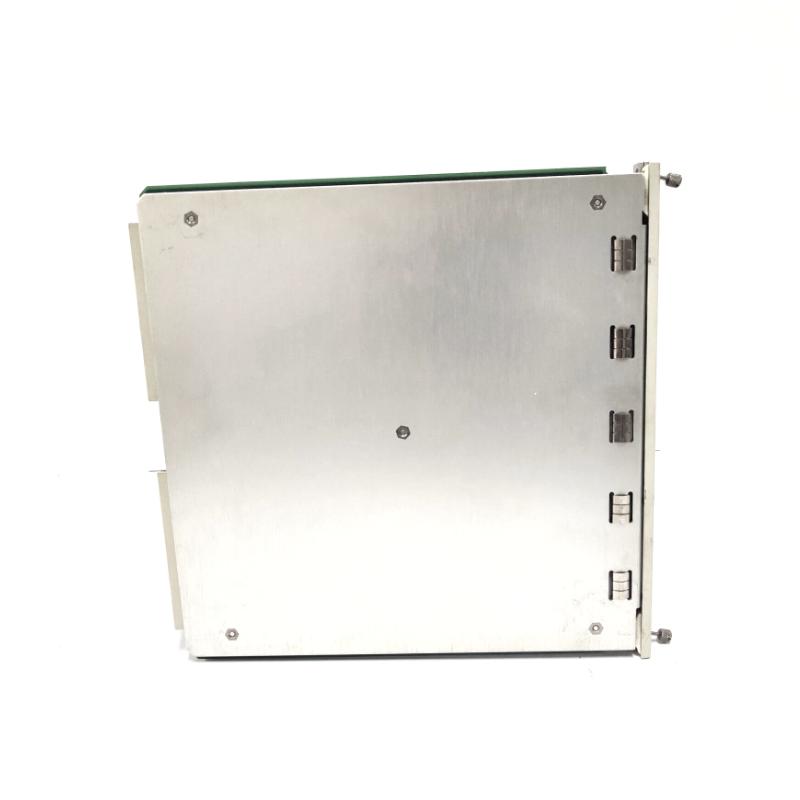

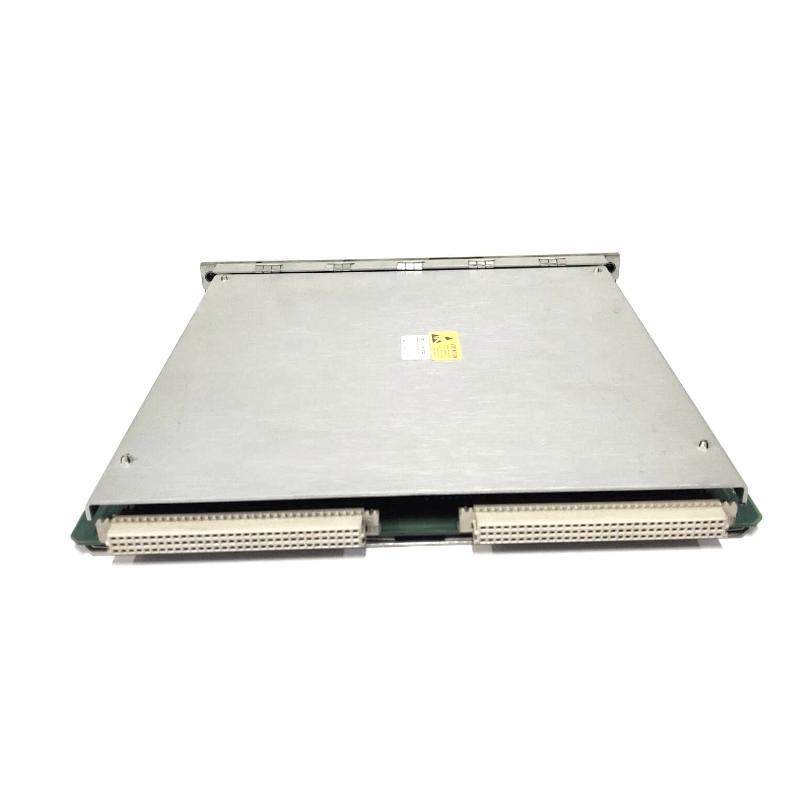

Bently Nevada 3500/61 163179-02+136711-02 | Temperature Monitoring Module Rave reviews Unbelievable Prices!

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/61 163179-02+136711-02

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.91 kg

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The module combination of part 163179‑02 (monitor) together with I/O module 136711‑02 is designed for the Bently Nevada 3500/61 temperature monitoring system. It supports six channels of RTD or thermocouple inputs, provides logic and alarm processing, and works with internal barrier I/O modules.

General Information

Brand: Bently Nevada
Country of Origin: United States
Part Numbers: 163179‑02 (monitor) and 136711‑02 (I/O module with internal barriers and terminations)
Series / Type: 3500/61 Temperature Monitoring Module
Function: Receives temperature sensor signals via I/O module, executes monitoring, alarm logic, and recorder outputs
Mounting: Rack‑mounted module in industrial control system

Power Specifications

Supply Voltage: 24 V DC via rack backplane
Power Consumption: Approximately 9 W typical
Protection: Industrial‑grade protections including reverse polarity and fault handling

Communication & Interface

Interface Type: Monitor module plus I/O module configuration for temperature monitoring
Signal Types: RTD (platinum 100 Ω) or thermocouples depending on I/O module variant
Function: Conditions and routes sensor signals to monitoring logic, compares against setpoints, and outputs alarms and recorder channels

Environmental

Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack

Dimensions & Weight

Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.91 kg

All our inventory is brand new, original, and ready for shipping.

This product has a clear channel, timely delivery, and a reasonable unit price. It supports discounts based on the purchase volume.
