Bently Nevada 3500/61 133827-02 | RTD/TC Temperature I/O Module Original Trusted supplier

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/61 133827-02

Product origin：USA

Dimensions:241.3 × 24.4 × 99.1 mm

Weight:0.45 kg

Supply through formal channels, complete information available, supporting service guarantee

A wide range of models in stock, support for quick connection with procurement needs, welcome to inquire for details!

Product Introduction：

Overview

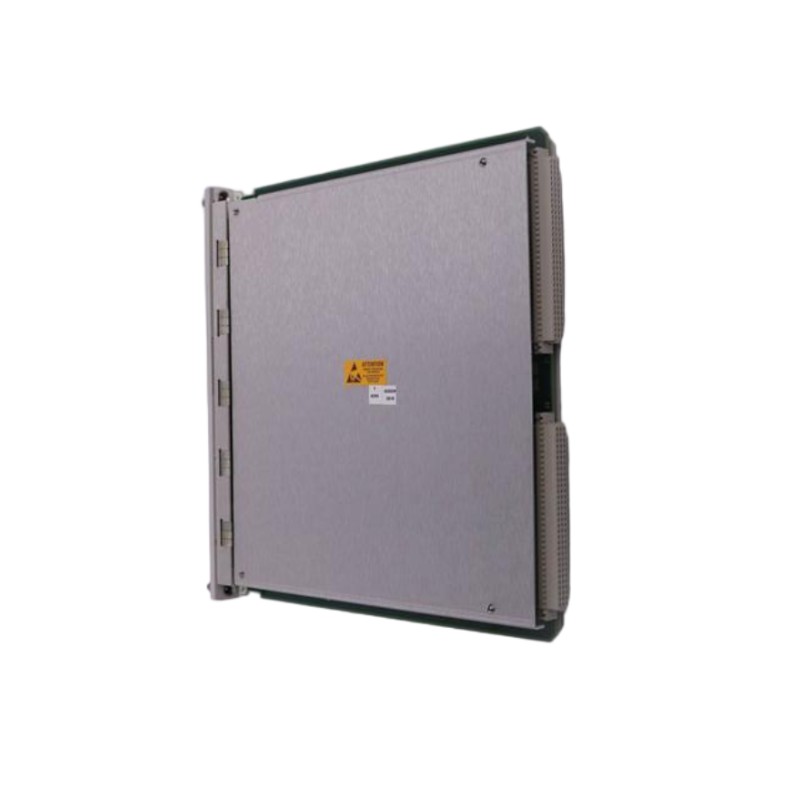

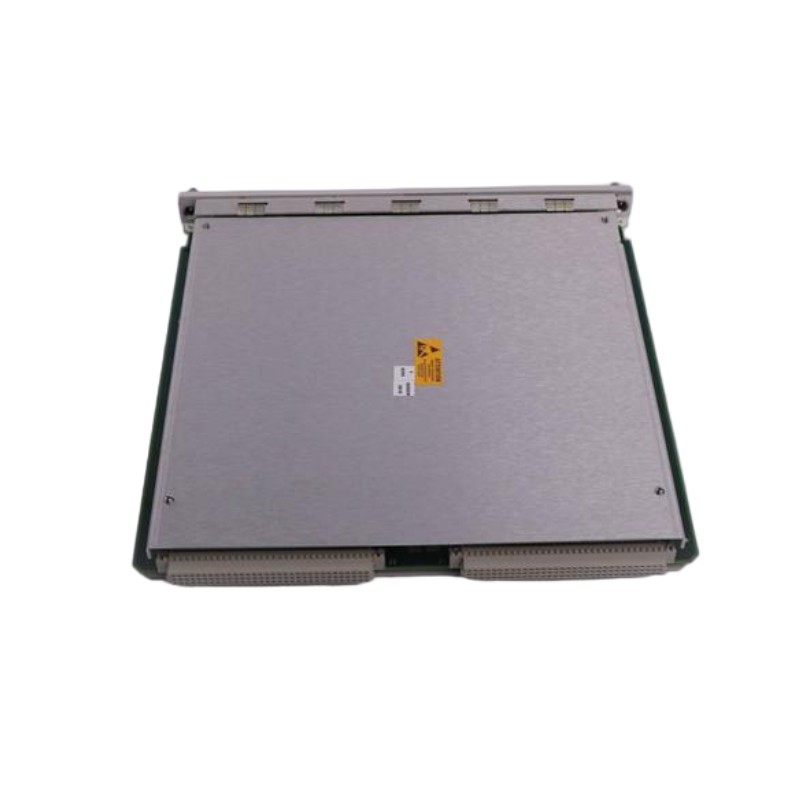

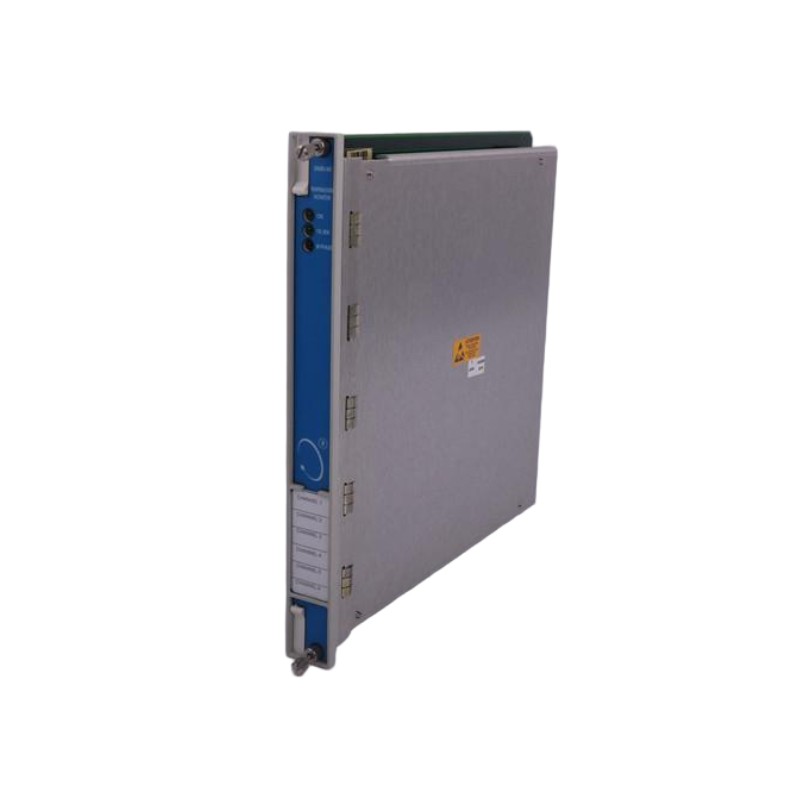

The 3500/61 (part number 133827‑02) is a temperature I/O module from Bently Nevada designed for the 3500 series machinery monitoring system. It supports six channels of RTD or thermocouple inputs with external terminations for field wiring.

General Information

Brand: Bently Nevada
Country of Origin: United States
Part Number: 133827‑02
Series/Type: 3500/61 Temperature I/O Module (RTD/TC non‑isolated, external terminations)
Function: Accepts six RTD or TC inputs and sends data to the monitoring rack
Mounting: Rack‑mounted module in 3500 system

Power Specifications

Supply Voltage: 24 V DC via rack backplane
Power Consumption: Approximately 9 W typical
Protection: Industrial‑grade protections for module use in control environments

Communication & Interface

Interface Type: Six discrete temperature input channels
Signal Types: RTD (platinum 100 Ω) or thermocouple types J, K, E, T
Function: Conditions and routes sensor signals to the main monitor module

Environmental

Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack

Dimensions & Weight

Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.45 kg
