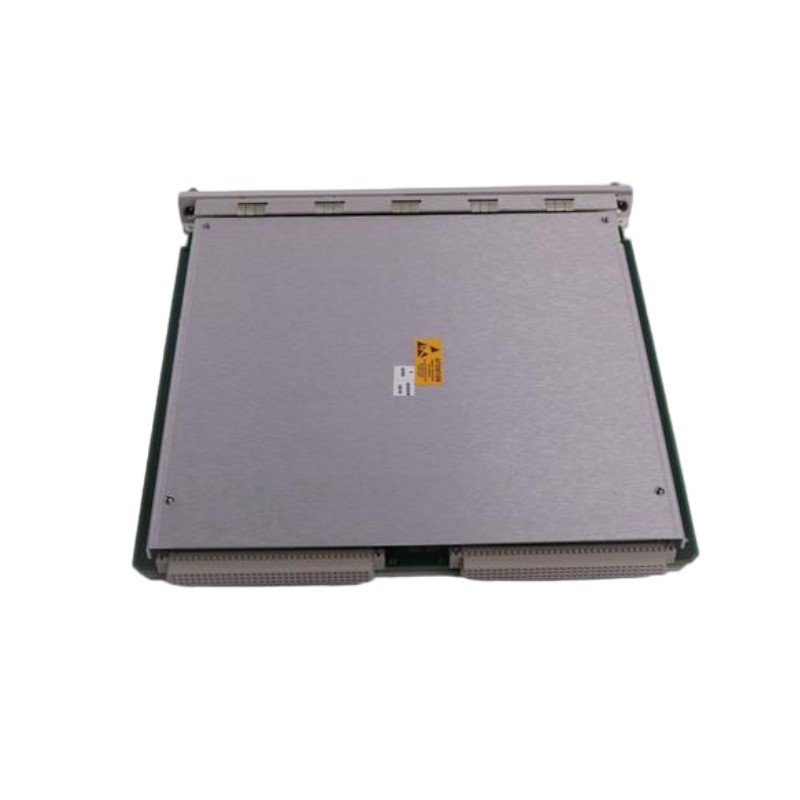

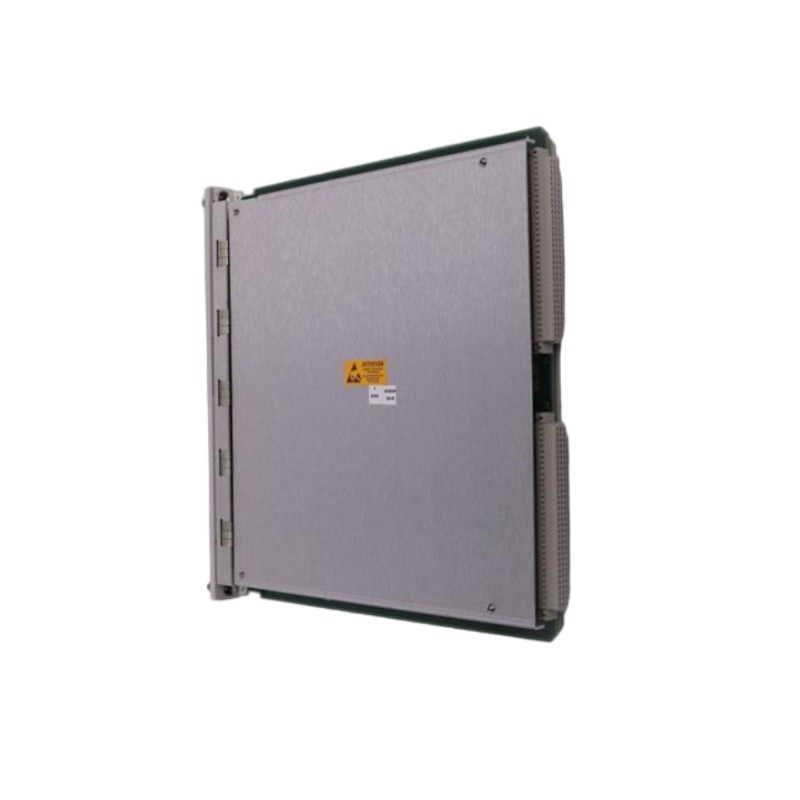

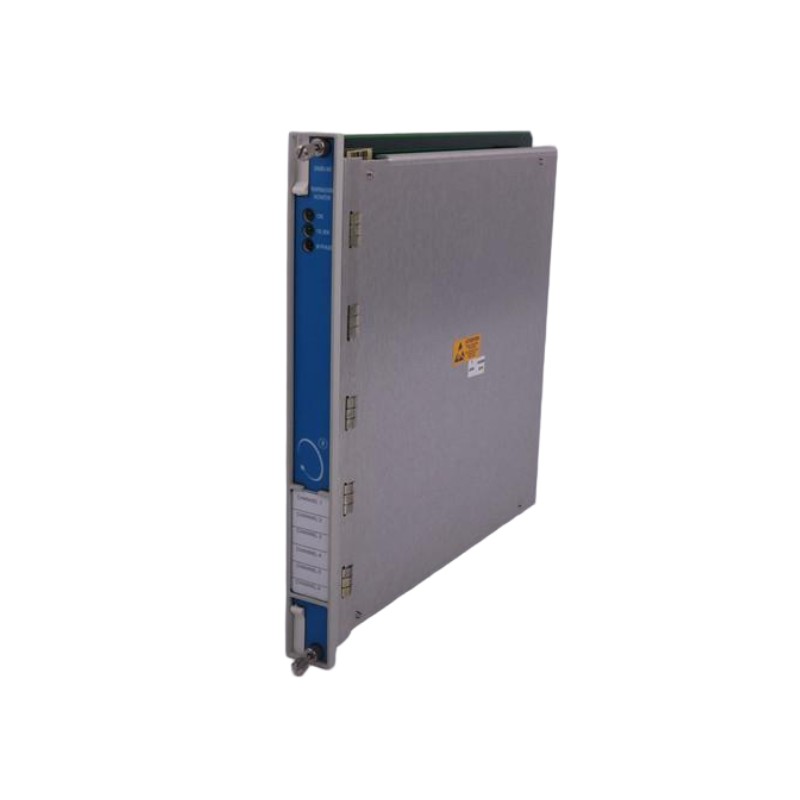

Bently Nevada 3500/61 133811-02 | Temperature Monitoring Module Original Original

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/61 133811-02

Product origin：USA

Dimensions:241.3 × 24.4 × 99.1 mm

Weight:0.2 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview

The Bently Nevada 3500/61 (part number 133811‑02) is a six-channel temperature monitoring module used in machinery protection systems. It accepts RTD and thermocouple inputs to monitor the temperature of critical equipment.

General Information

Brand: Bently Nevada
Country of Origin: United States
Part Number: 133811‑02
Series / Type: 3500/61 Temperature Monitor
Function: Measures temperature on six channels and provides alarm outputs
Mounting: Rack-mounted in industrial control systems

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: Approx. 9 W
Protection: Internal protections for industrial use

Communication & Interface

Interface Type: Six temperature input channels
Signal Type: RTD or thermocouple inputs
Function: Converts sensor signals into system logic and alarm outputs

Environmental

Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack

Dimensions & Weight

Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.20 kg

100% new original stock, contact us anytime for quotation.

Supplied through import channels, fast delivery, and customized pricing for bulk transactions.
