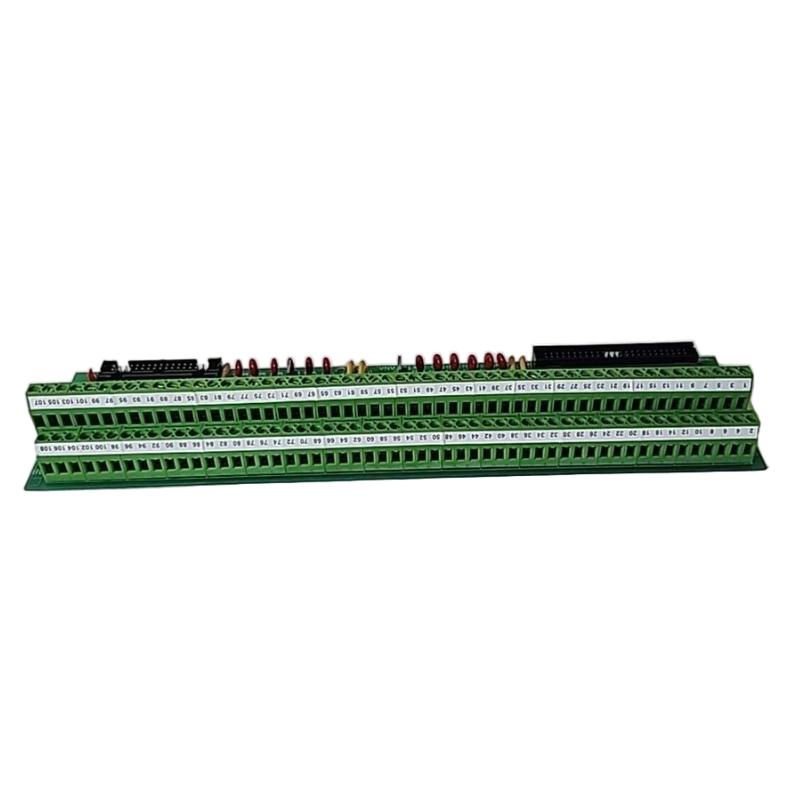

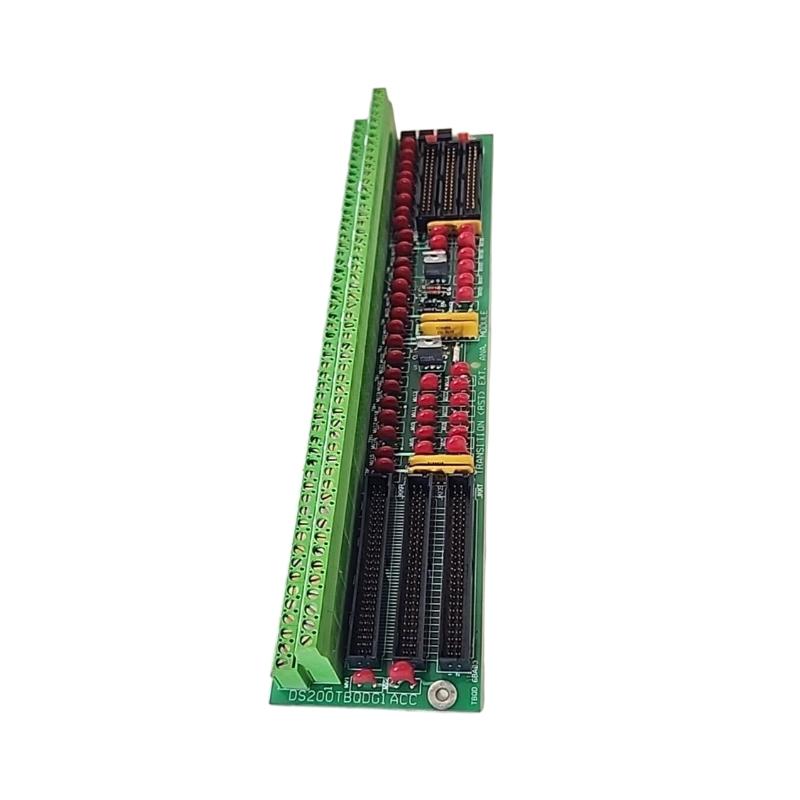

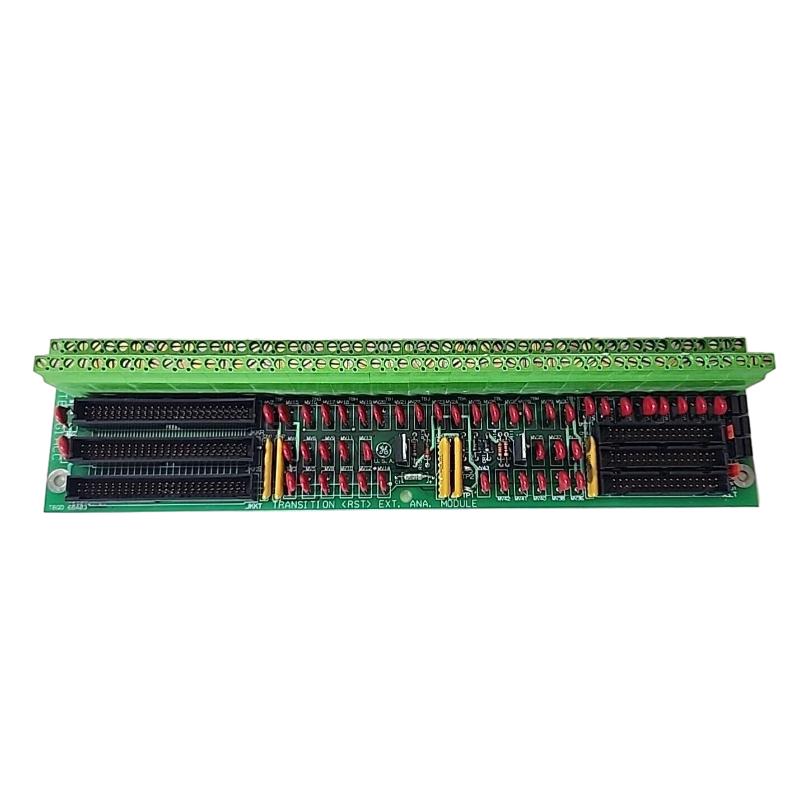

GE DS200TBQDG1ACC | Extension Analog Termination Board Hot Items 100% New

Brand：GE Fanuc PLC

Item No.：GE DS200TBQDG1ACC

Product origin：USA

Dimensions:280 × 75 × 30 mm

Weight:0.29 kg

Formal channels, complete test instructions, and responsive services

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The GE DS200TBQDG1ACC is an extension analog termination board used in the GE Mark V control system. It provides additional termination capacity for analog input and output signals, allowing the system to handle expanded analog wiring beyond the main termination boards.

General Information

Part Number: DS200TBQDG1ACC

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Extension Analog Termination Board

Mounting: Cabinet panel mounting

Technology: Passive PCB with terminal strips, connectors, and protection components

Power Specifications

Supply Voltage: Not required (passive analog board)

Power Consumption: None

Input: Receives analog signal wiring from field devices

Protection: Includes metal-oxide varistors for over-voltage protection

Indicators: None

Communication & Interface

Connectors: Multiple vertical pin connectors for system interconnection

Terminal Strips: Dual terminal strip for screw-type analog wiring

Signal Support: Termination for analog input and output channels

Diagnostics: None

Operator Interface: Terminal strip only

Reset Features: Not applicable

I/O & Channels

Analog Channels: Supports multiple analog input/output terminations

Relay Channels: None

External Load Support: None (signal-level use only)

Environmental

Operating Temperature: Suitable for turbine control cabinet environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard PCB coating

Dimensions & Weight

Dimensions (L × W × H): 280 × 75 × 30 mm

Weight: ~ 0.29 kg
