Product Introduction：

Overview

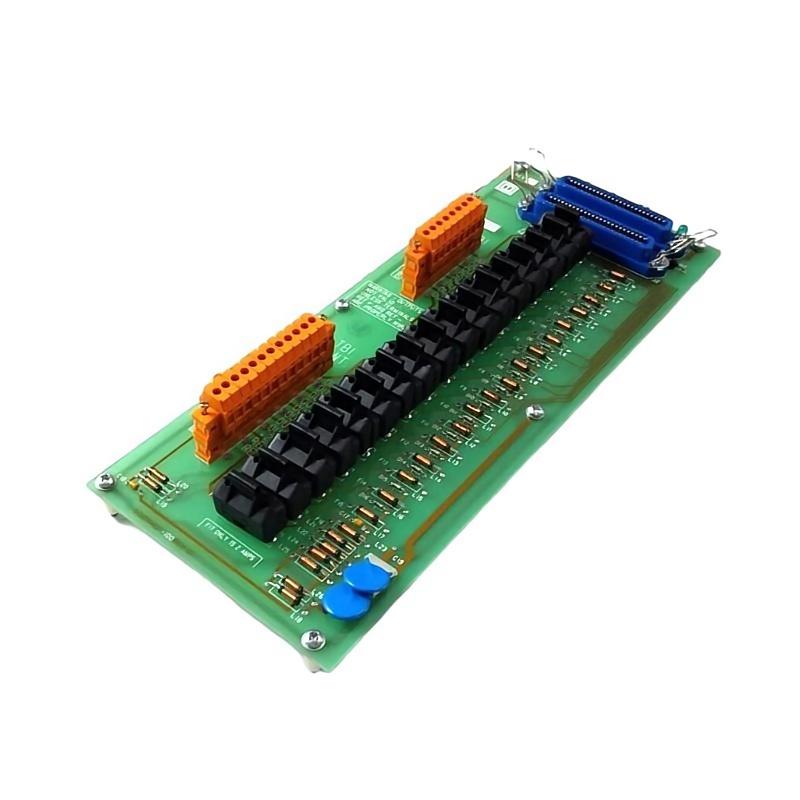

The Honeywell MU‑TDON12 is a non‑isolated digital output field termination assembly designed to interface 24 V DC discrete outputs with a control system. It serves as the connection between the I/O processor and field wiring, enabling efficient signal distribution and monitoring.

General Information
Part Number: 51304446‑100
Brand / Country of Origin: Honeywell / USA
Product Type: Digital Output Field Termination Assembly (FTA)
Channels: 16 non‑isolated output channels at 24 V DC

Power Specifications
Supply Voltage: 24 V DC (nominal)
Output Channels: 16
Load Capacity: Up to approx. 100 mA per channel
Fuse Protection: 0.2 A for each of the 16 channels, and 2 A fuse for group protection

Communication & Interface
Interface Type: Compression‑type terminal blocks for field wiring
Connections: Outputs routed through the FTA to the I/O processor via standard cable
Diagnostics: Basic channel fault indication and compatibility with Honeywell I/O architecture

Environmental
Operating Temperature: −20 °C to +70 °C (typical industrial range)
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in dedicated enclosure

Dimensions & Weight
Dimension: 210 × 125 × 50 mm
Weight: Approx. 0.20 kg
