Product Introduction：

Overview

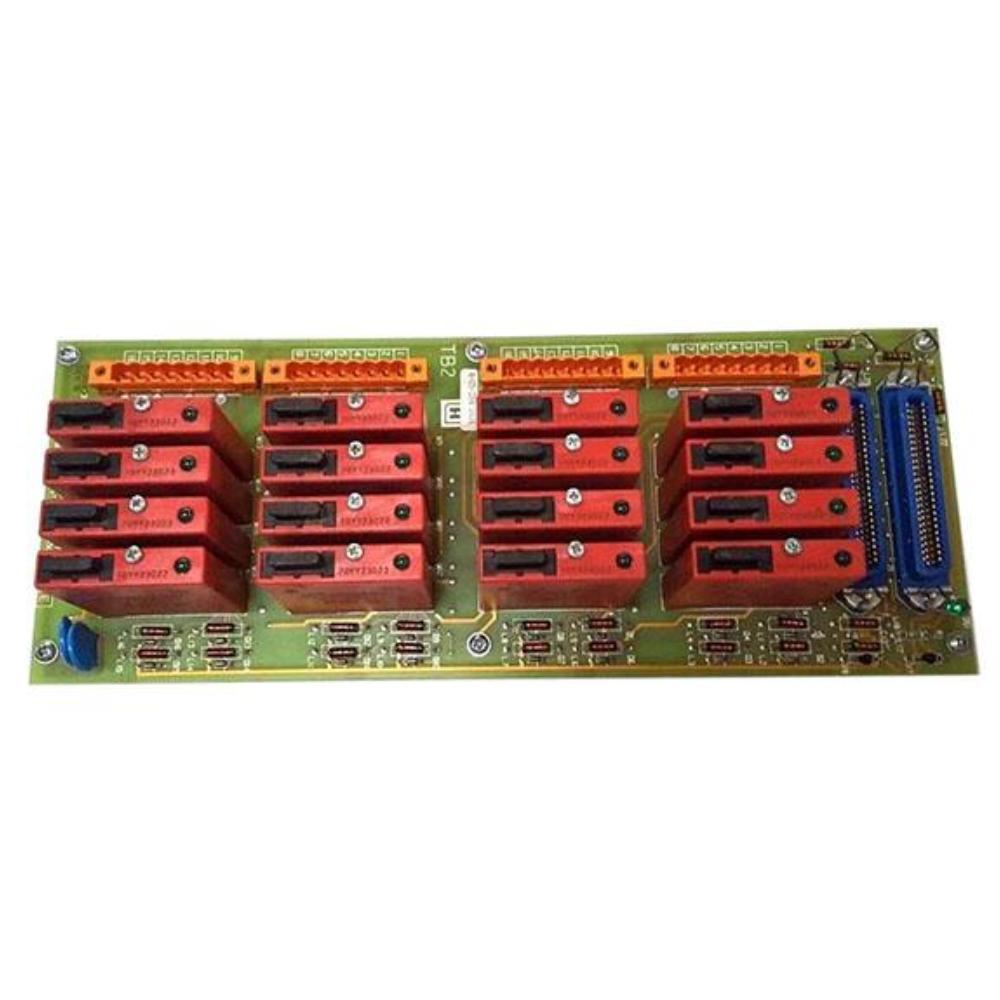

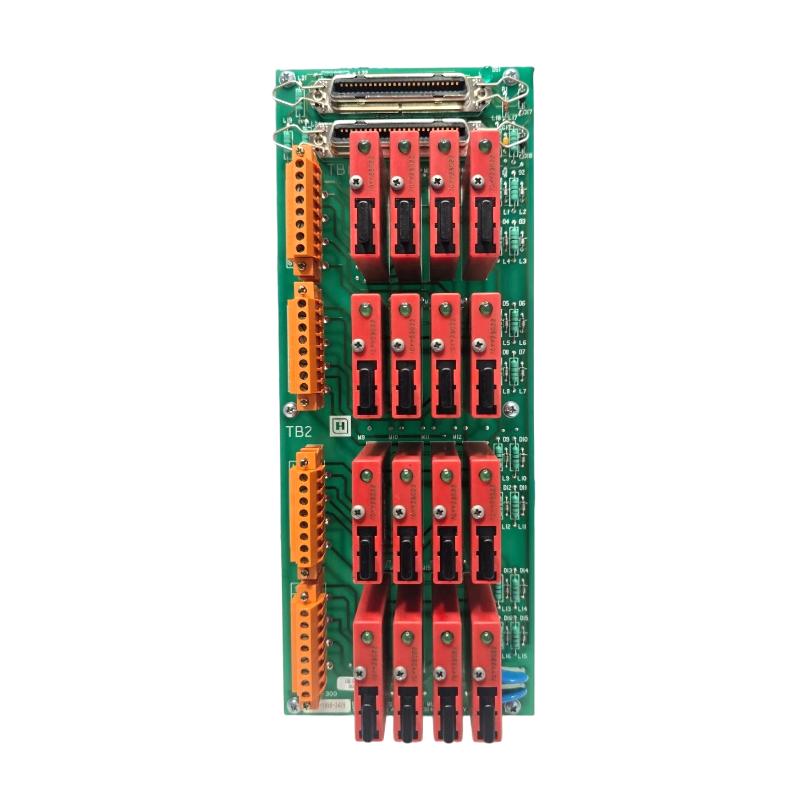

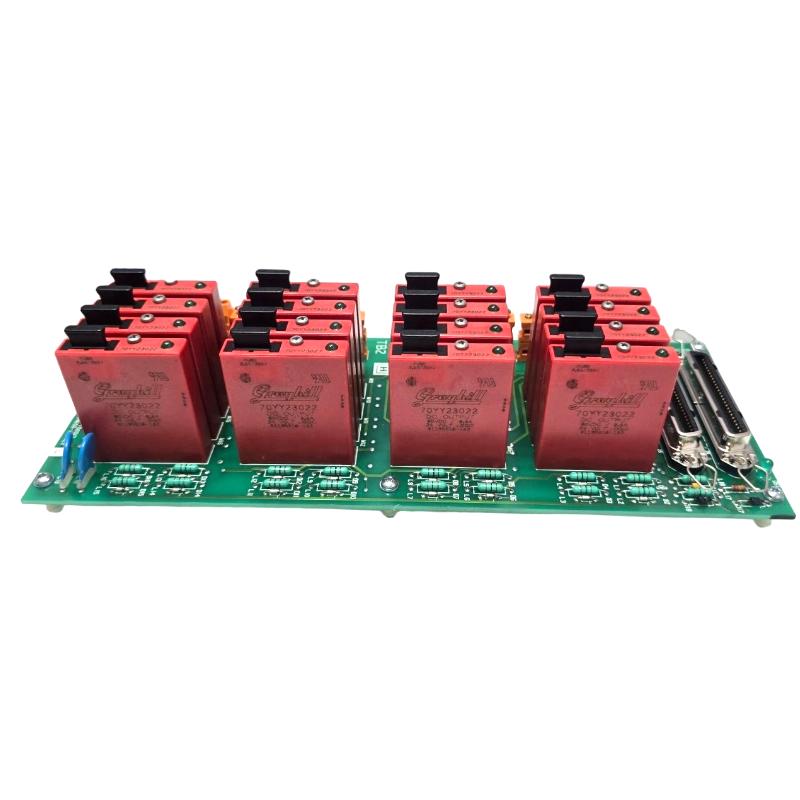

The Honeywell MU‑TDO D13 is a 16‑channel digital output Field Termination Assembly (FTA) supporting 3‑30 V DC solid‑state outputs. It serves as the interface between the control module and field devices, providing optically‑isolated outputs for reliable system performance.

General Information
Part Number: 51304650‑100
Brand / Country of Origin: Honeywell / USA
Product Type: Digital Output Module
Application: Solid‑state output assembly for Honeywell UCN/Experion I/O systems

Power Specifications
Output Voltage Range: 3‑30 V DC
Number of Channels: 16 independent solid‑state outputs
Load Handling: Each channel supports typical industrial loads with integrated optical isolation and fault detection

Communication & Interface
Interface Type: Field termination block connecting to I/O processor via cable or bus
Connections: Screw‑type or compression‑type terminal blocks for field wiring; optically‑isolated outputs that interface with downstream devices
Diagnostics: Per‑channel status feedback and module health indicators

Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in a control panel enclosure

Dimensions & Weight
Dimensions (L × W × H): 250 × 140 × 50 mm
Weight: Approx. 0.20 kg
