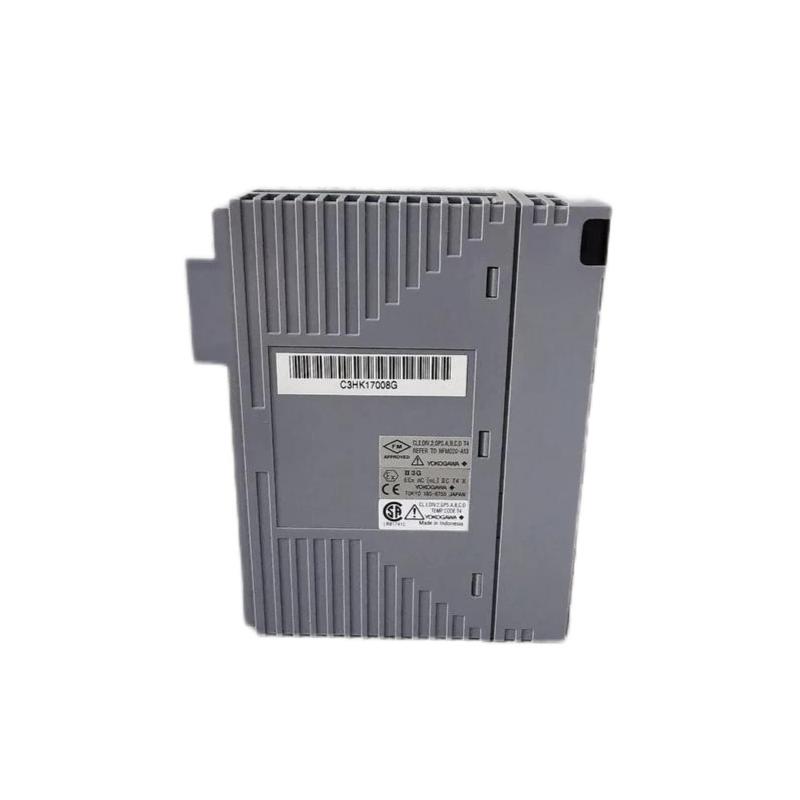

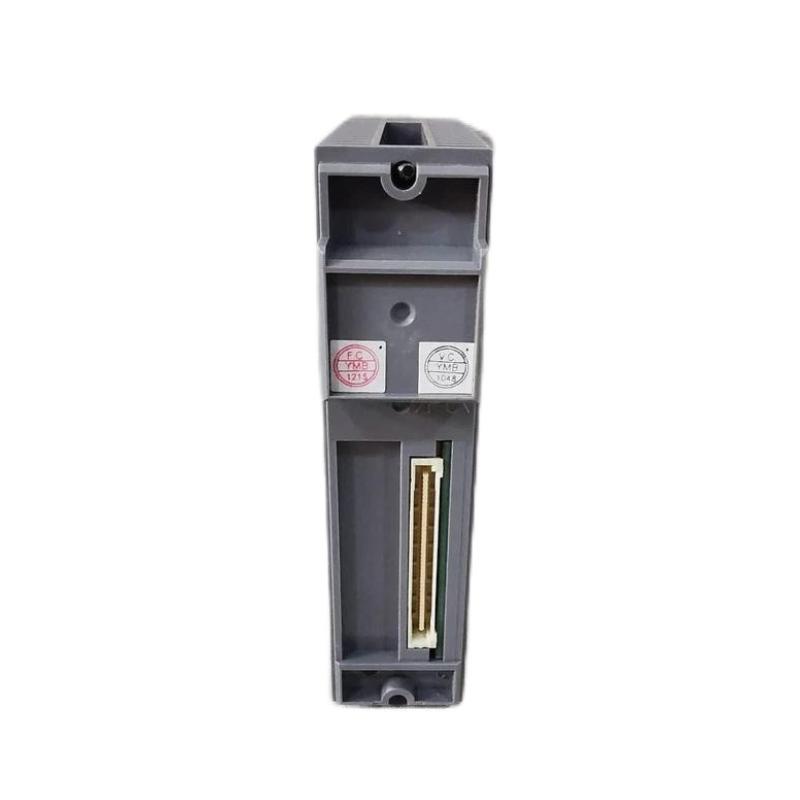

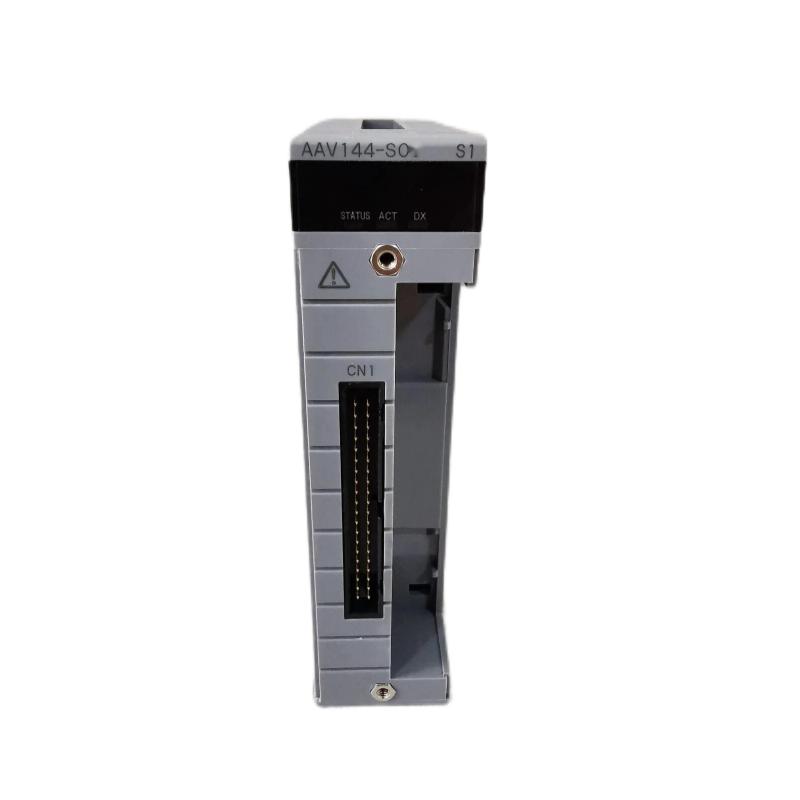

Yokogawa AAV144‑S50 | Analog Input Module Quality Selection Trusted supplier

Brand：Yokogawa Electric

Item No.：Yokogawa AAV144-S50

Product origin：Japan

Dimensions:107.5 × 130 × 32.8 mm

Weight:0.2 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The Yokogawa AAV144‑S50 is a 16‑channel isolated analog input module designed to handle signals in the ±10 V or 1–5 V range. It is built for precise signal acquisition in demanding industrial environments.

General Information
Part Number: AAV144‑S50
Brand / Country of Origin: Yokogawa / Japan
Product Type: Analog Input Module
Series: AAV144

Power Specifications
Supply Voltage: Powered via system rack backplane
Input Signal Types: Voltage inputs (1–5 V or –10 to +10 V)
Channel Isolation: 1 500 V AC isolation between input channels and system
Typical Current Consumption: Up to approx. 500 mA at 5 V DC

Communication & Interface
Interface Type: Rack‑mounted module compatible with Yokogawa I/O architecture
Input Channels: 16 independent isolated channels
Diagnostics: Supports channel‑level fault detection and status monitoring

Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when mounted in cabinet

Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: Approx. 0.20 kg

We guarantee all items are new and unused, backed by 24-hour service.

Quick response to product supply, quotations support multi-level stratification, and adapt to the rhythm of bulk purchases.
